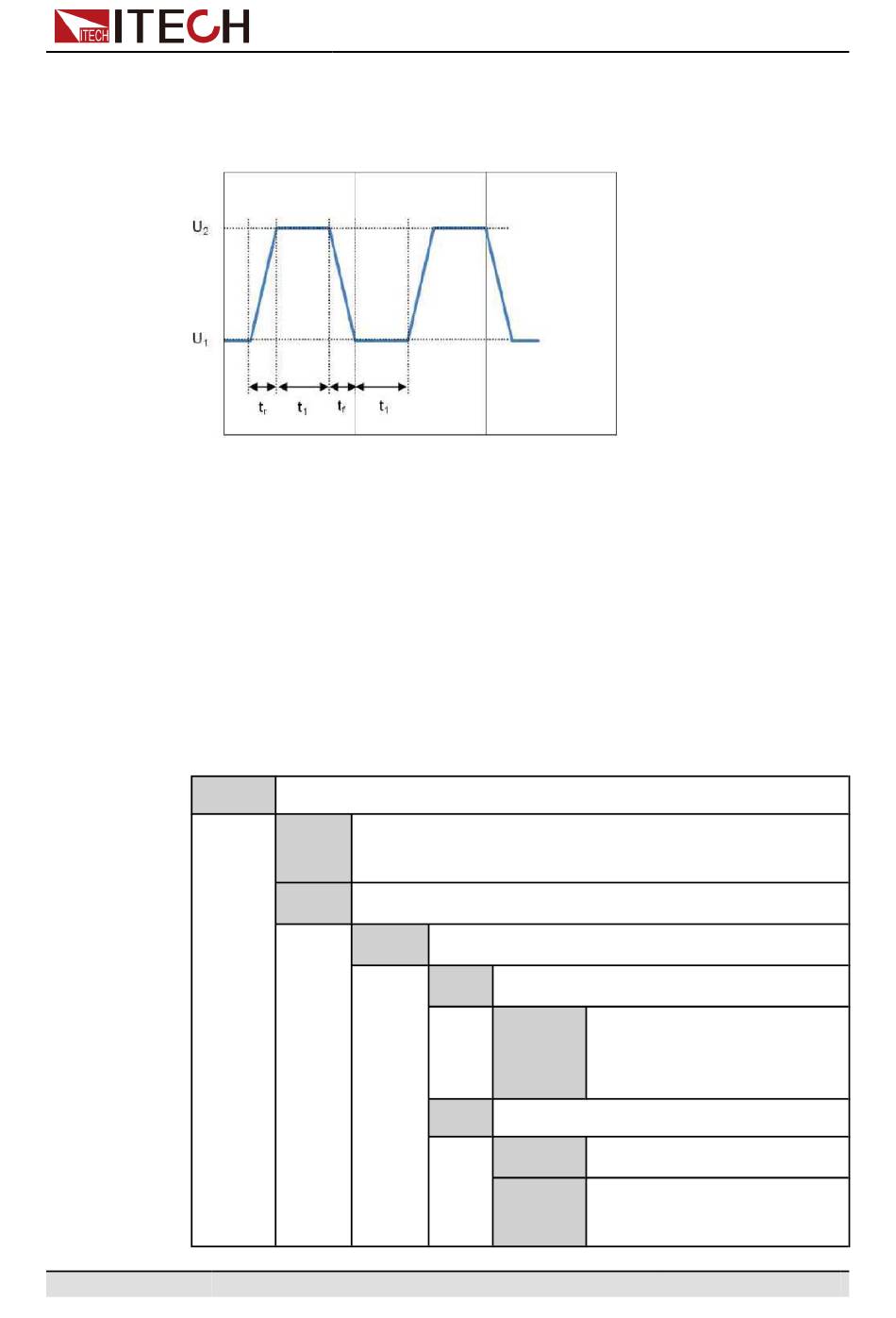

E-12 Voltage Curve with Intelligent Generator Control
The behavior of the electric system when intelligent generator controls are used
is simulated.

4.6.4 Solar Photovoltaic Curve Simulation Function (SAS)

The IT6000C series power supply provides the maximum power point tracking
(MPPT) mechanism built-in, and it is very important to test the efficiency of this
MPPT. The PV array/module/cell is a device that converts from light energy to
electric energy. It is made by a simple semiconductor PN junction that the major
output characteristic is that there's only one maximum power point (MPP) at cer-
tain sunlight intensity. The PV inverter is designed to track this point to harvest
maximum energy that is generated by the PV array. SAS function menu is as
follows:
SAS SAS function menu
Run Indicates to enter the SAS function mode and wait for the
trigger to run the currently selected PV curve file.
Static Static PV curve setting.
Curve Open or edit a fixed format PV curve.
Open Select a fixed format PV curve.
Edit
Copyright © Itech Electronic Co., Ltd.
Power Supply Function
Recall Set the name of the PV curve
Inner file and recall the PV file
Sas File stored inside the instrument.
Edit a fixed format PV curve.
Pmp Set the maximum power.
Vmp Set the maximum power
voltage.
103
