Page 13: Quick Reference

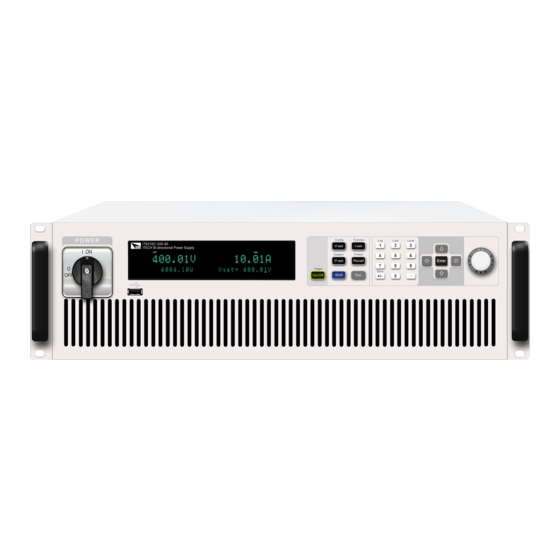

♦ Options Introduction 1.1 Brief Introduction The IT6000C series Bi-directional Programmable DC Power Supply supports a variety of output capabilities to satisfy different test requirement such as high current and low voltage or high voltage and low current. Meanwhile, units of the same model can be run in parallel to deliver stronger output capacity.
Page 14 When the Sense function is turned on, it can ensure that the DUT is safe in case of reverse connection or open circuit of the Sense line. The IT6000C series was designed to allow paralleling of multiple units to cre- ate larger power systems. Expandable in master and slave parallel Up to 1152kW.
Page 15 The current and power input capacity is same as the output capacity. For example, the maximum rated value of the output power of the IT6018C- 500-90 model is 18,000W, and the maximum rated value of input power is al- so 18,000W. Copyright © Itech Electronic Co., Ltd.
Page 16: Front-Panel Overview
Quick Reference 1.2 Front-Panel Overview For the IT6000C series Bi-directional Programmable DC Power Supply, all front panels of the 3U model are the same, and the operation panels of other models are the same as those of the 3U model. The following is the front panel sche- matic of the 3U model.
Page 17 Positive and negative signs Decimal point Left / Right The left and right navigation keys are used to adjust the cur- navigation sor to the specified position or scrolls pages to view menu keys items. Copyright © Itech Electronic Co., Ltd.
Page 18 [Shift]+[1] (Log) Enter the data logging function menu. [Shift]+[2] (Lock) Turn the keyboard lock on or off. [Shift]+[3] (Local) Switch remote control mode to local control mode. [Shift]+[+/–] Save the common parameter settings. (Save) Copyright © Itech Electronic Co., Ltd.
Page 19: Push-On Knob
[Enter] key to confirm the operation. 1.5 Rear Panel Introduction The rear panel of the 3U model of the IT6000C series Bi-directional Program- mable DC Power Supply (after removing the protective cover) is shown below. The rear panel of the 6U model is the same as the 3U model.
Page 20 10. Communication interface of outer ring optical fiber (TX and RX) This interface is used for the parallel connection between the masters (with operation panel) for the communication of units in parallel. Copyright © Itech Electronic Co., Ltd.
Page 21: Vfd Indicator Lamps Description
11. AC power input terminals (L1, L2, L3, and PE) 12. Chassis ground terminal 1.6 VFD Indicator Lamps Description The IT6000C series Bi-directional Programmable DC Power Supply VFD indica- tor lamps description is as follows: Table 1–1 VFD Indicator Lamps Description...
Page 22: Configuration Menu Function
Quick Reference 1.7 Configuration Menu Function This section gives an overview of the configuration menu of the IT6000C series power supply. The procedures to operate the configuration menu are as follows. 1. Press the composite keys [Shift]+[V-set] (Config) on the front panel to enter the configuration menu.
Page 23: System Menu Function
1.8 System Menu Function This Chapter offers a general introduction of system menus, allowing users to have a preliminary understanding of system functions of this IT6000C series. The steps of the system menu function are as follows: 1. Press the composite keys [Shift]+[P-set] (System) on the front panel to en- ter the system menu.
Page 24 Set the trigger method for the data logging. Immediate Trigger immediately Manual trigger Manual Bus trigger Voltage Voltage trigger Current trigger Current External trigger External Set the communication information between instrument and PC. USB communication interface USB-TMC protocol Copyright © Itech Electronic Co., Ltd.
Page 25 Manual: manually configure the address of the instrument. • IP: 0.0.0.0 Set the IP address. • Mask: 0.0.0.0 Set the subnet mask. • Gateway: 0.0.0.0 Set the gateway address. Copyright © Itech Electronic Co., Ltd.
Page 26 Raw-socket: Raw-socket serv- ice state. • • Select whether to reset the LAN to the de- fault settings or not. Restore • • Select whether to confirm the LAN setting or not. Reset • Copyright © Itech Electronic Co., Ltd.
Page 27 Function setting of pin 2 IO-2. Ps, Not-Invert IO-3. Off-Status, Not- Function setting of pin 3 Invert IO-4. Ext-Trig, Not- Function setting of pin 4 Invert IO-5. INH-Living, Not- Function setting of pin 5 Invert Copyright © Itech Electronic Co., Ltd.
Page 28: Options Introduction
5.14 View the System In- System Info formation (System Info). 1.9 Options Introduction The IT6000C series Bi-directional Programmable DC Power Supply supports the following types of optional accessories (sold separately), the details are as below: • Optional interface card – IT-E166: Interface card for GPIB communication. When users need to use GPIB communication, they can choose to purchase this accessory.
Page 29 The fiber optic module and cable are the necessary accessories for the parallel connection. Different numbers of fiber optic modules and cables are used in different numbers of parallels. Copyright © Itech Electronic Co., Ltd.
Page 30 • IT-E165B: Anti electromotive force module It is suitable for motor products, which can prevent the electromotive force generated during the operation of the motor from damaging the power sup- ply products. Copyright © Itech Electronic Co., Ltd.
Page 31: Inspection And Installation
Transportation If you need to transport non-cabinet products, you must pay attention to the fol- lowing to ensure the safety of equipment and personnel. Copyright © Itech Electronic Co., Ltd.
Page 32 After unpacking the cabinet product, if you need to move it to other places, you must pay attention to the following matters to ensure the safety of equipment and personnel. Copyright © Itech Electronic Co., Ltd.
Page 33 • ITECH 27U and 37U cabinets are equipped with hoisting rings as standard on the top. It is recommended to use a crane equipped with a four-leg hoisting belt structure for horizontal hoisting and moving, and ensure that the four hoisting belts are the same length to avoid cabinet skew during movement.
Page 34: Verifying The Shipment
Upon verification of the shipment, keep the package and relevant contents thereof in a safe place. When returning the instrument for warranty service or repair, the specified packing requirements shall be met. Copyright © Itech Electronic Co., Ltd.
Page 35: Instrument Size Introduction
2.3 Instrument Size Introduction The instrument should be installed at well-ventilated and rational-sized space. Please select appropriate space for installation based on the instrument size. The detailed dimension drawings of the IT6000C series are as follows (unit: mm, deviation: ±1 mm): 3U Models...
Page 36: Connecting The Power Cord
Inspection and Installation 3U Slave Models 2.4 Connecting the Power Cord Precautions To prevent electric shock and damage to the instrument, observe the following precautions. Copyright © Itech Electronic Co., Ltd.
Page 37 Categories of Power Cords The standard power cord specifications for this series of 3U instruments are div- ided into the following types according to different regions: Copyright © Itech Electronic Co., Ltd.
Page 38 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. The instrument which rated power less than 15kW consumes different current on the three phases. Take the 5kW instrument for example, the rated AC current Copyright © Itech Electronic Co., Ltd.
Page 39 15kW to AC distribution box, For single unit, it requires three phases of a three-phase AC distribution box. In case multiple units are connected to the same main AC distribution box. It is recommended to follow the suggestion connection diagram as below. Copyright © Itech Electronic Co., Ltd.
Page 40 Operation procedures: • For 3U model (rated power less than or equal to 18kW), see the steps below to connect the power cable. Copyright © Itech Electronic Co., Ltd.
Page 41 The yellow-green wire is grounding wire, which is connected to the protective grounding terminal (PE). 5. Install the panel back in place. 6. Refer to the suggestion connection diagram, connect the other end of the power cable to the required AC distribution box. Copyright © Itech Electronic Co., Ltd.
Page 42: Connecting The Device Under Test (Dut)
2.5 Connecting the Device Under Test (DUT) This section describes how to connect the test cables between the instrument and DUT. Precautions To prevent electric shock and damage to the instrument, observe the following precautions. Copyright © Itech Electronic Co., Ltd.
Page 43 Provision must be made to disconnect the external energy source before touching the output or sense terminals. • Always use test cables provided by ITECH to connect the equip- ment. If test cables from other factories are used, please confirm the maximum current that the test cables can withstand.
Page 44 The protective case can completely seal the electrode, and the safety is better. 6U models and cabinet models are not involved in this change. The appearance and detailed size information of the protective case are as follows: Copyright © Itech Electronic Co., Ltd.
Page 45 (such as the European terminal), and fasten the matching screw with an in- sulating nut. If desired, a set of washers can be added between the insulating screw and the electrode. The installation is completed as shown in the figure below. Copyright © Itech Electronic Co., Ltd.
Page 46 6. Connect the other end of the red and black cables to the DUT. The positive and negative poles must be properly connected and fastened when wiring. Connecting the DUT (Remote Sensing) Remote measurement is available for the following scenarios: Copyright © Itech Electronic Co., Ltd.
Page 47 DUT to ensure the safe grounding. For the location information, see 1.5 Rear Panel Introduction. 7. Connect the other end of the remote sense cables to the DUT. Copyright © Itech Electronic Co., Ltd.
Page 48: Remote Interface Connection
• VCP: Virtual serial port. For Win7 system, you can download IT6000 VCP driver from ITECH official website or contact technical support engineer; for Win10 system, you do not need to install VCP driver. The operation steps to change the USB interface type in System Menu are as follows.
Page 49: Lan Interface
They are typically large, centrally-managed networks with services such as DHCP and DNS servers. When connected to a computer, a network cable can be used to connect to the router, and the computer is also con- nected to the router. Copyright © Itech Electronic Co., Ltd.
Page 50 1.8 System Menu Function for details. Configure LAN Interface Information The configurable parameters of the IT6000C series power supply are described as follows. IP-Conf • IP: This value is the Internet Protocol (IP) address of the instrument. An IP address is required for all IP and TCP/IP communications with the instru- ment.
Page 51 Conf. • Serv-Conf 1. Press the composite keys [Shift]+[P-set] (System) on the front panel to enter the system menu. 2. Rotate the knob or press the Up/Down key to select I/O and press [Enter]. Copyright © Itech Electronic Co., Ltd.
Page 52 The format of the address entered in the address bar of the browser is http:// 192.168.0.100. The specific IP address is subject to the actual instrument settings. The opened page is displayed as follows: Copyright © Itech Electronic Co., Ltd.
Page 53 This page allows you to monitor and control the instrument; • LAN Configuration: Reconfigure the LAN parameters; • Manual: Go to the ITECH official website and view or download the relevant documents. • Upload: Performs a system upgrade. Click CONNECT to connect the PC with the instrument, then click Select File to select the system upgrade installation package (for example, itech_6000_P.itech), and then click UPLOAD performs the upgrade op-...
Page 54: Can Interface
Inspection and Installation ITECH instruments have SCPI socket services, which can be used to send and receive SCPI commands, queries, and query responses. All commands must be terminated with a newline for the message to be parsed. All query responses will also be terminated with a newline.
Page 55: Gpib Interface (Optional)
The GPIB (IEEE-488) interface is assembled in the IT-E166 communication board. Use a GPIB cable to connect GPIB interfaces of the instrument and PC. Please ensure that the screws have been screwed down in order to have a full connection. Copyright © Itech Electronic Co., Ltd.
Page 56: Interface (Optional)
The definition of RS-232 pins are as follows. When using the RS-232 interface for communication, connect the pin 1, pin 2, and pin 3 of the IT-E167 to the PC. The pin description is as follows: Copyright © Itech Electronic Co., Ltd.
Page 57 The options are: N (no parity), O (odd parity), E (even parity). Stop bit The options are: 1/2 RS-232 Troubleshooting If you meet some problems when communicating with PC by RS-232 interface, please check the following items: Copyright © Itech Electronic Co., Ltd.
Page 58 Make sure the correct cable and adapter are connected. Note that internal wiring may not be correct even if the cable has a suitable plug; • The cable must be connected to the correct serial ports (COM1, COM2, etc) of PC. Copyright © Itech Electronic Co., Ltd.
Page 59: Getting Started
When you turn the POWER switch on for the first time after purchase, the instru- ment starts with its factory default settings. Each time thereafter, the instrument starts according to the setting that you selected as outlined in 5.6 Set the Power-on State (PowerOn). Copyright © Itech Electronic Co., Ltd.
Page 60 Removing the power cord will disconnect AC input power to the unit. Power Switch Introduction User can adjust the power switch directly to turn on or turn off the instrument. The status of Power switch is as follows. Copyright © Itech Electronic Co., Ltd.
Page 61 2. After the instrument is self-tested normally, the VFD shows the output volt- age, current, power and other information (CV mode). If an error occurs during the self-test, an error message is displayed. The follow- ing table lists the error messages you might see. Copyright © Itech Electronic Co., Ltd.
Page 62 2. Check whether the power cord is correctly connected and confirm whether the instrument is powered. 3. Check whether the power in On. The power switch is under “|” On status. Copyright © Itech Electronic Co., Ltd.
Page 63: Set Output Value
Single mode, then power off and restart. Then consult ITECH technical support engineers for the parallel setting method in this case. 6. If the instrument still does not start, contact ITECH technical support engineer. 3.2 Set Output Value The voltage value, current value, power value can all be programmed.
Page 64: Use The Front Panel Menu
When the number in front of the menu item is blinking, indicates this item is selected currently. Press [Enter] key to enter the selected menu item and press [Esc] to exit the menu. Copyright © Itech Electronic Co., Ltd.
Page 65: On/Off Control
DUT. If the power supply has no output after the output is turned on, check the voltage and current setting value, set the voltage and current to a non-zero value, and then turn on the output. Copyright © Itech Electronic Co., Ltd.
Page 66: Power Supply Function
When [I-set] key is pressed, the key light is lit and the output current value can be set. Press numeric keys or rotate the knob to adjust the value in the current setting area indicated by the cursor. This value takes effect when you press [Enter]. Copyright © Itech Electronic Co., Ltd.
Page 67: Set The Output Power
Do not use CV priority mode with low-impedance sources such as batteries, power supplies, or large charged capacitors. Copyright © Itech Electronic Co., Ltd.
Page 68 1500V -Imax 7.5V 0.5% 2250V -Imax 11.25V 0.5% *The data in the above table is the actual measurement of Main Version V00.006.011 and above. For other version of the firmware, contact ITECH technical support. Copyright © Itech Electronic Co., Ltd.
Page 69 CC priority operating locus of the output. The area in the white quadrants shows the output as a source (sourcing power). The area in the shaded quadrants shows the output as a load (sinking power). Copyright © Itech Electronic Co., Ltd.
Page 70 0.5% *The data in the above table is the actual measurement of Main Version V00.006.011 and above. For other version of the firmware, contact ITECH technical support. The heavy solid line illustrates the locus of possible operating points as a func- tion of output.
Page 71: Set The Internal Resistance
Vh, and press [V-set] again to set the voltage lower limit Vl. 4.4.2 Set the Internal Resistance The IT6000C series power supply provides internal resistance setting (CV prior- ity mode only). The procedures are shown as below. Copyright © Itech Electronic Co., Ltd.
Page 72: Cr Function In Sink Mode
5A, and the instrument is working In CC mode. If Sink Res is set to 20Ω, the sink current is 4A, which is within the limit of Is, so the instru- ment works in CR mode at this time. Copyright © Itech Electronic Co., Ltd.
Page 73: Set The Output-On/Output-Off Delay
3. Set the output-on/output-off delay time and press [Enter] to confirm. 4.5 Protection Function for Power Supply The IT6000C series power supply provides the general protection functions such as overvoltage, overcurrent, overpower, undercurrent and undervoltage protection. The corresponding protection parameters can be configured in the Protect menu.
Page 74 Turn the UVP function off. (Def) Turn the UVP function on. Indicates the instrument warm-up time. This time is set to prevent the in- Warm-up strument from triggering protection when the voltage is rising. Be- cause this transient Copyright © Itech Electronic Co., Ltd.
Page 75 (such as overvoltage protection OVP), the right side shows the duration of the protection (hour: minute: second) and the number of protection informa- tion in the message queue and the total number of protection information. Copyright © Itech Electronic Co., Ltd.
Page 76: Set Over-Voltage Protection (Ovp)
The external (AC input) inputs a higher voltage. • The power supply outputs a high voltage due to a fault. Please avoid inputting a external voltage higher than 120% rated value, or the instrument will be damaged. Copyright © Itech Electronic Co., Ltd.
Page 77: Set Over-Current Protection (Ocp)
2. Press the up/down key or rotate the knob to select 2. OCP (Off) and press [Enter]. 3. Press the left/right key or rotate the knob to select On and press [Enter] to enter the setting interface. Copyright © Itech Electronic Co., Ltd.
Page 78: Set Over-Power Protection (Opp)
3. Press the left/right key or rotate the knob to select On and press [Enter] to enter the setting interface. 4. Set the protection limit Level and the delay time Delay in sequence, and press [Enter] to confirm. Copyright © Itech Electronic Co., Ltd.
Page 79: Set Under-Current Protection (Ucp)
[Enter] to confirm. For bi-directional power supplies, Level can be set to a positive or nega- tive value, i.e. the same protection limit is set for the output or input current. Copyright © Itech Electronic Co., Ltd.
Page 80: Set Under-Voltage Protection (Uvp)
1V, 1S as an example) is displayed as follows: PROTECT 5.UVP 10S, 1V, 1.000S 4.5.6 Over-Temperature Protection (OTP) When internal temperature of instrument is higher than about 90 °C, the instru- ment is under temperature protection. At this time, the instrument will Copyright © Itech Electronic Co., Ltd.
Page 81: Sense Reverse Protection
When you return power to the instrument, verify that the cooling fan is running. If not, please contact ITECH Technical Support. Leaving the instrument powered on with an inoperative cooling fan may result in damage to the instrument.
Page 82: Function Menu For Power Supply
Function). 4.6.1 LIST Function The IT6000C series power supply supports a total of 10 List files (List01 to List10), each of which can be set up to 200 steps. You need to edit the voltage/ current value, slope and time width of each step, or you can set repeat times (1 to 65535) for each List file.
Page 83 Set the number of list file repetitions. Set the running state after the list program is run- State ning over. Last After the List program finishes run- ning, the output is kept as the Copyright © Itech Electronic Co., Ltd.
Page 84 6. Set the current, slope and time width of step 1 in turn, and press [Enter] to confirm. 7. Set the parameters of step 2 in the same method. 8. Set the number of list repetitions Repeat, and press [Enter] to confirm. Copyright © Itech Electronic Co., Ltd.
Page 85 List file. At this point, the interface returns to the main interface of the system and LIST RUN is displayed in the lower right corner. Copyright © Itech Electronic Co., Ltd.
Page 86 The interface returns to the main interface of the LIST function, which is dis- played as follows: FUNCTION LIST Run Edit Open Export 7. Press the Left/Right key to select Export and press [Enter]. 8. Press the Left/Right key to select Yes and press [Enter]. Copyright © Itech Electronic Co., Ltd.
Page 87 Stop Running the List Program When the List program is running, if you need to stop running, you can do the following: Press the composite keys [Shift]+[I-set] (Function) on the front panel to enter the function menu. Copyright © Itech Electronic Co., Ltd.
Page 88 Import via U disk The instrument supports importing the edited .csv format file (the template can be obtained by contacting ITECH personnel) through the USB interface on the front panel, and generating voltage or current values after parsing, and then outputting complex voltage or current waveforms according to the time width specified by the user.
Page 89 Waveform type, keep the default settings without Waveform Type modification. Vaule Unit The CV priority is set to V, and the CC priority is set to Slope Unit Slope unit, fixed to S. Time Unit Time unit, fixed to S. Copyright © Itech Electronic Co., Ltd.
Page 90 Frequency Unit Frequency unit, Hz. Mode Indicates the power supply working mode. The CV priority is set to CV, and the CC priority is set to CC. Repeat Repeat times, the setting range is 1~65535. Copyright © Itech Electronic Co., Ltd.
Page 91 CV, and the CC priority is set to CC. Repeat Repeat times, the setting range is 1~65535. Peak-to-peak Offset Offset value Start Frequency Start frequency End Frequency Stop frequency Step DwelH Total running time Copyright © Itech Electronic Co., Ltd.
Page 92 8. Press the Up/Down key to select the file. 9. Press the Left/Right key to select Load, press [Enter] to complete the import, and wait for the trigger to run this file. 10. Turn on the [On/Off]. Copyright © Itech Electronic Co., Ltd.
Page 93: Battery Charging/Discharging Test Function
For detailed function usage, please refer to IT9000–PV6000 User Manual. 4.6.2 Battery Charging/Discharging Test Function The IT6000C series power supply provides the battery charging/discharging test function based on its unique bidirectional power supply properties. Suitable for charging/discharging tests on all types of portable batteries.
Page 94 Charge / or discharging Discharge time according to Time the selected test mode. Cut Off Voltage Battery test cut-off voltage Battery test cut-off current Cut Off Current Cut Off Capacity Battery test cut-off capacity Copyright © Itech Electronic Co., Ltd.
Page 95 Sense cables, the VFD will display a negative voltage value, and you can- not turn on the output at this time. It can only be turned on after the cables are properly connected. 8. Based on the selected trigger method, perform the trigger operation. Copyright © Itech Electronic Co., Ltd.
Page 96: Built-In Waveform Function
Pause is selected, it means that the present running is suspended, and you can continue to run by selecting Resume. 4.6.3 Built-in Waveform Function The IT6000C series power supply supports built-in waveforms for user to exe- cute the test directly. The protocols/standards involved in the built-in waveforms include the following: •...
Page 97 At this time, the VFD screen is displayed as the main interface of the system, and the corresponding waveform name is dis- played in the lower right corner. Copyright © Itech Electronic Co., Ltd.
Page 98 Resume. 4.6.3.1 Automotive Starting Waveform The IT6000C series power supply has built-in 12V or 24V DIN40839 waveform. This test verifies the behavior of a DUT during and after cranking. This wave- form can reproduce the voltage curve for automotive power network confirms to DIN40839 standard, thus facilitating quick call by customers.
Page 99 User-defined the automotive starting waveform. User-de- fined volt- V=8.00V age value DIN40839 for 12V System Steps Voltage (V) Current(A) Width(mS) Slope(mS) 2000 DIN40839 for 24V System Steps Voltage (V) Current(A) Width(mS) Slope(mS) 2000 Copyright © Itech Electronic Co., Ltd.
Page 100 12V; when the waveform program is divided into 16V-32V, the wave- form is consistent with the standard 24V waveform. The waveform diagram is shown below. How to Use Recall the self-defined DIN waveform operation (taking 12.5V voltage waveform as an example): Copyright © Itech Electronic Co., Ltd.
Page 101 This test is applicable to equipment with re- Reset-Test set function. The minimum supply voltage Us- min (Usmin≤80V) Usmin This test verifies the behavior of a DUT dur- Starting- ing and after cranking. Profile Select the 12V test system. Copyright © Itech Electronic Co., Ltd.
Page 102 Load-Dump Load dump curve Select centralized load dump Test A unsuppression Select the 12V voltage system Pulse width Peak voltage Select the 24V voltage system Pulse width Peak voltage Test B Select centralized load dump suppression Copyright © Itech Electronic Co., Ltd.
Page 103 This waveform simulates an instantaneous drop in the supply voltage when the car is started. This test simulates the effect when a conventional fuse element melts in another circuit. • 12V system • 24V system Copyright © Itech Electronic Co., Ltd.
Page 104 10 s and perform a functional test. Then decrease the voltage to 0.95 Us min. Continue with steps of 5 % of Us min, as shown in figure below, until the lower value has reached 0 V. Then raise the voltage to Us min again. Copyright © Itech Electronic Co., Ltd.
Page 105 From the constant voltage line in the original standard DIN40839 volt- age waveform, the voltage curve in t8 duration is upgraded to a curve containing a 2Hz AC voltage waveform. • Standards for 12V system: Copyright © Itech Electronic Co., Ltd.
Page 106 4. Press the Left/Right key to select Starting-Profile, and press [Enter] to confirm. 5. Press the Left/Right key to select 12V, and press [Enter] to confirm. 6. Press the Left/Right key to select the Level (i.e. 4), and press [Enter] to confirm. Copyright © Itech Electronic Co., Ltd.
Page 107 : Duration of pulse • : Rising Slope • : The supply voltage of the generator in operation: U = 14V in the 12V system, U = 28V in the 24V system. (see ISO 16750-1) Copyright © Itech Electronic Co., Ltd.
Page 108 =28V in the 24V system. (see ISO 16750-1) • : Peak voltage • *: Supply voltage with load dump suppression (i.e. clamping voltage) * = (Us − 4.28) × Un ÷ 80 Us is the setting item in the menu. Copyright © Itech Electronic Co., Ltd.
Page 109 ISO16750-1. How to recall this waveform from menu (take Test A 12V as an example): 1. Press the composite keys [Shift]+[I-set] (Function) on the front panel to en- ter the function menu. Copyright © Itech Electronic Co., Ltd.
Page 110 Start Startup pulse Recall the Waveform Take Momentary-Drop as an example to introduce the procedures as follows: 1. Press the composite keys [Shift]+[I-set] (Function) on the front panel to en- ter the function menu. Copyright © Itech Electronic Co., Ltd.
Page 111 U: Voltage (in V) Supply Voltage Transient Drop Simulate the affect from short circuit when fuse element of another circuit is melt. Detect the function status of the DUT at transient drop of Voltage. Copyright © Itech Electronic Co., Ltd.
Page 112 , and so on. As shown in the figure below, drop the voltage from U 0V by 5% and raise the voltage to U . The Rise and Fall time shall be between 10ms and 1s. • t: Time (in s) • Y: U Copyright © Itech Electronic Co., Ltd.
Page 113 Select the 12V voltage system Test pulse width Select the 24V voltage system Test pulse width Test–4 Starter motor engagement disturbance pulse Select the 12V voltage system For details, see Table 4–1 Parameter Description Copyright © Itech Electronic Co., Ltd.
Page 114 Peak voltage Clamping voltage Select the 24V volt- age system Test pulse width Peak voltage Clamping voltage Test B Select centralized load dump suppression Select the 12V volt- age system Test pulse width Peak voltage Copyright © Itech Electronic Co., Ltd.
Page 115 Select the 24V volt- age system Test pulse width Peak voltage Clamping voltage Test–2B Transient from DC motors acting as generators after ignition switch OFF: Parameters ≤0.05Ω ≤0.05Ω 0.2–2s 0.2–2s 1ms±50% 1ms±50% 1ms±50% 1ms±50% 1ms±50% 1ms±50% Copyright © Itech Electronic Co., Ltd.
Page 116 =10 ms is typical of the case when engine starts at the end of the crank- ing period, while t =100 ms is typical of the case when the engine does not start. Test–5 For the details, please refer to the Load Dump Dynamic Behavior. Copyright © Itech Electronic Co., Ltd.
Page 117 • HV_1 • HV_2a • HV_2b • HV_3 upper- Range of upper limited operating ca- limited pability, includes the following options: • HV_1 • HV_2a • HV_2b • HV_3 Copyright © Itech Electronic Co., Ltd.
Page 118 1~10. User- Select the user-defined LV123 waveform. fined Run the presently recalled waveform. Open Recall the waveform saved inside the instrument. Recall The address of the waveform file, File ranging from 1 to 10. Copyright © Itech Electronic Co., Ltd.
Page 119 V5: Voltage in interval 5 start Set the initial output voltage of the in- voltage strument before the LV123 regulation waveform test. At the same time, this value is also the end voltage after the Copyright © Itech Electronic Co., Ltd.
Page 120 The waveform is as follows: The parameters are as follows: Parameter HV_1 HV_2a HV_2b HV_3 140V 255V 350V 635V 190V 340V 450V 750V 170V 250V 520V 140V 255V 350V 635V 300S 300S 300S 300S Copyright © Itech Electronic Co., Ltd.
Page 121 The parameters are as follows: Parameter HV_1 HV_2a HV_2b HV_3 140V 255V 350V 635V 190V 340V 450V 750V 200V 360V 470V 770V 190V 340V 450V 750V 195V 350V 460V 760V 140V 255V 350V 635V Copyright © Itech Electronic Co., Ltd.
Page 122 The waveform is as follows: The parameters are as follows: Parameter HV_1 HV_2a HV_2b HV_3 140V 255V 350V 635V 170V 250V 520V 160V 200V 450V 170V 250V 520V 165V 225V 485V 140V 255V 350V 635V Copyright © Itech Electronic Co., Ltd.
Page 123 Count*3 Count*3 Count*3 number of tests Highly-limited The waveform is as follows: The parameters are as follows: Parameter HV_1 HV_2a HV_2b 140V 255V 350V 120V 150V 165V 225V 140V 175V 140V 255V 350V 10mS Copyright © Itech Electronic Co., Ltd.
Page 124 9. Press [On/Off] on the front panel to turn on the output. 10. According to the selected trigger method (same as the trigger method of the LIST function), for example, press [Shift]+[On/Off](Trigger) to trigger the output of the waveform. Copyright © Itech Electronic Co., Ltd.
Page 125 E-09 Reset behavior test waveform Ubmin Holding voltage E-11 Start pulses Cold-Start Cold start Normal Standard experi- mental pulse Severe Enhanced experi- mental pulse Warm-Start Warm start E-12 Voltage curve with intelligent generator control Copyright © Itech Electronic Co., Ltd.
Page 126 Dumping of an electric load, in combination with a battery with reduced buffering ability, results in an energy-rich overvoltage pulse due to the generator charac- teristics. The test pulse of E-05 Load Dump is shown in the figure below: Copyright © Itech Electronic Co., Ltd.
Page 127 The waveform is as follows. E-09 Reset Behavior The reset behavior of a component in its environment is simulated and tested. Test boundary conditions (e.g. assembly, terminal, system) must be described in detail. Copyright © Itech Electronic Co., Ltd.
Page 128 In order to cover both cases, two different test sequences are required. A component must al- ways undergo both sequences. • Cold Start Test Pulse • Warm Start Test Pulse Copyright © Itech Electronic Co., Ltd.
Page 129 The behavior of the electric system when intelligent generator controls are used is simulated. 4.6.3.7 LV148 LV148 covers tests for electric and electronic components in motor vehicles 48V electrical system. The voltage level and definition are shown in the figure below. Copyright © Itech Electronic Co., Ltd.
Page 130 – Part 1 ) Checks will slow the supply voltage decrease to the energy storage protection voltage, followed by energy storage disconnection. T1 Holding Holding time Time E-07 Slow decrease, fast increase in the supply voltage Copyright © Itech Electronic Co., Ltd.
Page 131 E-18 Overvoltage range The test is to show the load cut-off during storage charging and check the changes of the operating behavior into the overvoltage range. E-01 The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 133 Power Supply Function E-03 The waveform is as follows: E-04 The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 135 Power Supply Function E-06B The waveform is as follows: E-07 The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 136 Power Supply Function T1 and tr1 need to be manually set by the user. E-08 The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 137 Power Supply Function E-10 The waveform is as follows: E-15 The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 140 Take LV148 E-01 (long-term overvoltage test pulse) as an example to introduce how to use this function. 1. Press the composite keys [Shift]+[I-set] (Function) on the front panel to en- ter the function menu. Copyright © Itech Electronic Co., Ltd.
Page 141 TEST-05 starting profile TEST-06 long term overvoltage TEST-07 overvoltage with consumer components which may supply electrical energy TEST-08 decrease and increase of supply voltage TEST-10 reinitialisation TEST-11 discontinuities in supply voltage Copyright © Itech Electronic Co., Ltd.
Page 142 The waveform is as follows: TEST-02 The purpose of this test is to verify the functionality of the component in the upper and lower transitory voltage range. The waveform of lower range is as follows: Copyright © Itech Electronic Co., Ltd.
Page 144 Power Supply Function TEST-03 This test is intended to check the immunity of the component to transient overvoltages. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 145 DC/DC converter and whilst the battery is either out of circuit or incapable of absorbing power. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 146 Power Supply Function TEST-05 This test is intended to check the immunity of the component to voltage variations during the cold crank phase. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 147 Power Supply Function TEST-06 This test checks the robustness of the component against a long-term overvoltage. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 148 Such components shall either be capable of self-limiting their output supply voltage or systematic countermeasures shall be applied to the vehicle in order to ensure compliance with this specification. Copyright © Itech Electronic Co., Ltd.
Page 149 The waveform is as follows: TEST-08 This test is intended to check immunity of a component to decrease and increase of supply voltages. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 150 This test is intended to check the correct reinitialisation of the component after interruption of onboard power supply. This test shall only be performed on DUT's whose control logic (or parts thereof) is supplied by 48 V. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 151 Examples for this occurrence may be short circuits, switching of loads, disconnecting of batteries and others. This test applies to power consumers and not to power generators. The waveform is as follows: Copyright © Itech Electronic Co., Ltd.
Page 153: Solar Photovoltaic Curve Simulation Function (Sas)
4.6.4 Solar Photovoltaic Curve Simulation Function (SAS) The IT6000C series power supply provides the maximum power point tracking (MPPT) mechanism built-in, and it is very important to test the efficiency of this MPPT. The PV array/module/cell is a device that converts from light energy to electric energy.
Page 154 Crystalline or Multi- crystalline • HEC: High-effi- ciency Crystalline • TF: Thin-Film N50530 • Save To Set the saved file name. Pa- rameter setting ranges from 1 to 100 User- User-definable PV curves fined Copyright © Itech Electronic Co., Ltd.
Page 155 6. Set the Pmp, Vmp and Formula in turns, and press [Enter]. 7. Set the saved file name and press [Enter]. – Also you can set the filter speed in SAS→Filter according to the ac- tual test needs. Copyright © Itech Electronic Co., Ltd.
Page 156 Curve file is to be run. The interface is displayed as follows: FUNCTION Vmax Static Table Filter Run the Static PV Curve • Curve 1. Refer to Select Curve file to select the Curve file to be run. Copyright © Itech Electronic Co., Ltd.
Page 157 At this point, the interface will prompt whether to stop the running of the Func- tion, you can press the Left/Right key to select Stop, then the running will be stopped, and the Function menu item will be displayed, you can re-enter the Copyright © Itech Electronic Co., Ltd.
Page 158: Battery Simulation Function
Resume. 4.6.5 Battery Simulation Function The IT6000C series power supply can simulate battery characteristics in practi- cal applications based on its unique bidirectional properties and the variable output impedance. You can set battery-related parameters to simulate the charge and discharge characteristics of the battery to assist with other tests.
Page 159 Open or select a battery simulation Open curve file. Select the battery simu- lation curve file stored in the USB flash disk. Copyright © Itech Electronic Co., Ltd.
Page 160 • Edit battery simulation curve file 1. Access the ITECH website to download a template for the battery simula- tion curve file (.csv format). Also you can contact ITECH Technical Support. 2. Use the Excel tool to open the template file, edit the relevant parameters, and save.
Page 161 List function, that is, the List trigger source is also effective for the Battery Emulator. After the battery simulation is triggered, the VFD screen displays as follows: 12.000V 2.000A 12.0Ah 12.5%SOC Copyright © Itech Electronic Co., Ltd.
Page 162 Pause is selected, it means that the present running is suspended, and you can continue to run by selecting Resume. Copyright © Itech Electronic Co., Ltd.
Page 163: Basic Operation
This function can prevent the power supply from the panel keys misoperation during usage. Press the composite keys [Shift]+[2] (Lock) to lock front panel keys and the lock symbol “*” is shown on the front panel display. All panel keys, Copyright © Itech Electronic Co., Ltd.
Page 164: Save And Recall Operations
You can do the save and recall operations by the following two methods. • Press the composite keys [Shift]+[+/-] (Save) to save the parameters. Press the [Recall] key to recall the parameters. • SCPI commands: *SAV and *RCL Copyright © Itech Electronic Co., Ltd.
Page 165: Save Operation
3. Press [Enter] to recall the parameters. 5.4 Data Logging Function The IT6000C series Bi-directional Programmable DC Power Supply supports the recording and saving of test data. This Chapter introduces how to use this function in details.
Page 166 2. Set the value of Sample Period and press [Enter]. 3. Set the value of Duration and press [Enter]. Copyright © Itech Electronic Co., Ltd.
Page 167 Voltage trigger When the DC terminals detect that the voltage reaches the trigger voltage setting value and is within the range of the upper and lower trigger limits, a data recording operation is triggered. Copyright © Itech Electronic Co., Ltd.
Page 168: Set The Beeper Status (Beep)
1. Press the composite keys [Shift]+[P-set] (System) on the front panel to en- ter the system menu. The first displayed menu item Beep is used to set the beeper status. 2. Press [Enter] key to enter the parameter setting interface. Copyright © Itech Electronic Co., Ltd.
Page 169: Set The Power-On State (Poweron)
Table 5–1 Initial value of the parameter Category Parameter Initial Value Voltage setting: Vs One percent of the Main rated voltage of the interface instrument Current setting: Is One percent of the rated current of the instrument Copyright © Itech Electronic Co., Ltd.
Page 170: Sense Function (Sense)
20V. 5.7 Sense Function (Sense) This menu item is used to switch the power supply to local measurement or re- mote sensing. Copyright © Itech Electronic Co., Ltd.
Page 171: Select Trigger Source (Trig Source)
On: Indicates turn the sense function on. 4. After the parameter settings are complete, press [Enter]. 5.8 Select Trigger Source (Trig Source) For the IT6000C series power supply, the List and data logging functions can be triggered for running by the following methods: •...
Page 172: Set The Communication Information (I/O Con)
5.9 Set the Communication Information (I/O Con) This menu item is used to set the communication information between instru- ment and PC. The standard communication interfaces for IT6000C series power supply are USB, LAN, CAN and VCP. You can also select the non-standard in- terface GPIB or RS-232 based on personal requirement.
Page 173: Set Parallel Operation Mode (Parallel)
The IT6000C series power supply supports multiple instruments to work in par- allel mode to provide more power and current output capability.
Page 174 Instruction or the IT6000 Cabinet Assembly Instruction. 1. Ensure that the power switches of the three units and the main switch of the AC power distribution box are off. 2. Refer Figure 5–1 Wiring connection diagram to connect three units. Copyright © Itech Electronic Co., Ltd.
Page 175 Refer to the blue wiring legend in the figure, connect the System Bus (i. e., the fiber outer ring interfaces TX and RX) for fiber-optic communica- tion between the master and slaves. • Three 3U single instruments parallel Copyright © Itech Electronic Co., Ltd.
Page 176 Configure the Menu Item. 5. After the parallel menu of the three units are set, restart the instrument separately. After the instrument is restarted, the VFD shows that the instrument is work- ing in parallel mode. Copyright © Itech Electronic Co., Ltd.
Page 177: Digital I/O Function (Digital Port)
5.11 Digital I/O Function (Digital Port) The IT6000C series power supply supports digital I/O function. The user can realize logic control over high and low level input or output by related configura- tions in the system menu, namely general digital signal I/O function. In addition to general digital I/O functions, this series can be customized to meet different special needs through different pin wirings.
Page 178 Level or PWM System→Digital Port→IO–2. Ps, signal Not-Invert menu item. For parameter introduction, see 5.11.2 IO–2. Ps, Not-Invert. Corresponds to the function set in the Level signal Level or PWM System→Digital Port→IO–3. Off- signal Copyright © Itech Electronic Co., Ltd.
Page 179 (the seven pins each have a differ- ent custom function). The second and third options (Input and Output) are the general digital I/O function, and the parameter settings and functions of the sev- en pins are the same. Copyright © Itech Electronic Co., Ltd.
Page 180 By default (i.e., the pin is not connected), it can be detected as high level, and the front panel will display input(1). If the pin is configured as Invert, it can be detected as low level, and the front panel will display input (0). Copyright © Itech Electronic Co., Ltd.
Page 181: Io-1. Ps-Clear, Not-Invert
When pin 1 is set to default Ps-Clear function, pin 1 has bi-directional I/O func- tion, which can receive pulse signal input from the external instrument and also can output pulse signal to external instrument. Pulse signal parameter require- ments are as follows: Copyright © Itech Electronic Co., Ltd.
Page 182 [On/Off] is from Off to On, pin 1 will send a pulse signal to the external instrument. 1. Clear the instrument’s OCP protection. 2. Check the oscilloscope and confirm whether pin 1 has pulse output. Copyright © Itech Electronic Co., Ltd.
Page 183: Io-2. Ps, Not-Invert
When pin 2 is set to default Ps function, pin 2 will output high or low level based on whether the instrument is under protection or not. Under normal conditions (Not under protection), and when pin 2 is under default setting (Not-Invert), pin Copyright © Itech Electronic Co., Ltd.
Page 184: Io-3. Off-Status, Not-Invert
Not-Invert Not- Indicates whether to invert the input/output pulse Invert or level signal. • Invert: Yes Invert • Not-Invert: No Off- This default function indicates the exist- Status ing [On/Off] state of the instrument. Copyright © Itech Electronic Co., Ltd.
Page 185 [On/Off] is turned off, and pin 3 outputs high level; the[On/Off] is turned on, and pin 3 outputs low level. When pin 3 is set to Invert, the output level is completely opposite. 1. Refer to the figure below to connect pin 3 to the external oscilloscope. Copyright © Itech Electronic Co., Ltd.
Page 186: Io-4. Ext-Trig, Not-Invert
Trig–Out Indicates that when the instru- ment generates a signal (which triggers the Meter function, Da- ta Recording function and List function for running), pin 4 will output a pulse signal. Copyright © Itech Electronic Co., Ltd.
Page 187 False By default (Not-Invert), the out- put digital signal is 0 (i.e. high level), and in the case of Invert, the output is low level. Digital signal of PWM. PWM Freq Frequency Copyright © Itech Electronic Co., Ltd.
Page 188 ListTrig Source is set to Manual. 5. Check the oscilloscope and confirm whether pin 4 has following pulse signal output. Level rise slope 10us Level fall slope Minimum time width 30us for low level keep • Trig-In Copyright © Itech Electronic Co., Ltd.
Page 189: Io-5. Inh-Living, Not-Invert
List file is running or not. 5.11.5 IO–5. INH-Living, Not-Invert Parameter Description IO–5. Living, Parameter setting for pin 5. Not-Invert Not- Indicates whether to invert the input/output pulse or Invert level signal. • Invert: Yes Invert • Not-Invert: No Copyright © Itech Electronic Co., Ltd.
Page 190 The [On/Off] button light is lighted on and VFD still displays On, but the actual output is 0; when pin 5 receives high level sig- nal again, the output state is recovered. Copyright © Itech Electronic Co., Ltd.
Page 191 The pa- rameter requirements of this pulse signal are as follows: Level rise slope 10us Level fall slope Minimum time width 30us for low level keep Copyright © Itech Electronic Co., Ltd.
Page 192: Io-6. Sync-On, Not-Invert
When the protection state is cleared, manually turn on [On/Off] again. 5.11.6 IO–6. Sync-On, Not-Invert Parameter Description IO–6. Sync- Parameter setting for pin 6. On, Not- Invert Not- Indicates whether to invert the input/output pulse or Invert level signal. Copyright © Itech Electronic Co., Ltd.
Page 193 The parameter requirements of this pulse signal are as follows: Level rise slope 10us Level fall slope Minimum time width 30us for low level keep The bi-direction I/O functions are introduced as below: Copyright © Itech Electronic Co., Ltd.
Page 194: Io-7. Sync-Off, Not-Invert
B’s output function is synchronously turned on. 5.11.7 IO–7. Sync-Off, Not-Invert Parameter Description IO–7. Sync-Off, Parameter setting for pin 7. Not-Invert Not- Indicates whether to invert the input/output pulse Invert or level signal. Copyright © Itech Electronic Co., Ltd.
Page 195 The parameter requirements of this pulse signal are as follows: Level rise slope 10us Level fall slope Minimum time width 30us for low level keep The bi-direction I/O functions are introduced as below: Copyright © Itech Electronic Co., Ltd.
Page 196: Analogue Function (Ext-Program) (Optional)
The external analog function controls the actual output voltage/current value of the instrument by inputting a voltage between –10V and 10V to the specified pin, and limits the output of the voltage/current to a specified range. Copyright © Itech Electronic Co., Ltd.
Page 197 Ch2 and the input voltage of the corresponding pin, the voltage lower limit Vl will be adjusted according to the parameter setting of Ch3 and the input voltage of the corresponding pin. Copyright © Itech Electronic Co., Ltd.
Page 198 Mx and Mb according to the following formulas, and then set the two values through the front panel keys or SCPI remote commands. The principle of parameter setting of Ch1 and Ch2 and Ch3 is the same, so the description will not be repeated. Copyright © Itech Electronic Co., Ltd.
Page 199 CV priority • CC priority How to Use The following takes the CV priority mode as an example to introduce the usage steps. 1. Refer to the figure below to complete the pin connection. Copyright © Itech Electronic Co., Ltd.
Page 200 4. Use knob or Up/Down key to select Ext-Program and press [Enter]. 5. According to step 2, set Mx and Mb of the corresponding pins. 6. Set the Ext-Program→On / Off to On to turn on the analog function. Copyright © Itech Electronic Co., Ltd.
Page 201: Restored To Factory Setting (System Reset)
Table 5–3 Initial value of the parameter Category Parameter Initial Value Voltage setting: Vs One percent of the rated Main voltage of the interface instrument Current setting: Is One percent of the rated current of the instrument Copyright © Itech Electronic Co., Ltd.
Page 202 • IP Addr: 192.168.0.1 • SubNet: 255.255.255.0 • Gateway: 192.168.0.1 • DNS1/DNS2: 0.0.0.0 • Socket Port: 30000 LAN→Serv-Conf MDNS/PING/Telnet- scpi/Web/VX-11/ Raw-socket: On • VCP: 9600,8,N,1 • (Optional) RS232: 9600,8,N,1 • (Optional) External analog: Off Copyright © Itech Electronic Co., Ltd.
Page 203: View The System Information (System Info)
UCP/UVP Protection point: Level OVP/OCP/OPP/UCP/UVP Delay time: Delay UCP/UVP Warm time: Warm-up 5.14 View the System Information (System Info) This menu item is used to view the system information of the instrument. Copyright © Itech Electronic Co., Ltd.
Page 204: System Upgrade
Current Limit Display the maximum current limit. Run Time Display the power-on time. 5.15 System Upgrade The IT6000C series power supply supports the upgrade of the system version. System upgrade includes the following two methods: Copyright © Itech Electronic Co., Ltd.
Page 205 For example, when there are multiple system upgrading package post- fixed with .itech in the root directory of your USB flash drive, you need to use a text editing tool to open the configuration file and specify the up- grade package name corresponding to the present upgrade operation.
Page 206 2. Power on the instrument. At this point, press Shift for several times till the instrument can detect the system upgrading files in the USB flash drive. After the system upgrading files are detected, the interface displays as follows: Copyright © Itech Electronic Co., Ltd.
Page 207 The system will automatically perform upgrading. If No is selected, it means to exit upgrading, and the system will di- rectly enter into the main interface. 5. After the upgrading is completed, you need to restart the instrument manually. Copyright © Itech Electronic Co., Ltd.
Page 208: Technical Specification
Besides, we will introduce the working environment and storage temperature. ♦ Main Specification ♦ 80V ♦ 300V ♦ 500V ♦ 800V ♦ 1500V ♦ 2250V ♦ Supplemental Characteristics 6.1 Main Specification Copyright © Itech Electronic Co., Ltd.
Page 209: 197
Read Back Accuracy Voltage ≤0.02%+0.02%FS ( within 12 months, 25℃ Current ≤0.1%+0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5%+0.5%FS Resistance ≤1% + 1%FS Ripple Voltage ≤120mVpp(MAX:≤300mVpp) (20Hz -20MHz) Current ≤0.1%FS RMS Setup Temperature Voltage ≤50PPM/℃ Coefficient Copyright © Itech Electronic Co., Ltd.
Page 210 Storage Temperature -10℃～70℃ OVP, OCP, OPP, UVP, UCP, OTP, Vsense protection Protective Function Standard: USB, CAN, LAN, VCP; optional: GPIB, analog card Standard Interface (includes RS232), fiber optic socket Isolation ( output to ground) 500V Copyright © Itech Electronic Co., Ltd.
Page 211: It6010C-80-300
Resistance 0.001Ω Voltage 0.001V Current 0.01A Read Back Resolution Power 0.001kW Resistance 0.001Ω Setup Accuracy Voltage ≤0.02% +0.02%FS ( within 12 months, 25℃ Current ≤0.1% + 0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5% + 0.5%FS Copyright © Itech Electronic Co., Ltd.
Page 212 ≤0.1% + 0.1%FS Setup stability-8h Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Readback Stability-30min Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Readback stability-8h Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Efficiency ～90% Copyright © Itech Electronic Co., Ltd.
Page 213: It6015C-80-450
( 0 ℃-50 ℃) Output Current -450～450A Output Power -15～15kW Output Resistance 0～0.178Ω Line Regulation Voltage ≤0.01%FS ±(％of Output+Offset) Current ≤0.05%FS Load Regulation Voltage ≤0.02%FS ±(％of Output+Offset) Current ≤0.05%FS Voltage 0.001V Setup Resolution Current 0.01A Power 0.001kW Copyright © Itech Electronic Co., Ltd.
Page 214 Fall Time( full load ) Voltage ≤15ms Transient Response Time Voltage ≤2ms Voltage (Three- 198V～264V (Derating 50%) 342V～ phase four-wire) 1 528V Maximum Input 28.42A Current AC Input Maximum Input Ap- 16.9kVA parent Power Frequency 47Hz～63Hz Copyright © Itech Electronic Co., Ltd.
Page 215 AC input voltage in the range of 198~264V, need to be customized while derating by 50%. Models with emergency stop module (including AC contactor) only sup- port 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. Copyright © Itech Electronic Co., Ltd.
Page 216: 204
≤0.02% + 0.02%FS ( within 12 months, 25℃ Current ≤0.1% + 0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5% + 0.5%FS Resistance ≤1% + 1%FS Ripple Voltage ≤120mVpp(MAX:≤600mVpp) (20Hz -20MHz) Current ≤0.1%FS RMS Setup Temperature Voltage ≤50PPM/℃ Coefficient Copyright © Itech Electronic Co., Ltd.
Page 217 Storage Temperature -10℃～70℃ OVP, OCP, OPP, UVP, UCP, OTP, Vsense protection Protective Function Standard: USB, CAN, LAN, VCP; optional: GPIB, analog card Standard Interface (includes RS232), fiber optic socket Isolation ( output to ground) 1000V Copyright © Itech Electronic Co., Ltd.
Page 218: It6012C-300-150
0.001Ω Setup Accuracy Voltage ≤0.02% + 0.02%FS ( within 12 months, 25℃ Current ≤0.1% + 0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5% + 0.5%FS Resistance ≤1% + 1%FS Read Back Accuracy Voltage ≤0.02% + 0.02%FS Copyright © Itech Electronic Co., Ltd.
Page 219 ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Readback Stability-30min Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Readback stability-8h Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Efficiency ～92% Remote Sense Compensa- ≤5V tion Voltage Copyright © Itech Electronic Co., Ltd.
Page 220: It6018C-300-225
0～1Ω Line Regulation Voltage ≤0.01%FS ±(％of Output+Offset) Current ≤0.05%FS Load Regulation Voltage ≤0.02%FS ±(％of Output+Offset) Current ≤0.05%FS Voltage 0.01V Current 0.01A Setup Resolution Power 0.001kW Resistance 0.001Ω Voltage 0.01V Read Back Resolution Current 0.01A Copyright © Itech Electronic Co., Ltd.
Page 221 198V～264V (Derating 50%) 342V～528V phase four-wire) 1 Maximum Input 33.37A Current AC Input Maximum Input Ap- 19.8kVA parent Power Frequency 47Hz～63Hz Setup Stability-30min Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Setup stability-8h Voltage ≤0.02%+0.02%FS Copyright © Itech Electronic Co., Ltd.
Page 222: 210
380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. 6.1.3 500V 6.1.3.1 IT6006C-500-40 Parameter IT6006C-500-40 Output Voltage Rated value 0～500V ( 0 ℃-50 ℃) Output Current -40～40A Output Power -6～6kW Copyright © Itech Electronic Co., Ltd.
Page 223 ±(％of Output/℃+Offset) Current ≤200PPM/℃ Read Back Temperature Voltage ≤50PPM/℃ Coefficient ±(％of Output/℃+Offset) Current ≤200PPM/℃ Rise Time( no load ) Voltage ≤15ms Rise Time( full load ) Voltage ≤30ms Fall Time( no load ) Voltage ≤30ms Copyright © Itech Electronic Co., Ltd.
Page 224 AC input voltage in the range of 198~264V, need to be customized while derating by 50%. Models with emergency stop module (including AC contactor) only sup- port 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. Copyright © Itech Electronic Co., Ltd.
Page 225: It6012C-500-80
( within 12 months, 25℃ Current ≤0.1% + 0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5% + 0.5%FS Resistance ≤1% + 1%FS Ripple Voltage ≤200mVpp(MAX:≤800mVpp) (20Hz -20MHz) Current ≤0.1%FS RMS Setup Temperature Voltage ≤50PPM/℃ Coefficient ±(％of Output/℃+Offset) Current ≤200PPM/℃ Copyright © Itech Electronic Co., Ltd.
Page 226 OVP, OCP, OPP, UVP, UCP, OTP, Vsense protection Protective Function Standard: USB, CAN, LAN, VCP; optional: GPIB, analog card (in- Standard Interface cludes RS232), fiber optic socket Isolation ( output to ground) 1000V Working Temperature 0～50℃ Copyright © Itech Electronic Co., Ltd.
Page 227: It6018C-500-120
0.001Ω Setup Accuracy Voltage ≤0.02% + 0.02%FS ( within 12 months, 25℃ Current ≤0.1% + 0.1%FS ±5℃) ±(％of Output+Offset) Power ≤0.5% + 0.5%FS Resistance ≤1% + 1%FS Read Back Accuracy Voltage ≤0.02% + 0.02%FS Copyright © Itech Electronic Co., Ltd.
Page 228 ≤0.1% + 0.1%FS Readback Stability-30min Voltage ≤0.02% + 0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Readback stability-8h Voltage ≤0.02% + 0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Efficiency ～92% Remote Sense Compensa- ≤5V tion Voltage Copyright © Itech Electronic Co., Ltd.
Page 229: 217
Rated value ( 0 ℃-50 ℃) Output Power -6～6kW Output Resistance 0～1Ω Line Regulation Voltage ≤0.01%FS ±(％of Output+Offset) Current ≤0.05%FS Load Regulation Voltage ≤0.02%FS ±(％of Output+Offset) Current ≤0.05%FS Voltage 0.01V Current 0.001A Setup Resolution Power 0.001kW Resistance 0.001Ω Copyright © Itech Electronic Co., Ltd.
Page 230 198V～264V (Derating 50%) 342V～528V phase four-wire) 1 Maximum Input L1,L2/20A;L3/0A Current AC Input Maximum Input Ap- 6.6kVA parent Power Frequency 47Hz～63Hz Setup Stability-30min Voltage ≤0.02%+0.02%FS ±(％of Output+Offset) Current ≤0.1% + 0.1%FS Setup stability-8h Voltage ≤0.02%+0.02%FS Copyright © Itech Electronic Co., Ltd.
Page 231: It6012C-800-50
6.1.4.2 IT6012C-800-50 Parameter IT6012C-800-50 Output Voltage 0～800V Output Current -50～50A Rated value ( 0 ℃-50 ℃) Output Power -12～12kW Output Resistance 0～1Ω Line Regulation Voltage ≤0.01%FS ±(％of Output+Offset) Current ≤0.05%FS Load Regulation Voltage ≤0.02%S Copyright © Itech Electronic Co., Ltd.
Page 232 Fall Time( no load ) Voltage ≤30ms Fall Time( full load ) Voltage ≤15ms Transient Response Time Voltage ≤2ms Voltage (Three- 198V～264V (Derating 50%) 342V～528V phase four-wire) 1 AC Input Maximum Input L1,L2/20A;L3/34A Current Copyright © Itech Electronic Co., Ltd.
Page 233: It6018C-800-75
50%. Models with emergency stop module (including AC contactor) only sup- port 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. 6.1.4.3 IT6018C-800-75 Parameter IT6018C-800-75 Rated value ( 0 ℃-50 ℃) Output Voltage 0～800V Copyright © Itech Electronic Co., Ltd.
Page 234 ±(％of Output/℃+Offset) Current ≤200PPM/℃ Read Back Temperature Voltage ≤50PPM/℃ Coefficient ±(％of Output/℃+Offset) Current ≤200PPM/℃ Rise Time( no load ) Voltage ≤15ms Rise Time( full load ) Voltage ≤30ms Fall Time( no load ) Voltage ≤30ms Copyright © Itech Electronic Co., Ltd.
Page 235 AC input voltage in the range of 198~264V, need to be customized while derating by 50%. Models with emergency stop module (including AC contactor) only sup- port 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. Copyright © Itech Electronic Co., Ltd.
Page 236: 1500V
Read Back Accuracy (within Current ≤0.1% + 0.1%FS 12 months, 25℃ ±5℃) ±(％ of Output+Offset) Power ≤0.5% + 0.5%FS Resistance ≤1% + 1%FS Ripple Voltage ≤600mVpp(MAX: ≤1500mVpp) (20Hz -20MHz) Current ≤0.1%FS RMS Setup Temperature Voltage ≤50PPM/℃ Coefficient Copyright © Itech Electronic Co., Ltd.
Page 237 -10℃～70℃ OVP, OCP, OPP, UVP, UCP, OTP, Vsense protection Protective Function Standard: USB, CAN, LAN, VCP; optional: GPIB, analog card (in- Standard Interface cludes RS232), fiber optic socket Isolation ( output to ground) 1800V Copyright © Itech Electronic Co., Ltd.
Page 238: 2250V
Current 0.001A Read Back Resolution Power 0.001kW Resistance 0.001Ω Voltage ≤0.02% + 0.02%FS Setup Accuracy (within 12 Current ≤0.1% + 0.1%FS months, 25℃ ±5℃) ±(％ Power ≤0.5% + 0.5%FS ofOutput+Offset) Resistance ≤1% + 1%FS Copyright © Itech Electronic Co., Ltd.
Page 239 ±(％of Output+Offset) Current ≤0.1% +0.1%FS Readback Stability-30min Voltage ≤0.02% + 0.02%FS ±(％of Output+Offset) Current ≤0.1% +0.1%FS Readback stability-8h Voltage ≤0.02% + 0.02%FS ±(％of Output+Offset) Current ≤0.1% +0.1%FS Efficiency ～92% Remote Sense Compensa- ≤22.5V tion Voltage Copyright © Itech Electronic Co., Ltd.
Page 240 AC input voltage in the range of 198~264V, need to be customized while derating by 50%. Models with emergency stop module (including AC contactor) only sup- port 380VAC±10% for standard AC input voltage, 480VAC±10% voltage is required for customization. Copyright © Itech Electronic Co., Ltd.
Page 241: Supplemental Characteristics
Technical Specification 6.7 Supplemental Characteristics State storage capacity: 10 sets Recommended calibration frequency: once a year Cooling style: fans Copyright © Itech Electronic Co., Ltd.
Page 242: Routine Maintenance
During self-test, errors may be induced by signals present on ex- ternal wiring, such as long test leads that can act as antennae. 7.2 Cleaning and Maintenance To ensure the safety function and performance of the instrument, please clean and maintain the instrument properly. Copyright © Itech Electronic Co., Ltd.
Page 243: Contact Of Itech Engineers
If there are still some problems, carefully read the Warranty and Limitation of Warranty in the preface of the manual. Confirm that your instrument complies with warranty service conditions. If after your warranty expires, ITECH offers re- pair services at competitive prices.
Page 244: Return For Repair
4006-025-000 for technical support and services. 7.4 Return for Repair If your instrument fails during the warranty period, ITECH will repair or replace it under the terms of your warranty. After your warranty expires, ITECH offers re- pair services at competitive prices. Also you can purchase an extended mainte- nance service contract that exceeds the standard warranty period.
Page 245 ITECH recommends that you retain the original shipping carton for return ship- ments and always insure shipments. To ship the unit to ITECH for service or repair: 1. Download the ITECH maintenance service application from our website, complete it and place it in the box with the instrument.
Page 246: A Appendix
♦ Fuse Replacement A.1 Specifications of Red and Black Test Cables ITECH provides you with optional red and black test cables, which are sold indi- vidually and you can select for test. For specifications of ITECH test cables and maximum current values, refer to the table below.
Page 247: Troubleshooting
Larger diameter wire sizes will help minimize wire voltage drops. Twist- ing or bundling wires will help reduce transient voltage drops. A.2 Troubleshooting The fault information of this series of instruments is described below. Copyright © Itech Electronic Co., Ltd.
Page 248 Master, and the oth- er units are Slave. FIBER EXT UNLOCK The outer ring of the fiber is Fiber multi-master not locked. parallel: set the par- allel in the System menu in turn. For details, see 5.10 Copyright © Itech Electronic Co., Ltd.
Page 249: Fuse Replacement
If there are no fuse assembly on the instrument rear panel, it means that you can’t replace the fuse by yourself. Please contact the ITECH engineer on the condition of the same malfunction.
Page 250 2. Have a visual inspection of the fuse to see whether it is burnt out; if yes, replace it with another fuse of the same specification. Re- fer to the corresponding technical specifi- cations for fuse rating. Copyright © Itech Electronic Co., Ltd.
Page 251 4. When install, put into the fuse box firstly. Then Push and turn the fuse box to 90 de- grees clockwise. Via Acquanera, 29 22100 Como tel. 031.526.566 (r.a.) fax 031.507.984 info@calpower.it www.calpower.it Copyright © Itech Electronic Co., Ltd.

This manual is also suitable for:

It6005c-80-150 It6010c-80-300 It6015c-80-450 It6006c-300-75 It60012c-300-150 It6018c-300-225 ... Show all

ITech IT6000C Series User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for ITech IT6000C Series

Summary of Contents for ITech IT6000C Series

This manual is also suitable for:

Table of Contents
