Technical Data
4.
4.1
General Data
4.1.1
Mechanical Data
Dimensions:
Mass:
Installation depth:
Installation:

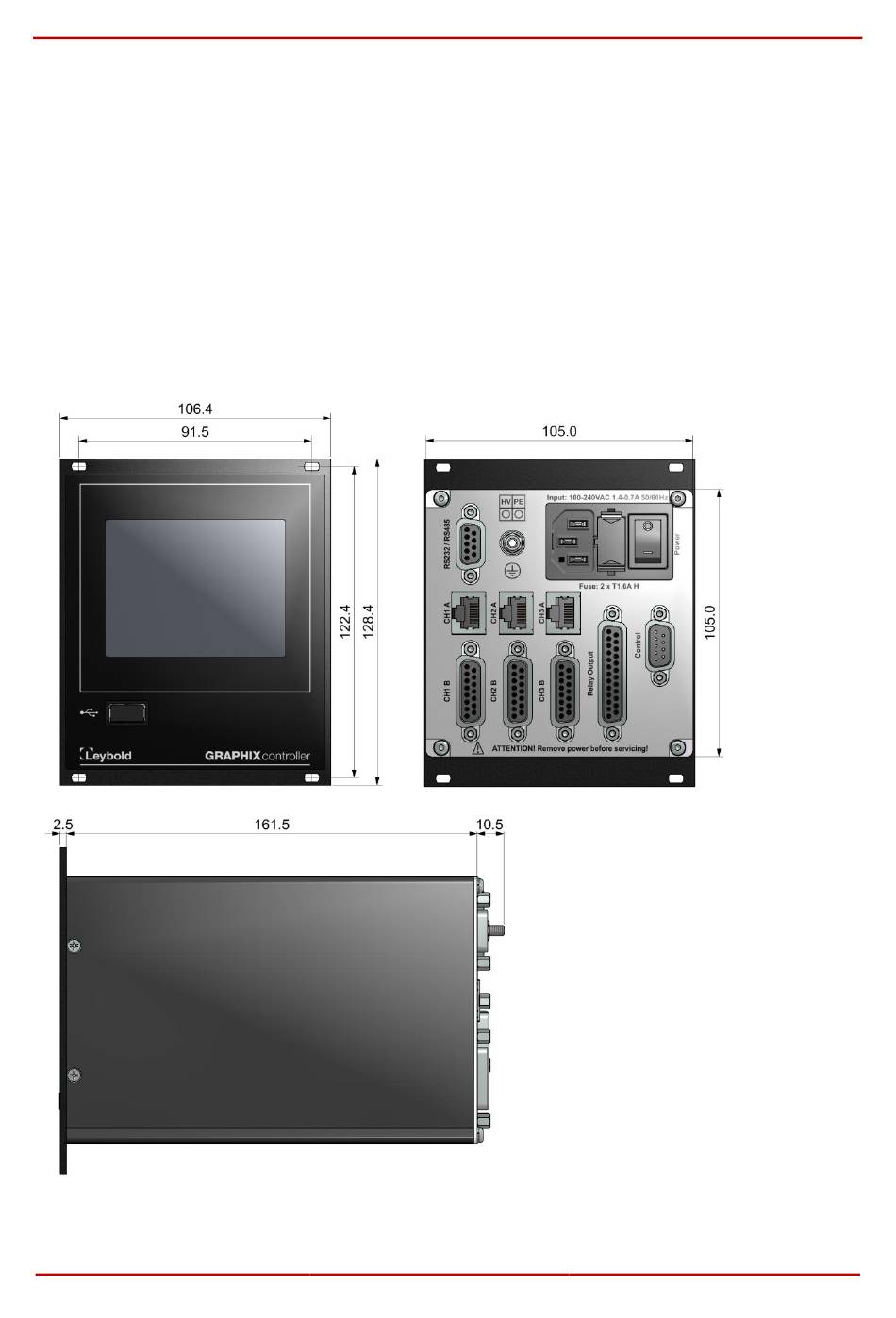

Figure 2 – Dimensions of the GRAPHIX controller (in mm)
16
Width: 106.4 mm (1/4 19")
Height: 128.4 mm (3 HU)
Depth: 174.0 mm
≤ 1.7 kg
≤ 230 mm (including connected plug)
Rack installation
Front panel installation
Benchtop instrument
GA300550402_002_C1 – 10/2016
