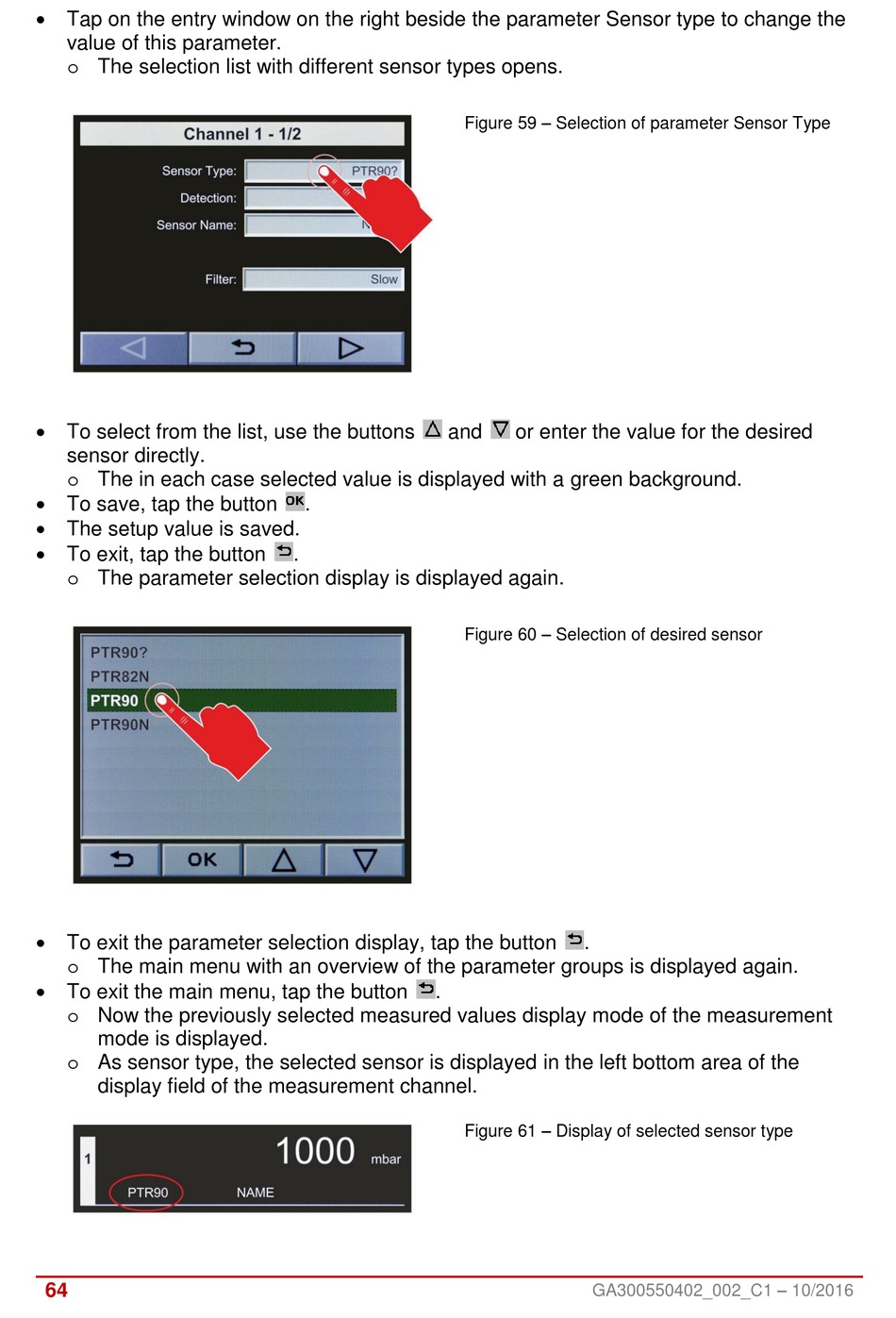

Figure 59 – Selection Of Parameter Sensor Type - LEYBOLD GRAPHIX ONE Instruction Manual

 Tap on the entry window on the right beside the parameter Sensor type to change the
value of this parameter.
o The selection list with different sensor types opens.
 To select from the list, use the buttons
sensor directly.
o The in each case selected value is displayed with a green background.
 To save, tap the button
 The setup value is saved.
 To exit, tap the button
o The parameter selection display is displayed again.
 To exit the parameter selection display, tap the button
o The main menu with an overview of the parameter groups is displayed again.
 To exit the main menu, tap the button
o Now the previously selected measured values display mode of the measurement
mode is displayed.
o As sensor type, the selected sensor is displayed in the left bottom area of the
display field of the measurement channel.
64
and
.
.
.
Figure 59 – Selection of parameter Sensor Type
or enter the value for the desired
Figure 60 – Selection of desired sensor
.
Figure 61 – Display of selected sensor type
