 To exit the parameter selection menu, tap the button
o The main menu with an overview of the parameter groups is displayed again.
 To exit the main menu, tap the button
o You are now returned to the previously selected measured value display type of the
measurement mode.
o The configured switching threshold is displayed in the left at the top of the display
field for the in each case assigned measurement channel.
NOTICE:
In case of a sensor fault or a connection fault between sensor and GRAPHIX
controller, the switching thresholds assigned to the sensor, respectively
channel are disabled. The pressure values for the parameters SP-On and SP-
Off persist in the instrument's memory.
When reassigning these switching thresholds to a channel, the saved values
for the parameters SP-On and SP-Off are automatically taken over provided
these are within the adjustment range for the type of sensor connected to the
channel. Otherwise values are proposed which match the adjustment range
of the sensor type.
78

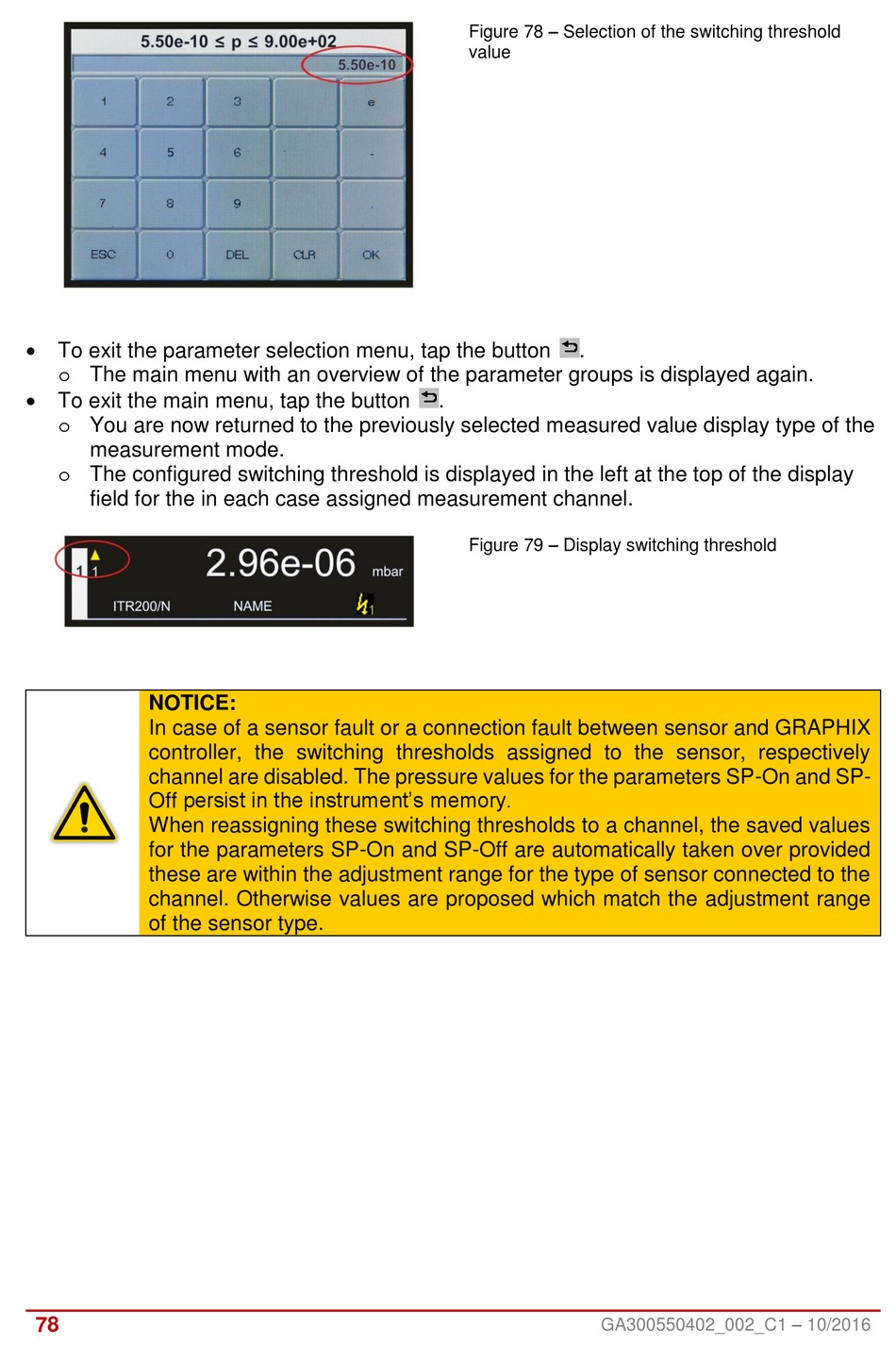

Figure 78 – Selection of the switching threshold
value
.
.
Figure 79 – Display switching threshold
GA300550402_002_C1 – 10/2016
