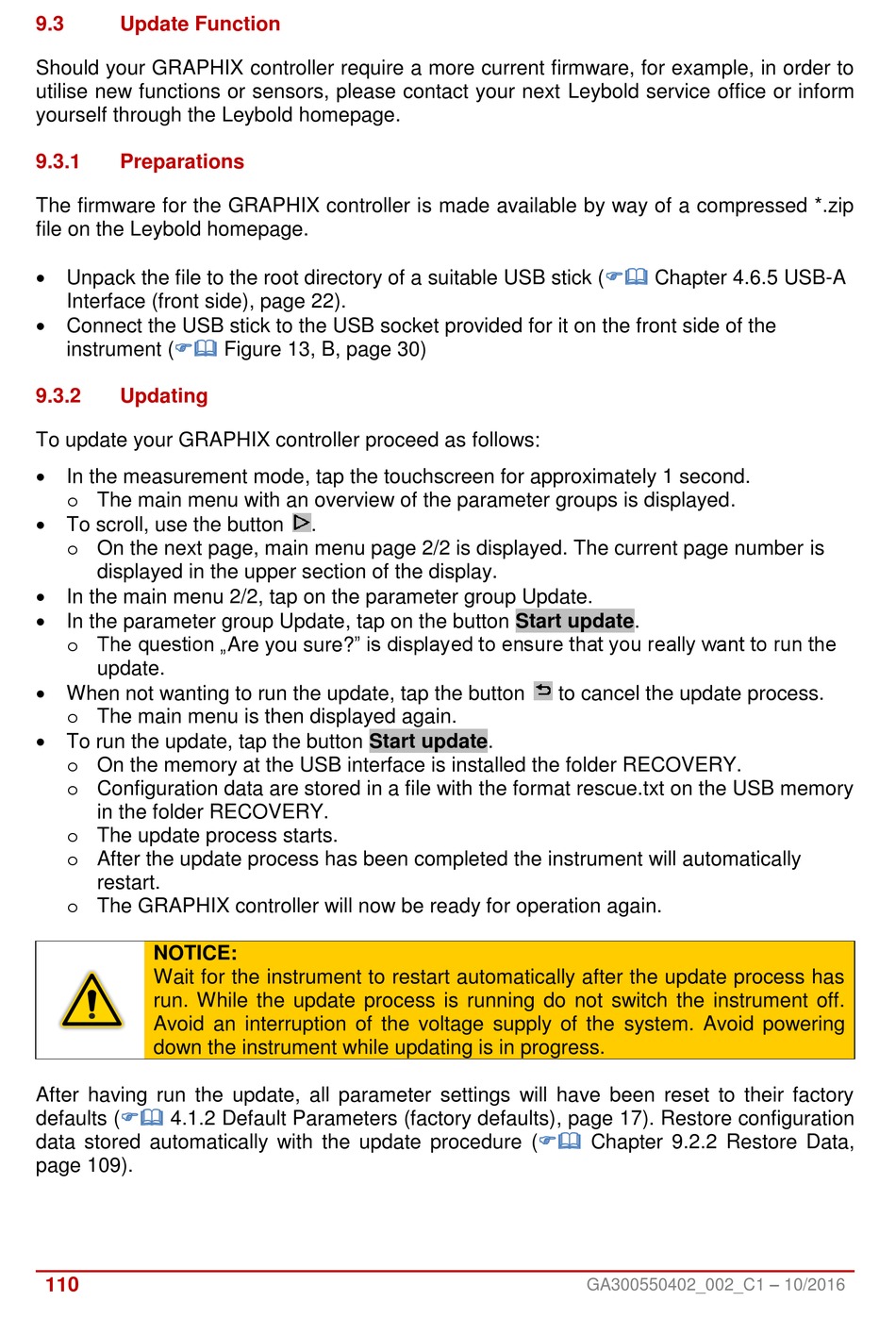

9.3

Update Function

Should your GRAPHIX controller require a more current firmware, for example, in order to
utilise new functions or sensors, please contact your next Leybold service office or inform
yourself through the Leybold homepage.
9.3.1

Preparations

The firmware for the GRAPHIX controller is made available by way of a compressed *.zip
file on the Leybold homepage.
 Unpack the file to the root directory of a suitable USB stick
Interface (front side), page 22).
 Connect the USB stick to the USB socket provided for it on the front side of the
instrument (
9.3.2

Updating

To update your GRAPHIX controller proceed as follows:
 In the measurement mode, tap the touchscreen for approximately 1 second.
o The main menu with an overview of the parameter groups is displayed.
 To scroll, use the button
o On the next page, main menu page 2/2 is displayed. The current page number is
displayed in the upper section of the display.
 In the main menu 2/2, tap on the parameter group Update.
 In the parameter group Update, tap on the button Start update.
o The question „Are you sure?" is displayed to ensure that you really want to run the
update.
 When not wanting to run the update, tap the button
o The main menu is then displayed again.
 To run the update, tap the button Start update.
o On the memory at the USB interface is installed the folder RECOVERY.
o Configuration data are stored in a file with the format rescue.txt on the USB memory
in the folder RECOVERY.
o The update process starts.
o After the update process has been completed the instrument will automatically
restart.
o The GRAPHIX controller will now be ready for operation again.
NOTICE:
Wait for the instrument to restart automatically after the update process has
run. While the update process is running do not switch the instrument off.
Avoid an interruption of the voltage supply of the system. Avoid powering
down the instrument while updating is in progress.
After having run the update, all parameter settings will have been reset to their factory
defaults ( 4.1.2 Default Parameters (factory defaults), page 17). Restore configuration
data stored automatically with the update procedure
page 109).
110
Figure 13, B, page 30)
.
( Chapter 4.6.5 USB-A
to cancel the update process.
( Chapter 9.2.2 Restore Data,
