Figure 76 – Selection Of The Desired Channel - LEYBOLD GRAPHIX ONE Instruction Manual

 To accept, tap the button
o Now the parameter selection display is displayed again.
o In the entry windows for the parameters SP-ON and SP-OFF automatically the
smallest possible values for these parameters are displayed corresponding to the
connected sensor.
 Tap on the entry window in order to configure the values for the parameters SP-ON
and SP-OFF according to your requirements.
o The window for entering the values for the switching thresholds opens.
 Enter the value by way of numbers and characters.
o The entered value is displayed in the upper area of the display field.
 To delete the entire value tap the button CLR.
o The displayed value is deleted.
 To delete the last character, which was entered, tap the button DEL.
o The last character is deleted.
 To save and accept, tap the button OK.
o The set up value is saved.
o The parameter selection menu is displayed again.
 To exit without saving, tap the button ESC.
o The initially set up value is retained.
o The parameter selection menu is displayed again.
GA300550402_002_C1 – 10/2016

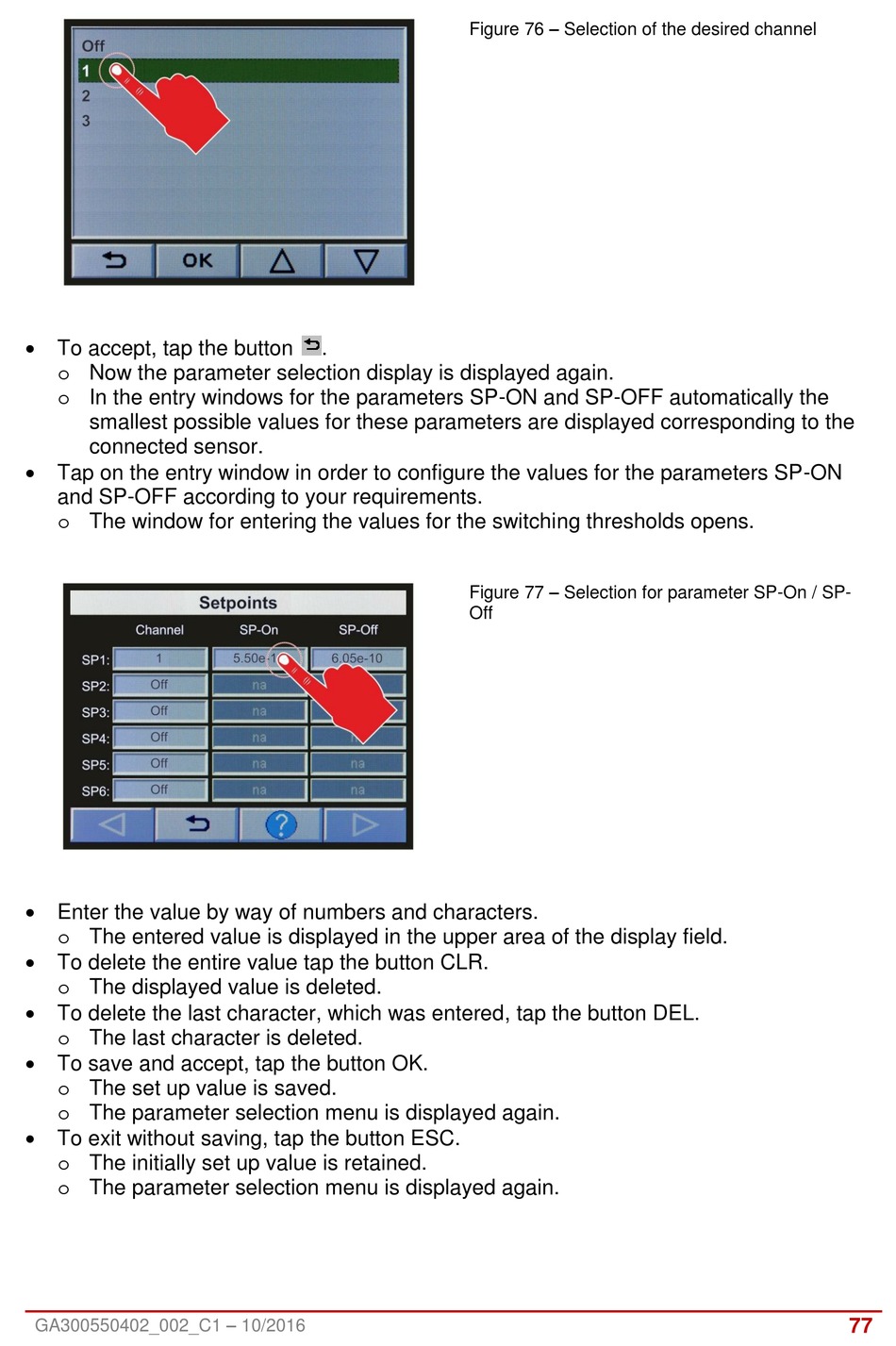

Figure 76 – Selection of the desired channel
.
