6.4.2.3

Switching the High Vacuum Measurement Circuit On

For the PENNINGVAC sensors PTR81N, PTR225, PTR225N, PTR225S, PTR225SN,
PTR237 and PTR237N, the high vacuum measurement circuit can be switched on manually.
For this, the parameter Sensor on in parameter group Channel 1 ... 3 must be set to Manual
( Chapter 7.1.13 Sensor Switch-on Type (Sensor On), page 72).
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The high vacuum measurement circuit is enabled. In the display field for the
corresponding measurement channel the yellow status symbol

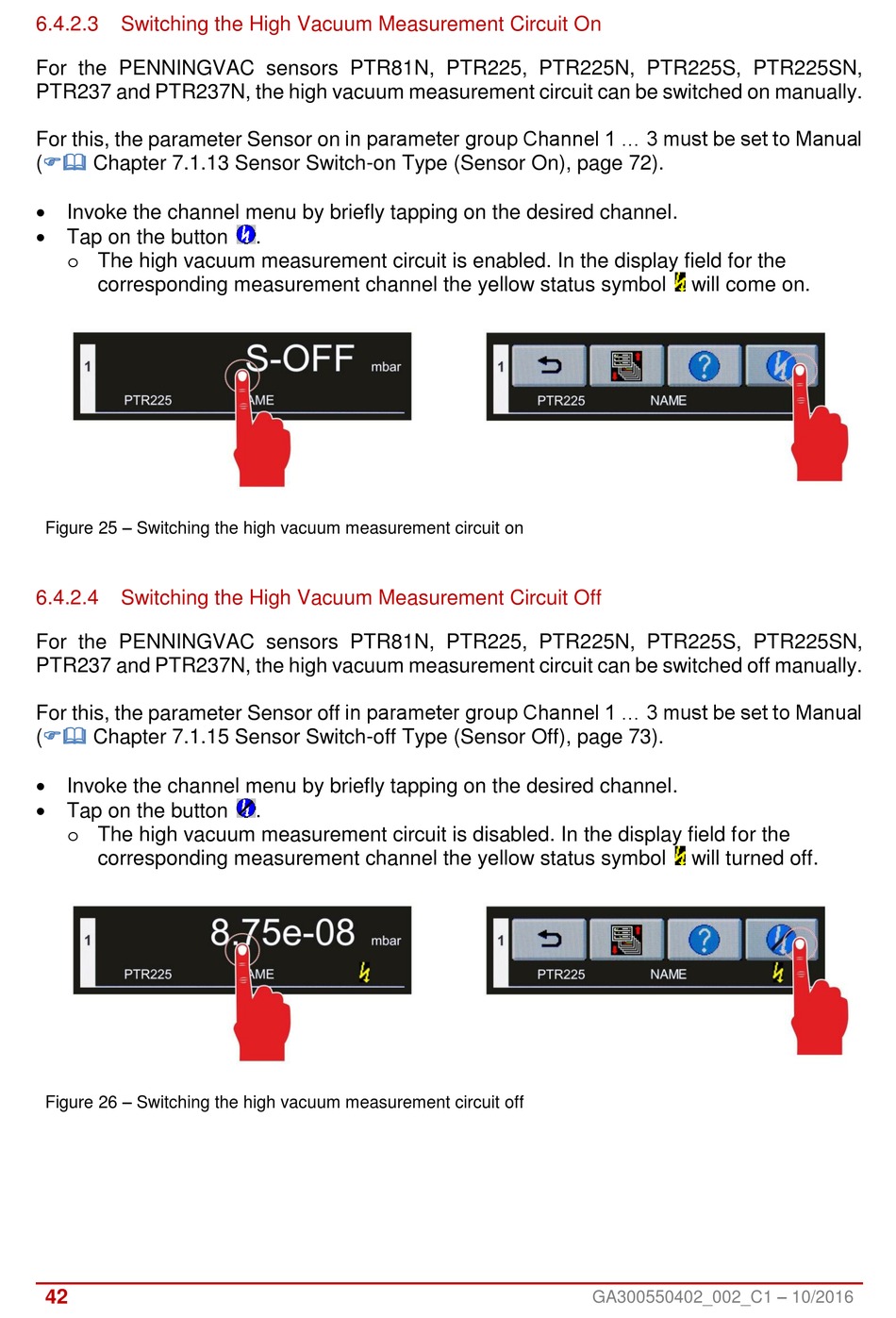

Figure 25 – Switching the high vacuum measurement circuit on
6.4.2.4

Switching the High Vacuum Measurement Circuit Off

For the PENNINGVAC sensors PTR81N, PTR225, PTR225N, PTR225S, PTR225SN,
PTR237 and PTR237N, the high vacuum measurement circuit can be switched off manually.
For this, the parameter Sensor off in parameter group Channel 1 ... 3 must be set to Manual
( Chapter 7.1.15 Sensor Switch-off Type (Sensor Off), page 73).
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The high vacuum measurement circuit is disabled. In the display field for the
corresponding measurement channel the yellow status symbol
Figure 26 – Switching the high vacuum measurement circuit off
