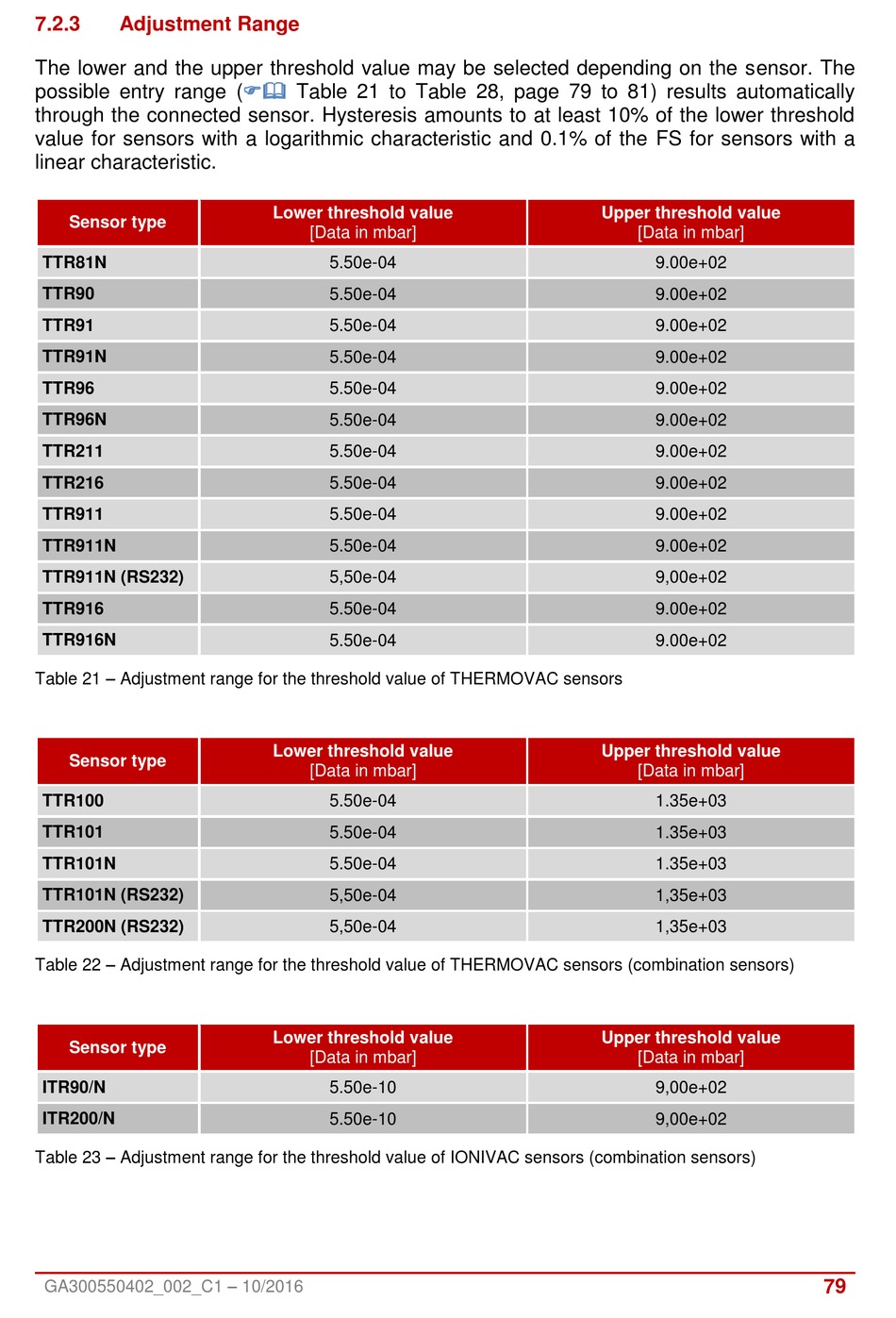

7.2.3

Adjustment Range

The lower and the upper threshold value may be selected depending on the sensor. The
possible entry range
through the connected sensor. Hysteresis amounts to at least 10% of the lower threshold
value for sensors with a logarithmic characteristic and 0.1% of the FS for sensors with a
linear characteristic.
Sensor type
TTR81N
TTR90
TTR91
TTR91N
TTR96
TTR96N
TTR211
TTR216
TTR911
TTR911N
TTR911N (RS232)
TTR916
TTR916N
Table 21 – Adjustment range for the threshold value of THERMOVAC sensors
Sensor type
TTR100
TTR101
TTR101N
TTR101N (RS232)
TTR200N (RS232)
Table 22 – Adjustment range for the threshold value of THERMOVAC sensors (combination sensors)
Sensor type
ITR90/N
ITR200/N
Table 23 – Adjustment range for the threshold value of IONIVAC sensors (combination sensors)
GA300550402_002_C1 – 10/2016
( Table 21 to Table 28, page 79 to 81) results automatically
Lower threshold value
[Data in mbar]
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5.50e-04
5,50e-04
5.50e-04
5.50e-04
Lower threshold value
[Data in mbar]
5.50e-04
5.50e-04
5.50e-04
5,50e-04
5,50e-04
Lower threshold value
[Data in mbar]
5.50e-10
5.50e-10
Upper threshold value
[Data in mbar]
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9.00e+02
9,00e+02
9.00e+02
9.00e+02
Upper threshold value
[Data in mbar]
1.35e+03
1.35e+03
1.35e+03
1,35e+03
1,35e+03
Upper threshold value
[Data in mbar]
9,00e+02
9,00e+02
