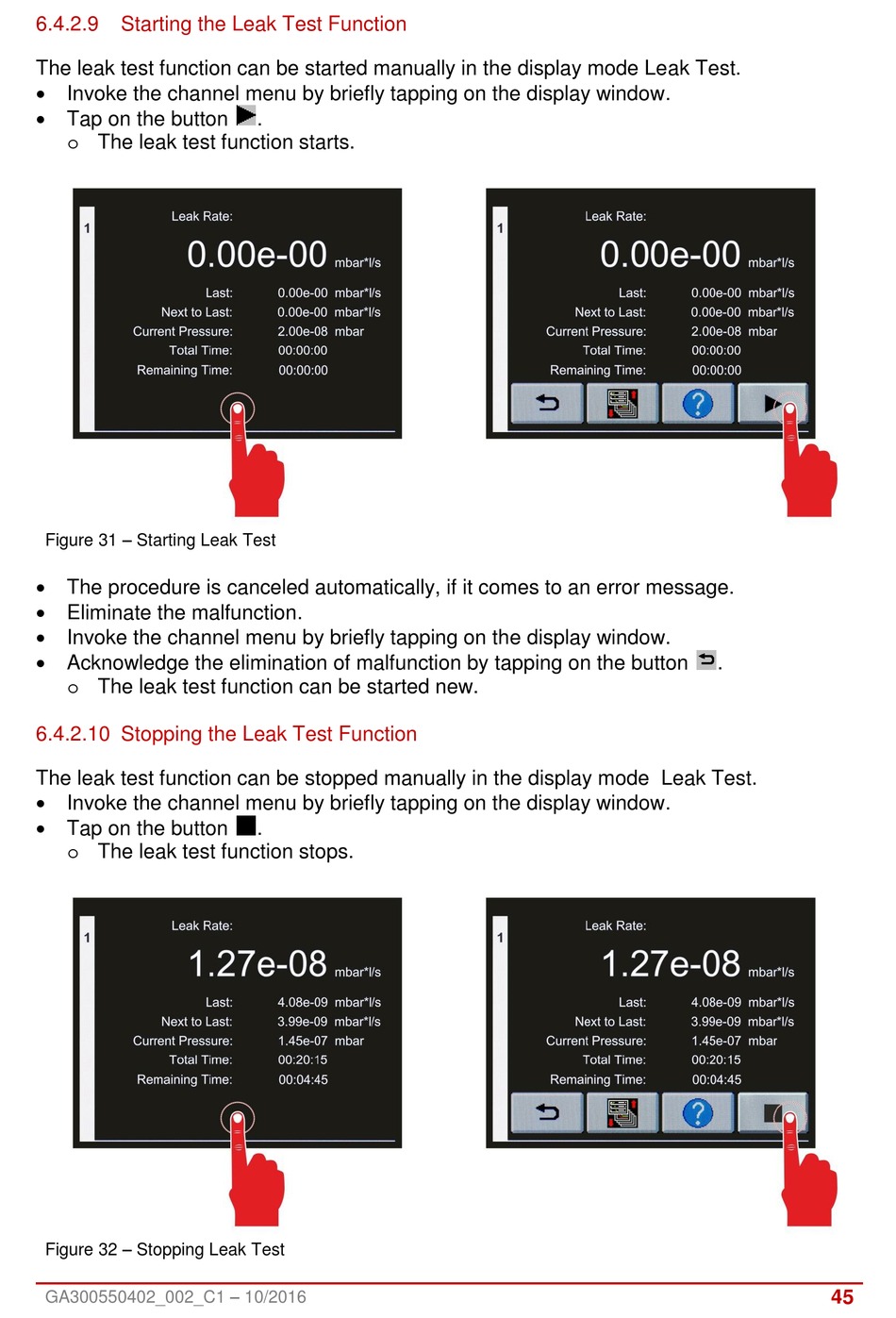

Starting The Leak Test Function; 6.4.2.10 Stopping The Leak Test Function - LEYBOLD GRAPHIX ONE Instruction Manual

6.4.2.9

Starting the Leak Test Function

The leak test function can be started manually in the display mode Leak Test.
 Invoke the channel menu by briefly tapping on the display window.
 Tap on the button
o The leak test function starts.
Figure 31 – Starting Leak Test
 The procedure is canceled automatically, if it comes to an error message.
 Eliminate the malfunction.
 Invoke the channel menu by briefly tapping on the display window.
 Acknowledge the elimination of malfunction by tapping on the button
o The leak test function can be started new.

6.4.2.10 Stopping the Leak Test Function

The leak test function can be stopped manually in the display mode Leak Test.
 Invoke the channel menu by briefly tapping on the display window.
 Tap on the button
o The leak test function stops.
Figure 32 – Stopping Leak Test
GA300550402_002_C1 – 10/2016
.
.
.
45
