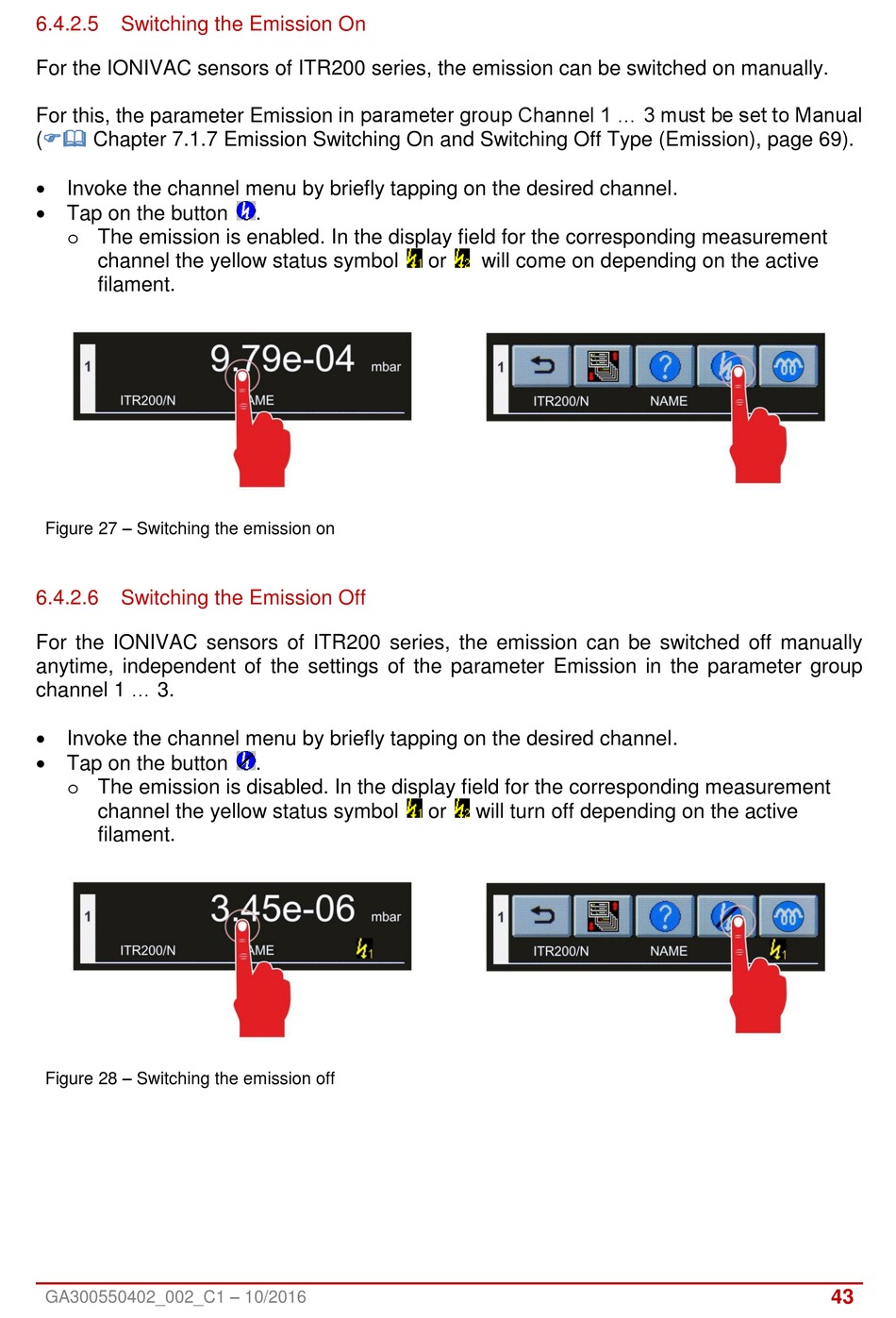

6.4.2.5

Switching the Emission On

For the IONIVAC sensors of ITR200 series, the emission can be switched on manually.
For this, the parameter Emission in parameter group Channel 1 ... 3 must be set to Manual
( Chapter 7.1.7 Emission Switching On and Switching Off Type (Emission), page 69).
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The emission is enabled. In the display field for the corresponding measurement
channel the yellow status symbol
filament.
Figure 27 – Switching the emission on
6.4.2.6

Switching the Emission Off

For the IONIVAC sensors of ITR200 series, the emission can be switched off manually
anytime, independent of the settings of the parameter Emission in the parameter group
channel 1 ... 3.
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The emission is disabled. In the display field for the corresponding measurement
channel the yellow status symbol
filament.
Figure 28 – Switching the emission off
GA300550402_002_C1 – 10/2016
.
.
or will come on depending on the active
or will turn off depending on the active
43
