Display Mode Speedo

The display mode Speedo allows you to display the measured value in the shape of a
speedometer. The mantissa is displayed as a round progress, whereas the exponent and
the display unit are displayed centrally. Additionally, measured values and status messages
of the sensors connected to the other channels are displayed at the bottom.
If an error occurs, the warning symbol
field. In case of a notice the warning symbol
Error messages for the other channels are shown in red font. If a notice is present, the
measured value is presented in yellow font.
6.1.2.5

Display Mode Leak Test

The display mode Leak Test allows you to display the leak rate determination using pressure
rise method. Besides the current, last and next-to-last leak rate, current pressure, total time
since start of the procedure and remaining time for the current interval are displayed.
Error messages are shown instead of the current pressure in red font. If a notice is present
for the connected sensor, the current pressure is presented in yellow font.
34
appears at the right-hand top area of the display
appears.

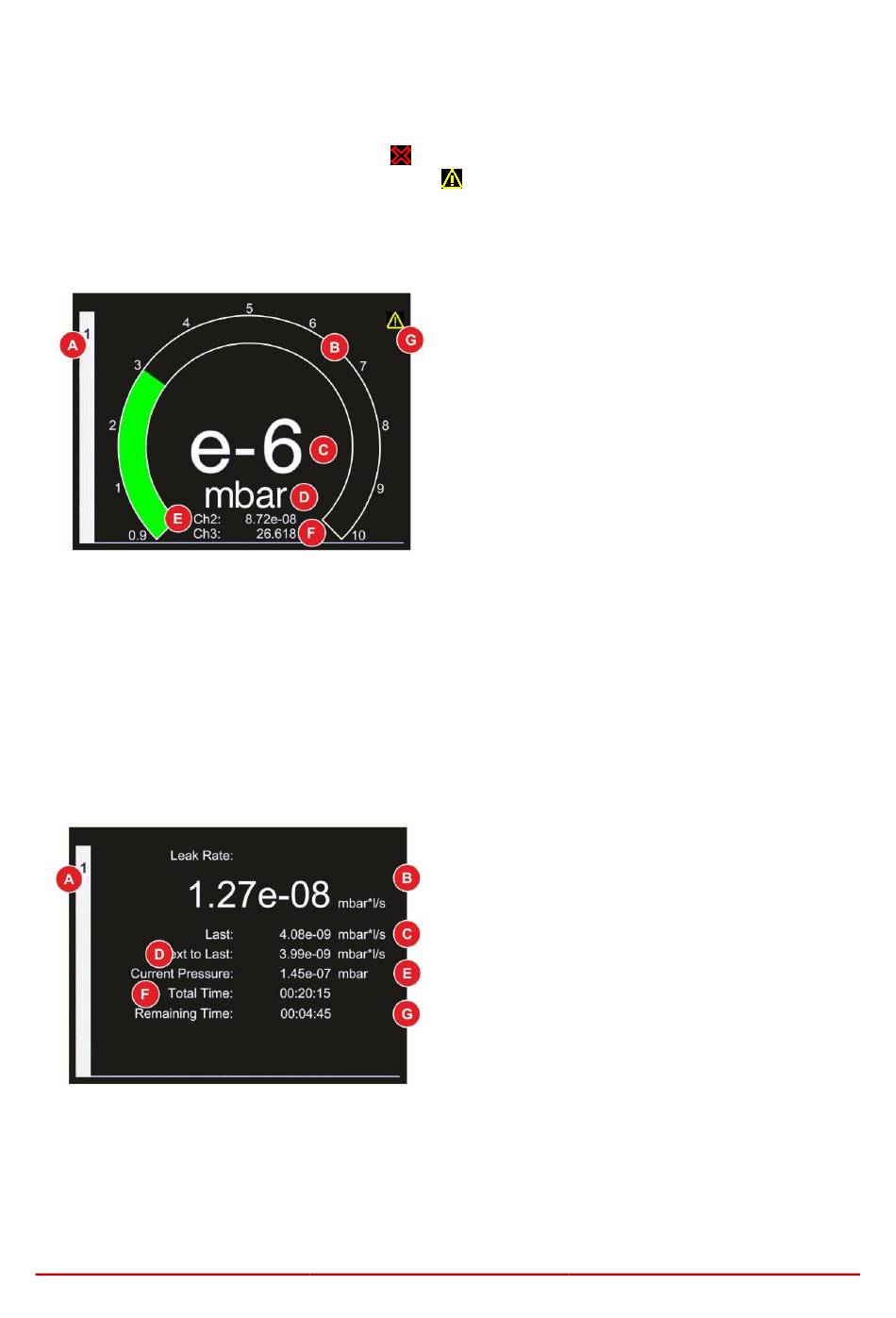

Figure 18 – Display mode Speedo
A Display field for measurement channel
B Mantissa of the measured value as
progress
C Exponent of the measured value or
warning symbol
D Display unit
E Measured value or status message for one
further channel (GRAPHIX TWO and
THREE only)
F Measured value or status message for one
further channel (GRAPHIX THREE only)
G Warning symbol
Figure 19 – Display mode Leak Test
A Display field for measurement channel
B Currently determined leak rate
C Last determined leak rate
D Next-to-last determined leak rate
E Currently measured pressure or status
message
F Total time since start of the procedure
[hh:mm:ss]
G Remaining time for current interval
[hh:mm:ss]
