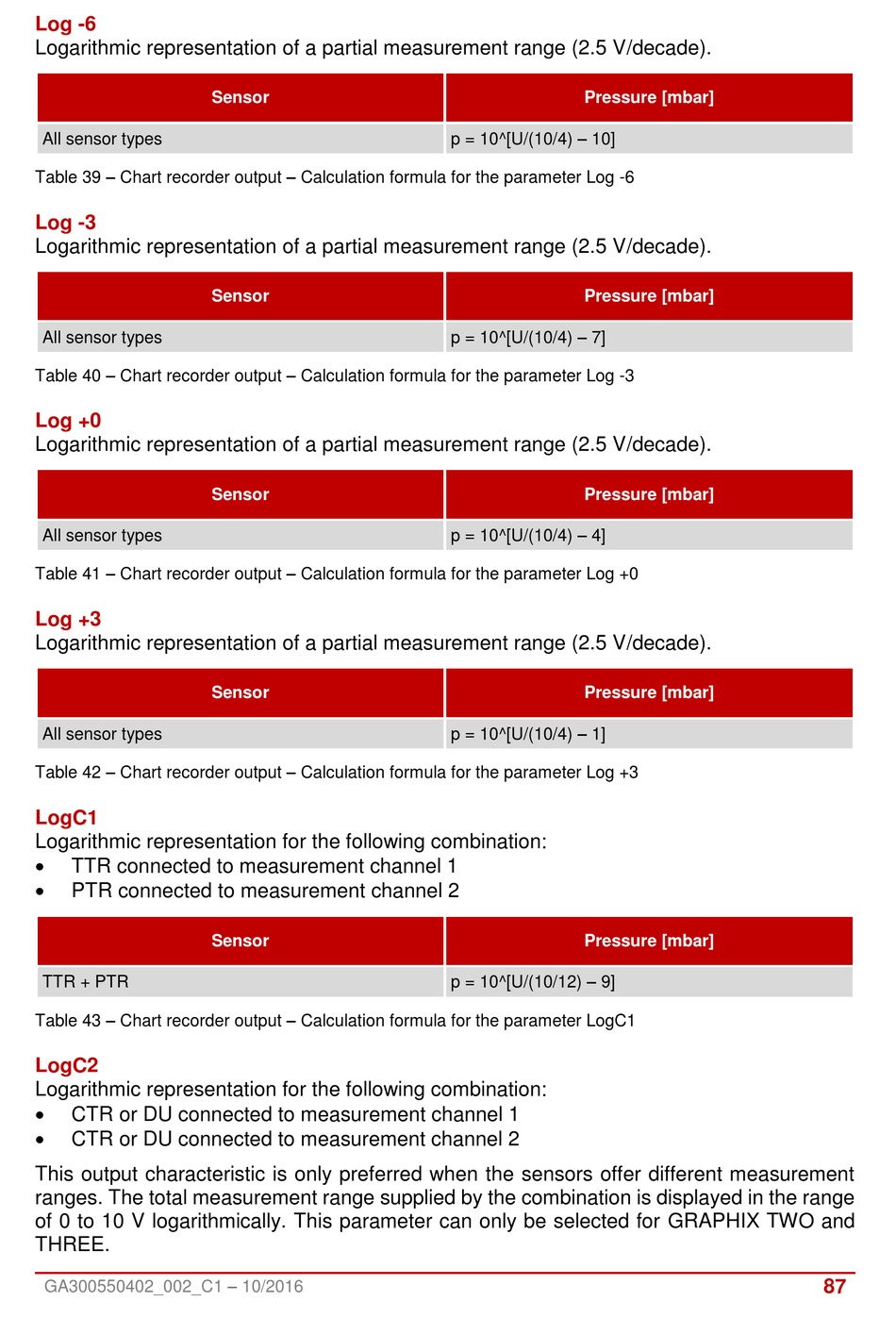

Log -6
Logarithmic representation of a partial measurement range (2.5 V/decade).
All sensor types
Table 39 – Chart recorder output – Calculation formula for the parameter Log -6
Log -3
Logarithmic representation of a partial measurement range (2.5 V/decade).
All sensor types
Table 40 – Chart recorder output – Calculation formula for the parameter Log -3
Log +0
Logarithmic representation of a partial measurement range (2.5 V/decade).
All sensor types
Table 41 – Chart recorder output – Calculation formula for the parameter Log +0
Log +3
Logarithmic representation of a partial measurement range (2.5 V/decade).
All sensor types
Table 42 – Chart recorder output – Calculation formula for the parameter Log +3
LogC1
Logarithmic representation for the following combination:

TTR connected to measurement channel 1

PTR connected to measurement channel 2
TTR + PTR
Table 43 – Chart recorder output – Calculation formula for the parameter LogC1
LogC2
Logarithmic representation for the following combination:

CTR or DU connected to measurement channel 1

CTR or DU connected to measurement channel 2
This output characteristic is only preferred when the sensors offer different measurement
ranges. The total measurement range supplied by the combination is displayed in the range
of 0 to 10 V logarithmically. This parameter can only be selected for GRAPHIX TWO and
THREE.
GA300550402_002_C1 – 10/2016
Sensor
Sensor
Sensor
Sensor
Sensor
Pressure [mbar]
p = 10^[U/(10/4) – 10]
Pressure [mbar]
p = 10^[U/(10/4) – 7]
Pressure [mbar]
p = 10^[U/(10/4) – 4]
Pressure [mbar]
p = 10^[U/(10/4) – 1]
Pressure [mbar]
p = 10^[U/(10/12) – 9]
87
