Operation
6.
6.1
Front Panel

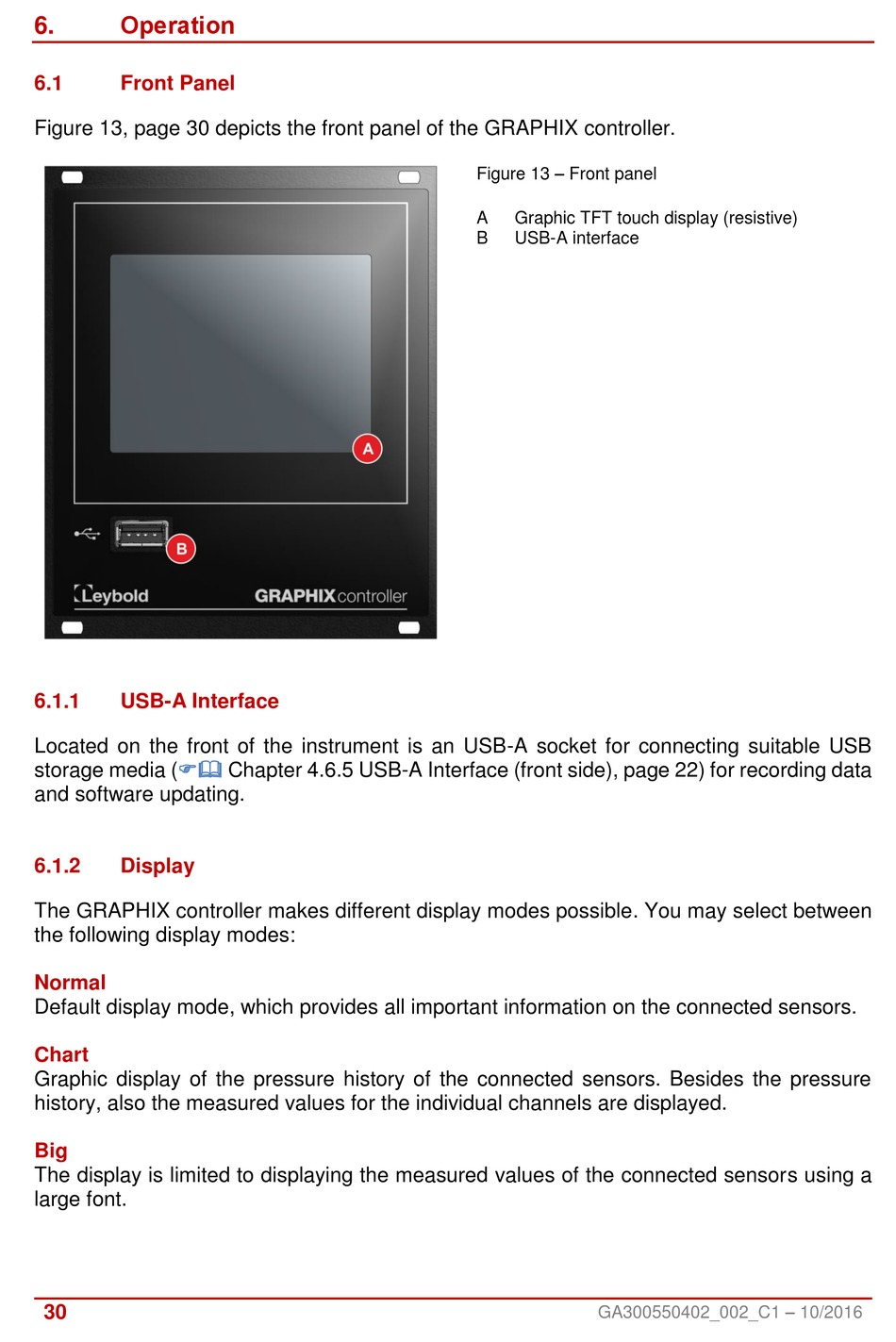

Figure 13, page 30 depicts the front panel of the GRAPHIX controller.
6.1.1
USB-A Interface
Located on the front of the instrument is an USB-A socket for connecting suitable USB
storage media
(
and software updating.
6.1.2
Display
The GRAPHIX controller makes different display modes possible. You may select between
the following display modes:
Normal
Default display mode, which provides all important information on the connected sensors.
Chart
Graphic display of the pressure history of the connected sensors. Besides the pressure
history, also the measured values for the individual channels are displayed.
Big
The display is limited to displaying the measured values of the connected sensors using a
large font.
30
Chapter 4.6.5 USB-A Interface (front side), page 22) for recording data
Figure 13 – Front panel
A
Graphic TFT touch display (resistive)
B
USB-A interface
GA300550402_002_C1 – 10/2016
