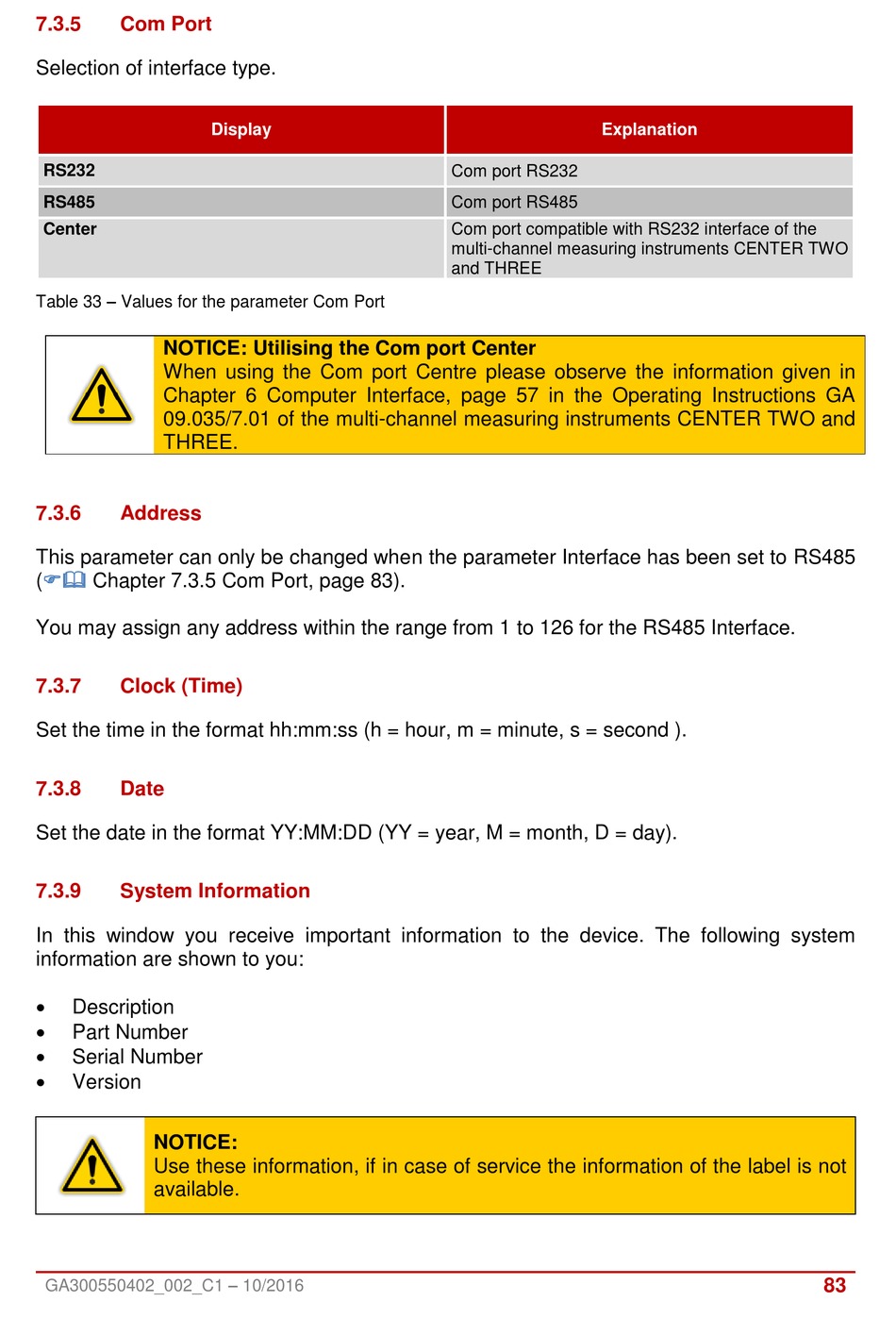

Com Port; Address; Clock (Time); Date - LEYBOLD GRAPHIX ONE Instruction Manual

7.3.5

Com Port

Selection of interface type.
RS232
RS485
Center
Table 33 – Values for the parameter Com Port
NOTICE: Utilising the Com port Center
When using the Com port Centre please observe the information given in
Chapter 6 Computer Interface, page 57 in the Operating Instructions GA
09.035/7.01 of the multi-channel measuring instruments CENTER TWO and
THREE.
7.3.6

Address

This parameter can only be changed when the parameter Interface has been set to RS485
( Chapter 7.3.5 Com Port, page 83).
You may assign any address within the range from 1 to 126 for the RS485 Interface.
7.3.7

Clock (Time)

Set the time in the format hh:mm:ss (h = hour, m = minute, s = second ).
7.3.8

Date

Set the date in the format YY:MM:DD (YY = year, M = month, D = day).
7.3.9

System Information

In this window you receive important information to the device. The following system
information are shown to you:

Description

Part Number

Serial Number

Version
NOTICE:
Use these information, if in case of service the information of the label is not
available.
GA300550402_002_C1 – 10/2016
Display Explanation
Com port RS232
Com port RS485
Com port compatible with RS232 interface of the
multi-channel measuring instruments CENTER TWO
and THREE
83
