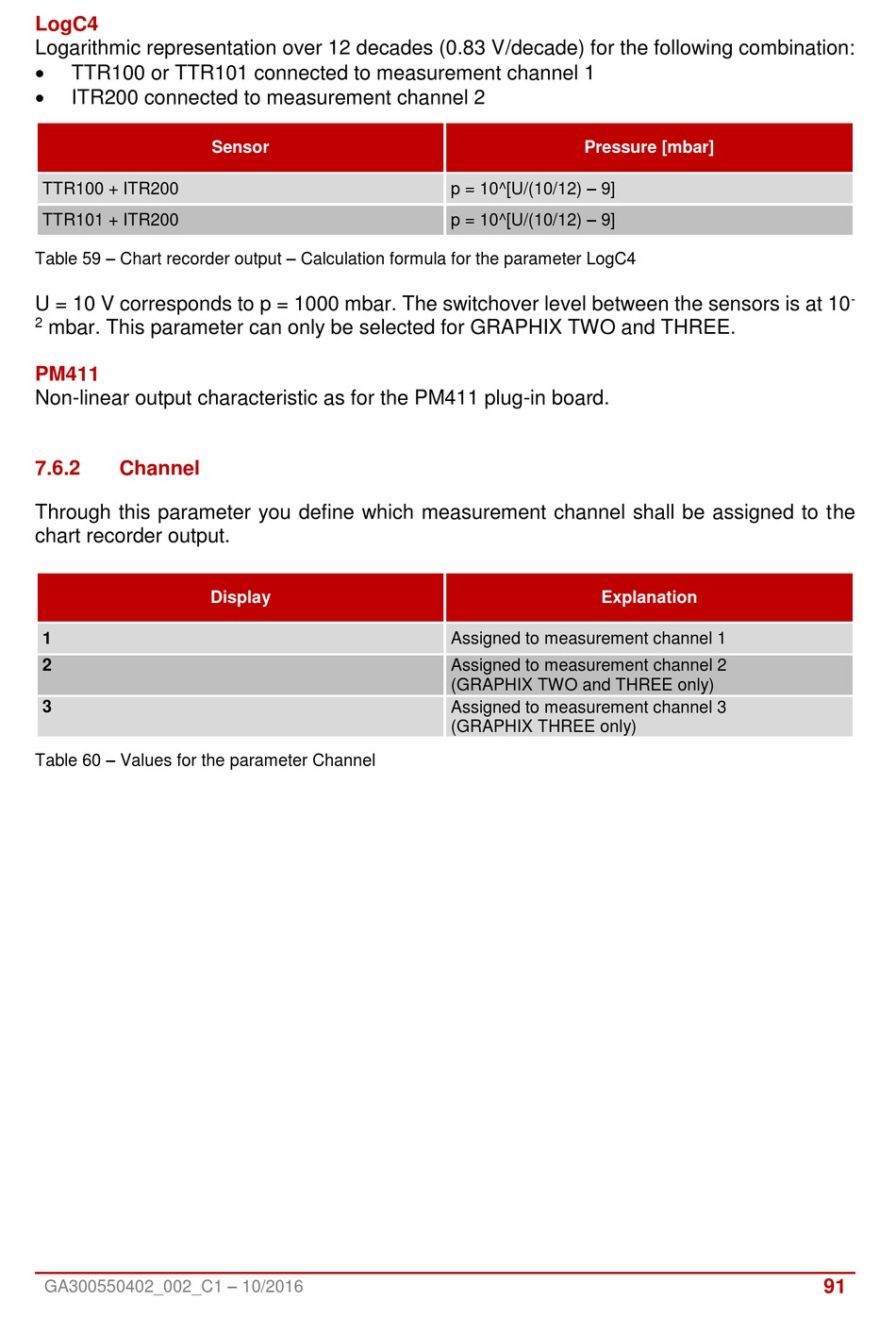

LogC4
Logarithmic representation over 12 decades (0.83 V/decade) for the following combination:
TTR100 or TTR101 connected to measurement channel 1
ITR200 connected to measurement channel 2
TTR100 + ITR200
TTR101 + ITR200
Table 59 – Chart recorder output – Calculation formula for the parameter LogC4
U = 10 V corresponds to p = 1000 mbar. The switchover level between the sensors is at 10
2
mbar. This parameter can only be selected for GRAPHIX TWO and THREE.
PM411
Non-linear output characteristic as for the PM411 plug-in board.
7.6.2

Channel

Through this parameter you define which measurement channel shall be assigned to the
chart recorder output.
1
2
3
Table 60 – Values for the parameter Channel
GA300550402_002_C1 – 10/2016
Sensor
Display
Pressure [mbar]
p = 10^[U/(10/12) – 9]
p = 10^[U/(10/12) – 9]
Explanation
Assigned to measurement channel 1
Assigned to measurement channel 2
(GRAPHIX TWO and THREE only)
Assigned to measurement channel 3
(GRAPHIX THREE only)
-
91
