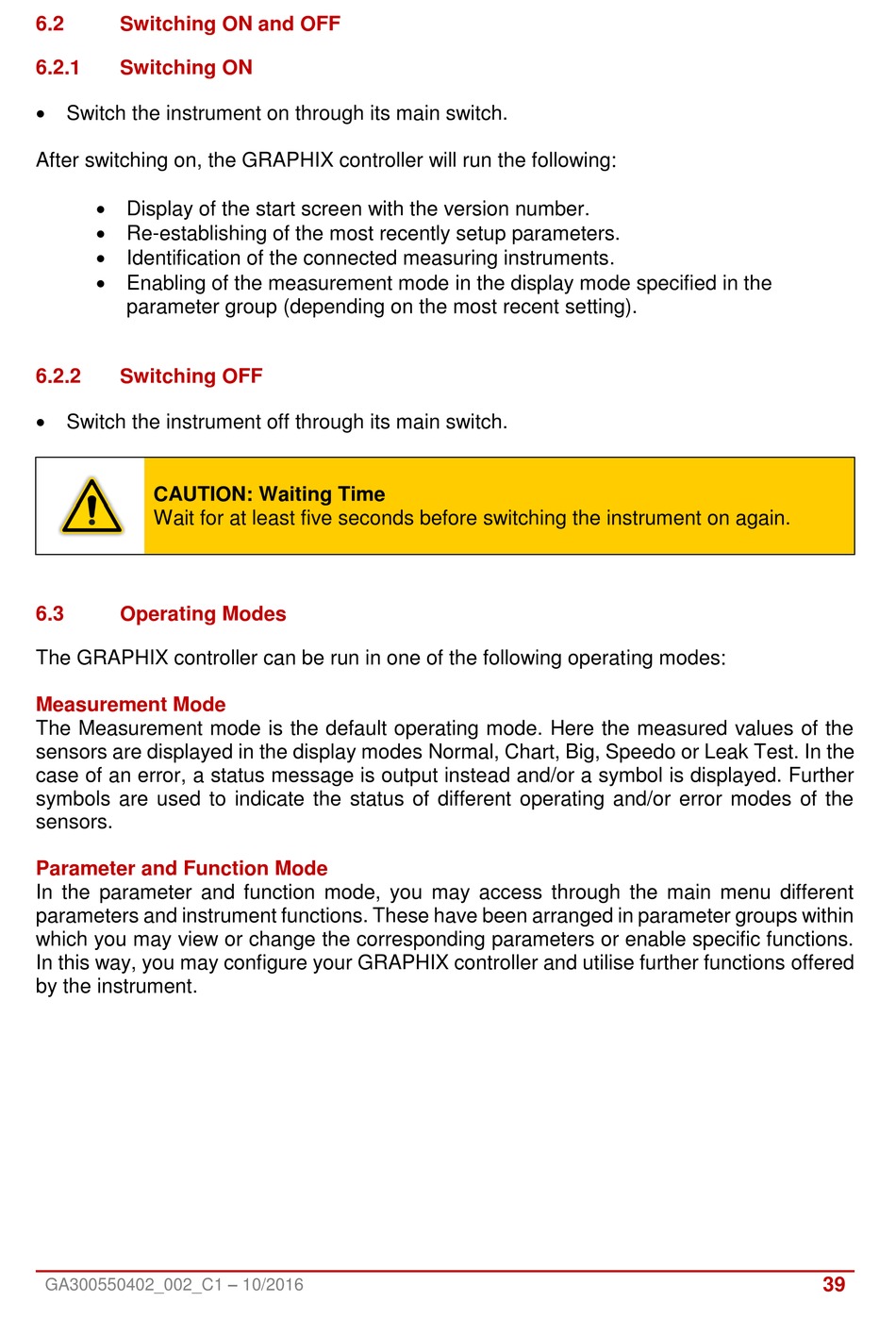

6.2

Switching ON and OFF

6.2.1

Switching ON

 Switch the instrument on through its main switch.
After switching on, the GRAPHIX controller will run the following:
 Display of the start screen with the version number.
 Re-establishing of the most recently setup parameters.
 Identification of the connected measuring instruments.
 Enabling of the measurement mode in the display mode specified in the
parameter group (depending on the most recent setting).
6.2.2

Switching OFF

 Switch the instrument off through its main switch.
CAUTION: Waiting Time
Wait for at least five seconds before switching the instrument on again.
6.3

Operating Modes

The GRAPHIX controller can be run in one of the following operating modes:
Measurement Mode
The Measurement mode is the default operating mode. Here the measured values of the
sensors are displayed in the display modes Normal, Chart, Big, Speedo or Leak Test. In the
case of an error, a status message is output instead and/or a symbol is displayed. Further
symbols are used to indicate the status of different operating and/or error modes of the
sensors.
Parameter and Function Mode
In the parameter and function mode, you may access through the main menu different
parameters and instrument functions. These have been arranged in parameter groups within
which you may view or change the corresponding parameters or enable specific functions.
In this way, you may configure your GRAPHIX controller and utilise further functions offered
by the instrument.
