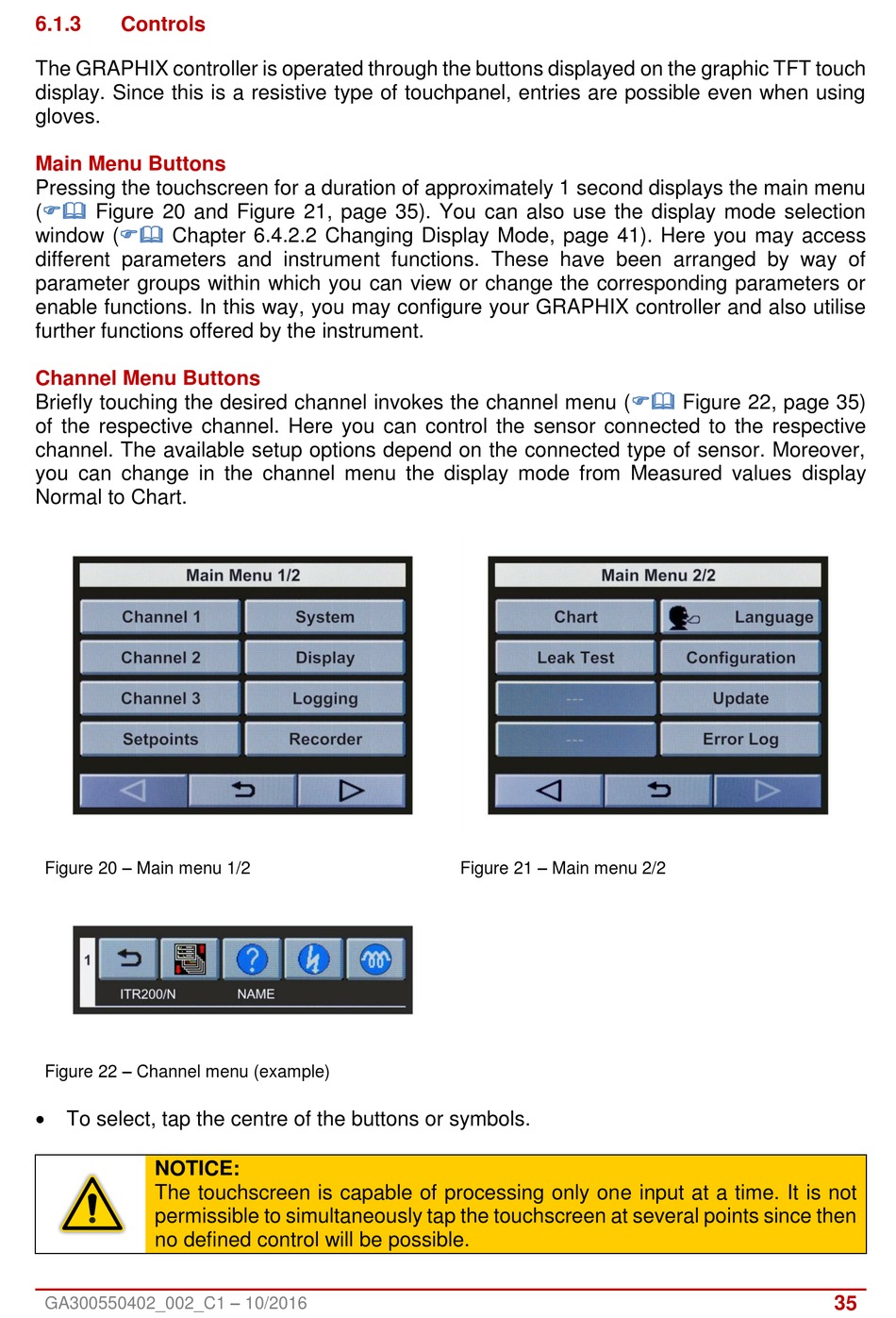

6.1.3

Controls

The GRAPHIX controller is operated through the buttons displayed on the graphic TFT touch
display. Since this is a resistive type of touchpanel, entries are possible even when using
gloves.
Main Menu Buttons
Pressing the touchscreen for a duration of approximately 1 second displays the main menu
( Figure 20 and Figure 21, page 35). You can also use the display mode selection
window ( Chapter 6.4.2.2 Changing Display Mode, page 41). Here you may access
different parameters and instrument functions. These have been arranged by way of
parameter groups within which you can view or change the corresponding parameters or
enable functions. In this way, you may configure your GRAPHIX controller and also utilise
further functions offered by the instrument.
Channel Menu Buttons
Briefly touching the desired channel invokes the channel menu
of the respective channel. Here you can control the sensor connected to the respective
channel. The available setup options depend on the connected type of sensor. Moreover,
you can change in the channel menu the display mode from Measured values display
Normal to Chart.
Figure 20 – Main menu 1/2
Figure 22 – Channel menu (example)
 To select, tap the centre of the buttons or symbols.
NOTICE:
The touchscreen is capable of processing only one input at a time. It is not
permissible to simultaneously tap the touchscreen at several points since then
no defined control will be possible.
GA300550402_002_C1 – 10/2016
(
Figure 21 – Main menu 2/2
Figure 22, page 35)
35
