Measured Values Filter (Filter) - LEYBOLD GRAPHIX ONE Instruction Manual

7.1.4

Measured Values Filter (Filter)

The measured values filter (Filter) allows you to better evaluate noisy signals or signals
suffering from interference. This filter is applied to the displayed values, the switching
functions and the analogue outputs.
You may set up the measured values filter to the following values:
Fast
The GRAPHIX controller will respond
rapidly to signal fluctuations. In this mode,
it will be relatively sensitive with respect to
any signal interferences.
Medium
This is the default setting. It offers a good
compromise between speed of response
and interference immunity.
Slow
The GRAPHIX controller responds slowly
to signal fluctuations. Because of this, it is
less sensitive with respect to any signal
interferences. This setting is recommended
for precise comparative measurements.
NOTICE:
This parameter has an effect only to analogue input signals. It is available
therefore only for analogue sensors, which are operated through the
connections C1, D1 and E1 on the rear of the instrument
26).
68

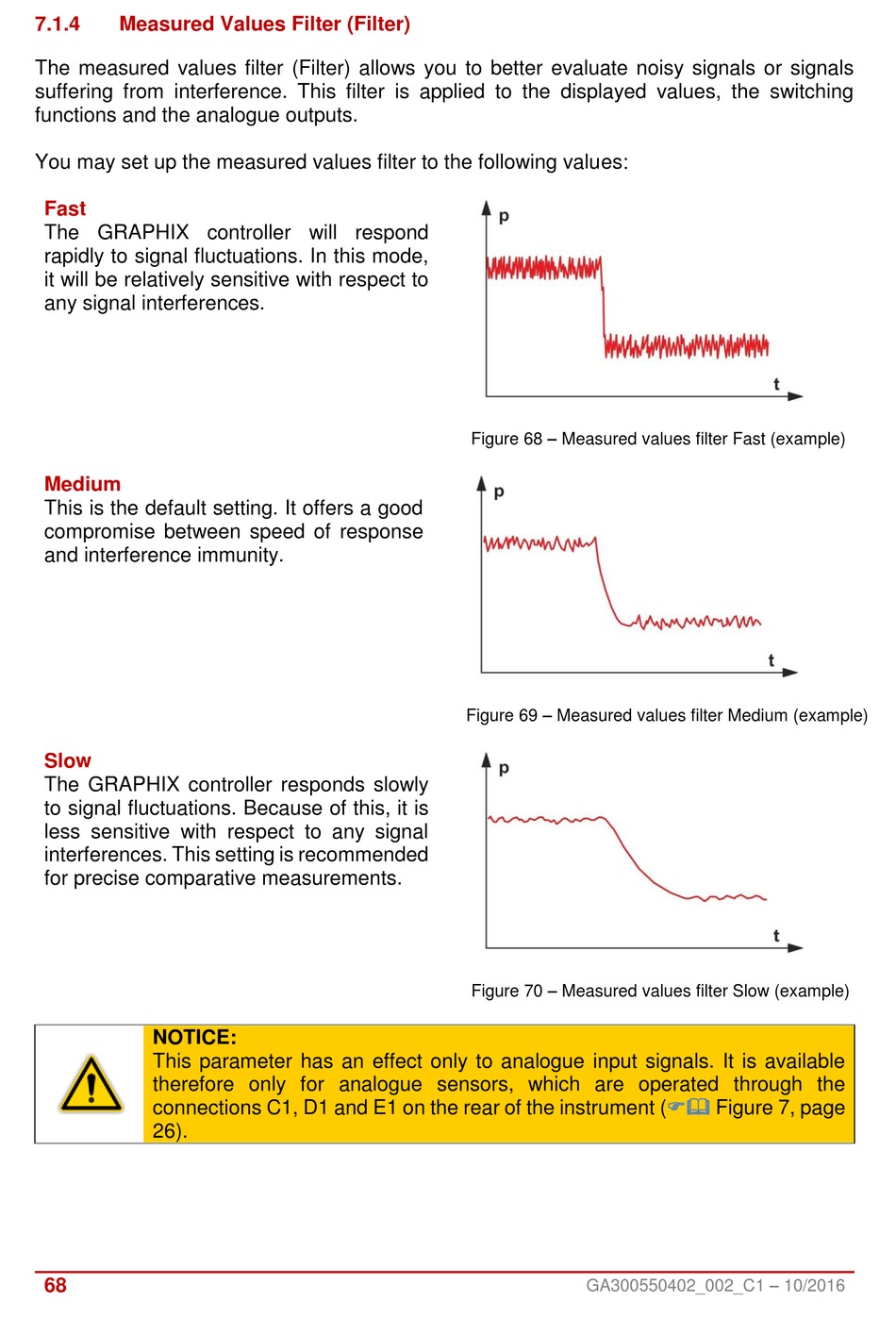

Figure 68 – Measured values filter Fast (example)
Figure 69 – Measured values filter Medium (example)
Figure 70 – Measured values filter Slow (example)
