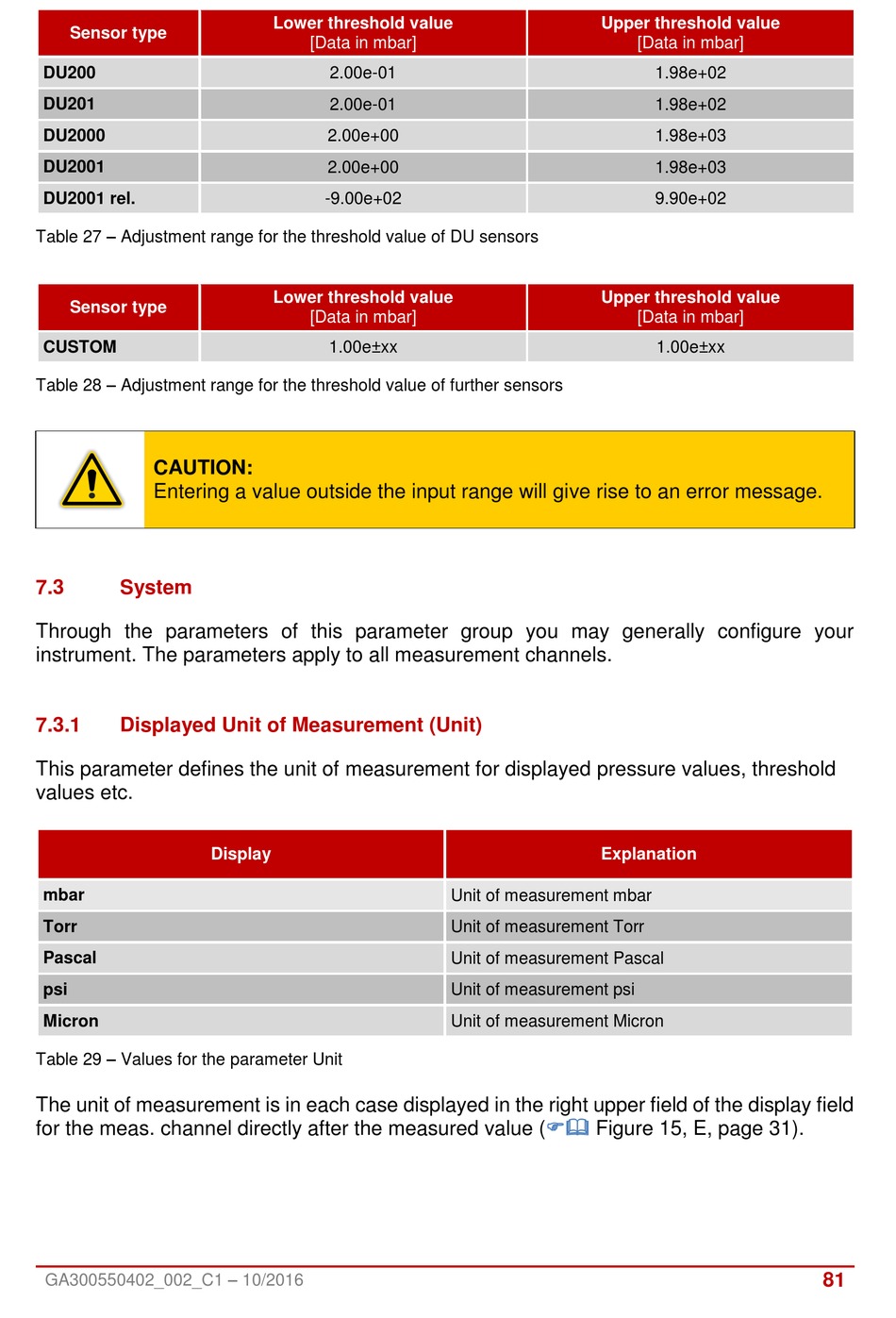

Sensor type
DU200
DU201
DU2000
DU2001
DU2001 rel.
Table 27 – Adjustment range for the threshold value of DU sensors
Sensor type
CUSTOM
Table 28 – Adjustment range for the threshold value of further sensors
CAUTION:
Entering a value outside the input range will give rise to an error message.
7.3

System

Through the parameters of this parameter group you may generally configure your
instrument. The parameters apply to all measurement channels.
7.3.1

Displayed Unit of Measurement (Unit)

This parameter defines the unit of measurement for displayed pressure values, threshold
values etc.
mbar
Torr
Pascal
psi
Micron
Table 29 – Values for the parameter Unit
The unit of measurement is in each case displayed in the right upper field of the display field
for the meas. channel directly after the measured value
GA300550402_002_C1 – 10/2016
Lower threshold value
[Data in mbar]
2.00e-01
2.00e-01
2.00e+00
2.00e+00
-9.00e+02
Lower threshold value
[Data in mbar]
1.00e±xx
Display
Upper threshold value
Upper threshold value
Explanation
Unit of measurement mbar
Unit of measurement Torr
Unit of measurement Pascal
Unit of measurement psi
Unit of measurement Micron
( Figure 15, E, page 31).
[Data in mbar]
1.98e+02
1.98e+02
1.98e+03
1.98e+03
9.90e+02
[Data in mbar]
1.00e±xx
