Sensor Type PTR90?
When connecting
commissioning PTR90? is displayed as the sensor type in the left bottom area of the display
field for the measurement channel:
 PTR82N
 PTR90
 PTR90N
To specify the connected sensor proceed as follows:
 Press in the measurement mode the touchscreen surface for approximately 1 second.
o The main menu with an overview of the parameter groups is displayed.
 Tap in the main menu on the parameter group of the desired channel.
o The parameters available for this parameter group are displayed.
GA300550402_002_C1 – 10/2016
the following PENNINGVAC sensors,

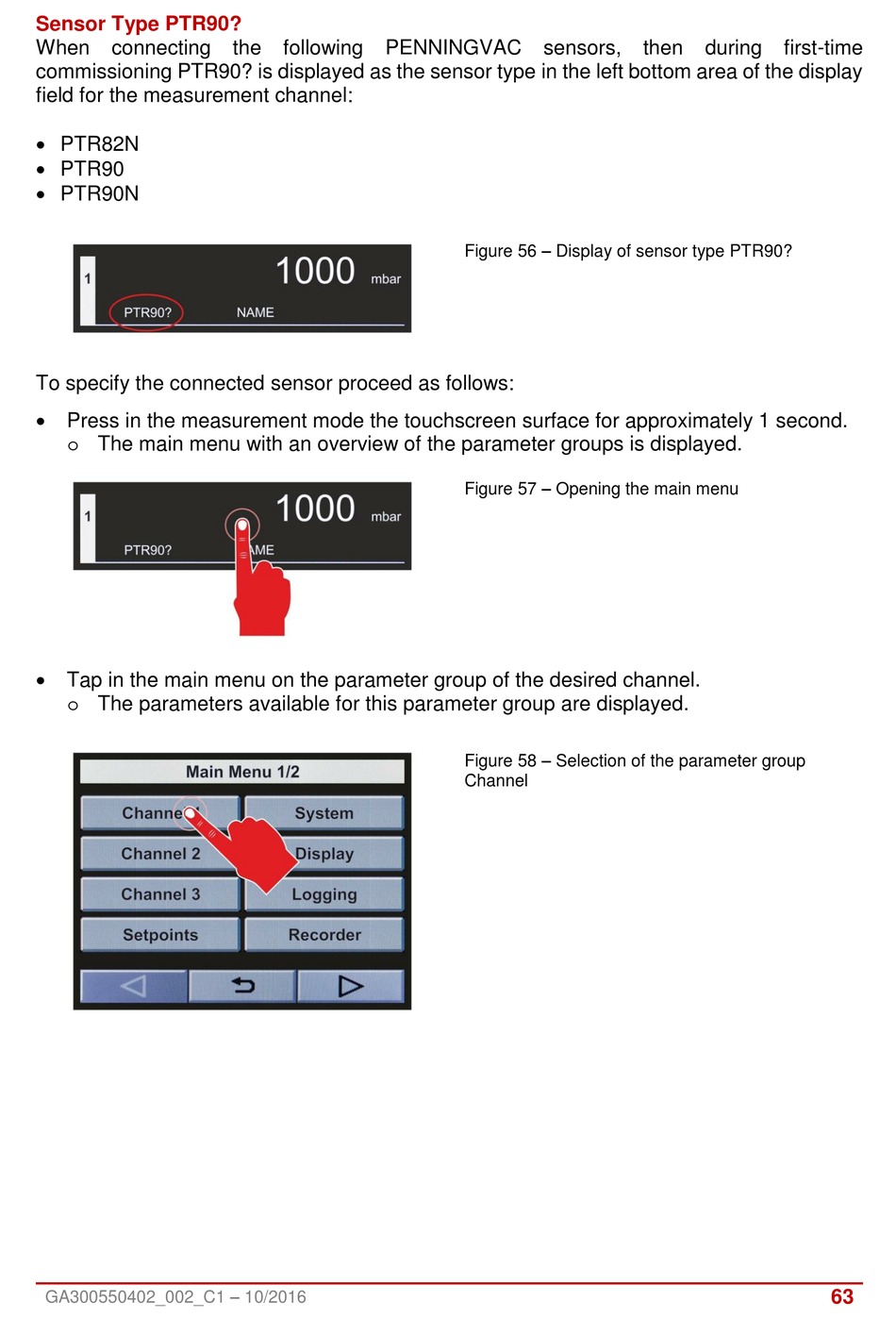

Figure 56 – Display of sensor type PTR90?
