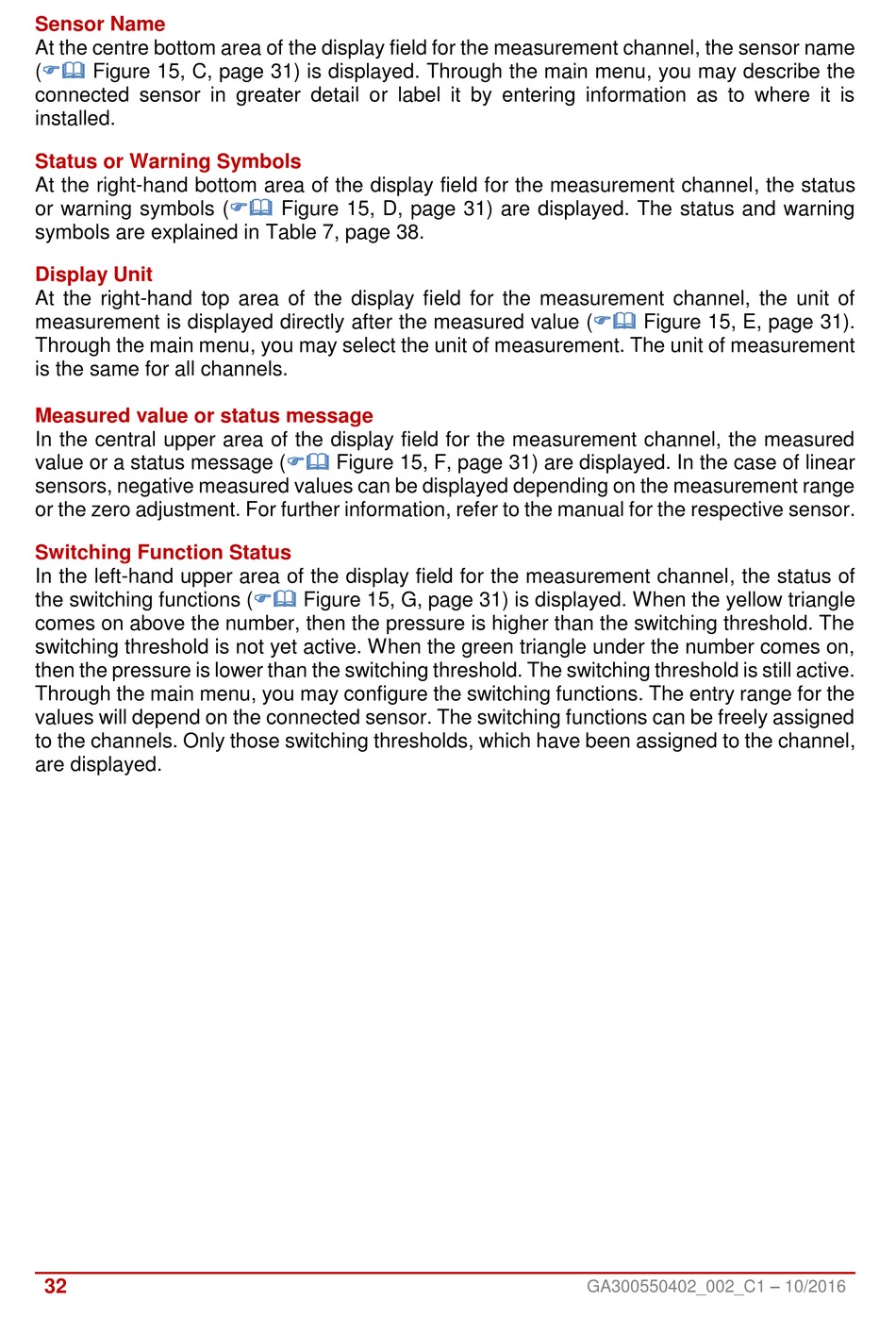

Sensor Name
At the centre bottom area of the display field for the measurement channel, the sensor name
( Figure 15, C, page 31) is displayed. Through the main menu, you may describe the
connected sensor in greater detail or label it by entering information as to where it is
installed.
Status or Warning Symbols
At the right-hand bottom area of the display field for the measurement channel, the status
or warning symbols ( Figure 15, D, page 31) are displayed. The status and warning
symbols are explained in Table 7, page 38.
Display Unit
At the right-hand top area of the display field for the measurement channel, the unit of
measurement is displayed directly after the measured value ( Figure 15, E, page 31).
Through the main menu, you may select the unit of measurement. The unit of measurement
is the same for all channels.
Measured value or status message
In the central upper area of the display field for the measurement channel, the measured
value or a status message ( Figure 15, F, page 31) are displayed. In the case of linear
sensors, negative measured values can be displayed depending on the measurement range
or the zero adjustment. For further information, refer to the manual for the respective sensor.
Switching Function Status
In the left-hand upper area of the display field for the measurement channel, the status of
the switching functions ( Figure 15, G, page 31) is displayed. When the yellow triangle
comes on above the number, then the pressure is higher than the switching threshold. The
switching threshold is not yet active. When the green triangle under the number comes on,
then the pressure is lower than the switching threshold. The switching threshold is still active.
Through the main menu, you may configure the switching functions. The entry range for the
values will depend on the connected sensor. The switching functions can be freely assigned
to the channels. Only those switching thresholds, which have been assigned to the channel,
are displayed.
