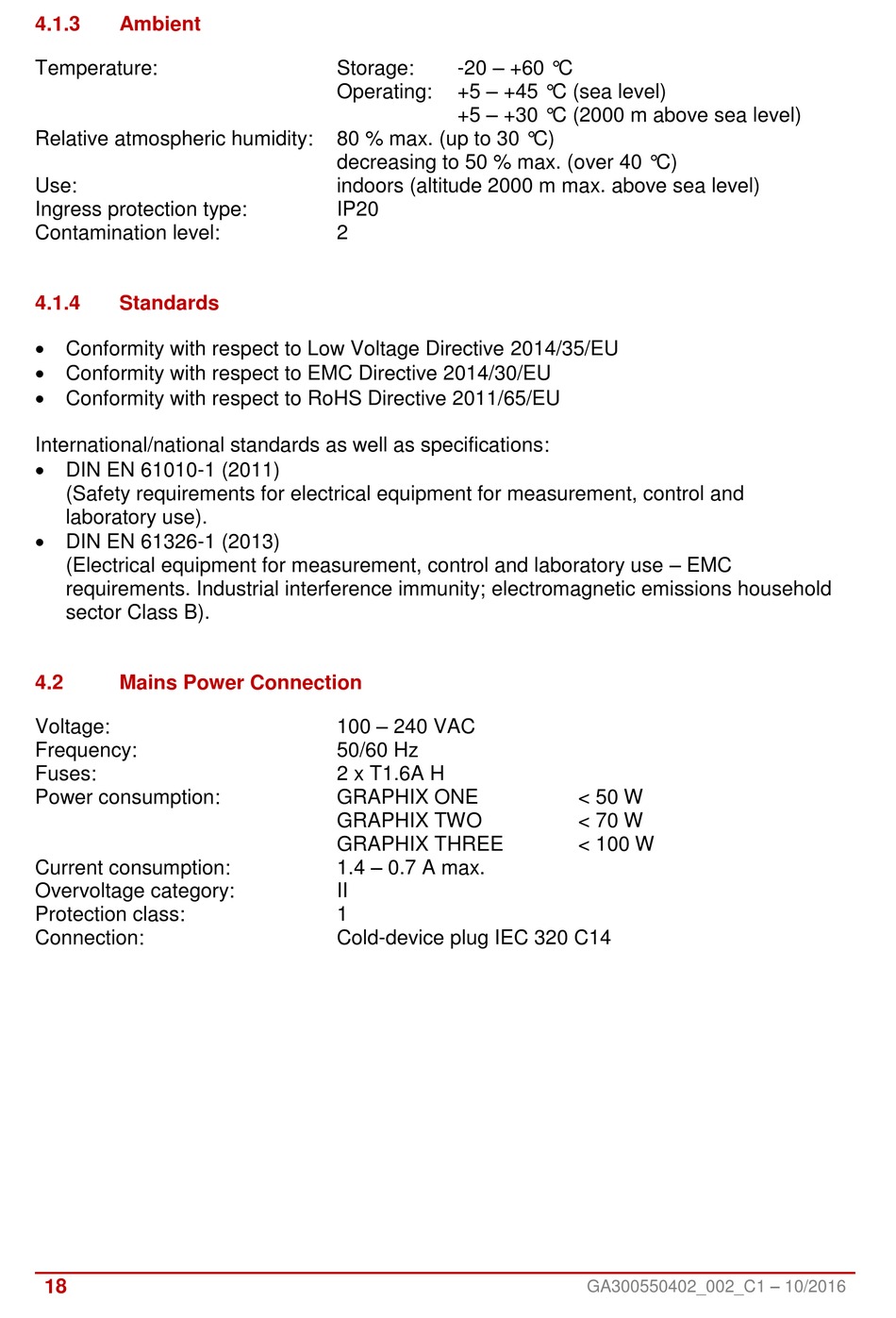

Ambient; Standards; Mains Power Connection - LEYBOLD GRAPHIX ONE Instruction Manual

4.1.3

Ambient

Temperature:
Relative atmospheric humidity:
Use:
Ingress protection type:
Contamination level:
4.1.4

Standards

 Conformity with respect to Low Voltage Directive 2014/35/EU
 Conformity with respect to EMC Directive 2014/30/EU
 Conformity with respect to RoHS Directive 2011/65/EU
International/national standards as well as specifications:
 DIN EN 61010-1 (2011)
(Safety requirements for electrical equipment for measurement, control and
laboratory use).
 DIN EN 61326-1 (2013)
(Electrical equipment for measurement, control and laboratory use – EMC
requirements. Industrial interference immunity; electromagnetic emissions household
sector Class B).
4.2

Mains Power Connection

Voltage:
Frequency:
Fuses:
Power consumption:
Current consumption:
Overvoltage category:
Protection class:
Connection:
18
-20 – +60 °C
Storage:
+5 – +45 °C (sea level)
Operating:
+5 – +30 °C (2000 m above sea level)
80 % max. (up to 30 °C)
decreasing to 50 % max. (over 40 °C)
indoors (altitude 2000 m max. above sea level)
IP20
2
100 – 240 VAC
50/60 Hz
2 x T1.6A H
GRAPHIX ONE
GRAPHIX TWO
GRAPHIX THREE
1.4 – 0.7 A max.
II
1
Cold-device plug IEC 320 C14
< 50 W
< 70 W
< 100 W
GA300550402_002_C1 – 10/2016
