Parameter and Function Mode

In the parameter and function mode, you may access through the main menu different
parameters and instrument functions. These have been arranged in parameter groups within
which you may view or change the corresponding parameters or enable specific functions.
In this way, you may configure your GRAPHIX controller and utilise further functions offered
by the instrument.
6.5.1

Operating Concept

 In the measurement mode, touch the touchscreen surface for approximately 1 second.
o You will now see the main menu with an overview of the parameter groups.
 To scroll, use the buttons
o You will then see the each case preceding or following page. In the upper area of
the display field, you can see which page is just being displayed.
 To exit the parameter and function mode tap on the button
o The instrument will now be running the measurement mode again.

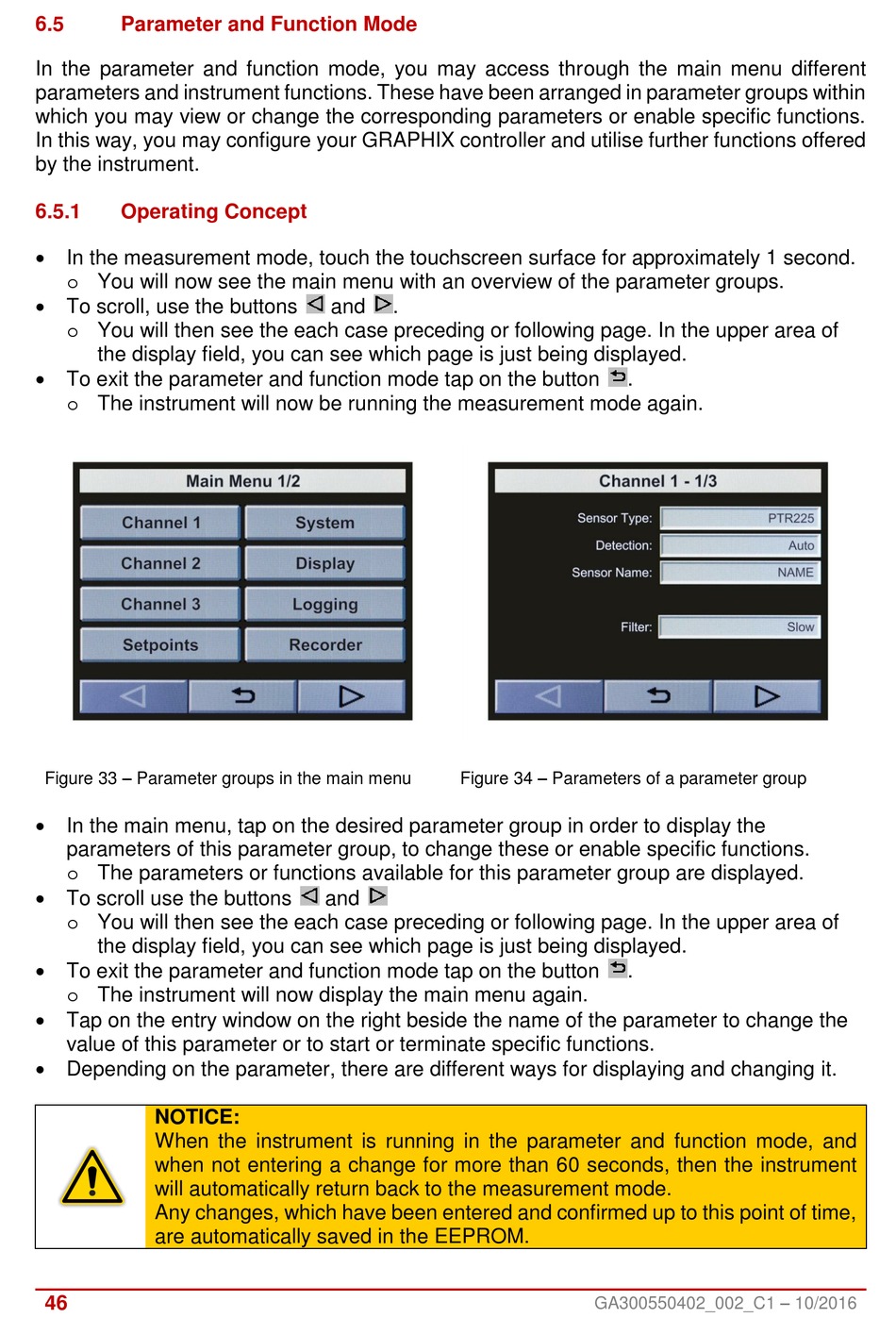

Figure 33 – Parameter groups in the main menu
 In the main menu, tap on the desired parameter group in order to display the
parameters of this parameter group, to change these or enable specific functions.
o The parameters or functions available for this parameter group are displayed.
 To scroll use the buttons
o You will then see the each case preceding or following page. In the upper area of
the display field, you can see which page is just being displayed.
 To exit the parameter and function mode tap on the button
o The instrument will now display the main menu again.
 Tap on the entry window on the right beside the name of the parameter to change the
value of this parameter or to start or terminate specific functions.
 Depending on the parameter, there are different ways for displaying and changing it.
NOTICE:
When the instrument is running in the parameter and function mode, and
when not entering a change for more than 60 seconds, then the instrument
will automatically return back to the measurement mode.
Any changes, which have been entered and confirmed up to this point of time,
are automatically saved in the EEPROM.
