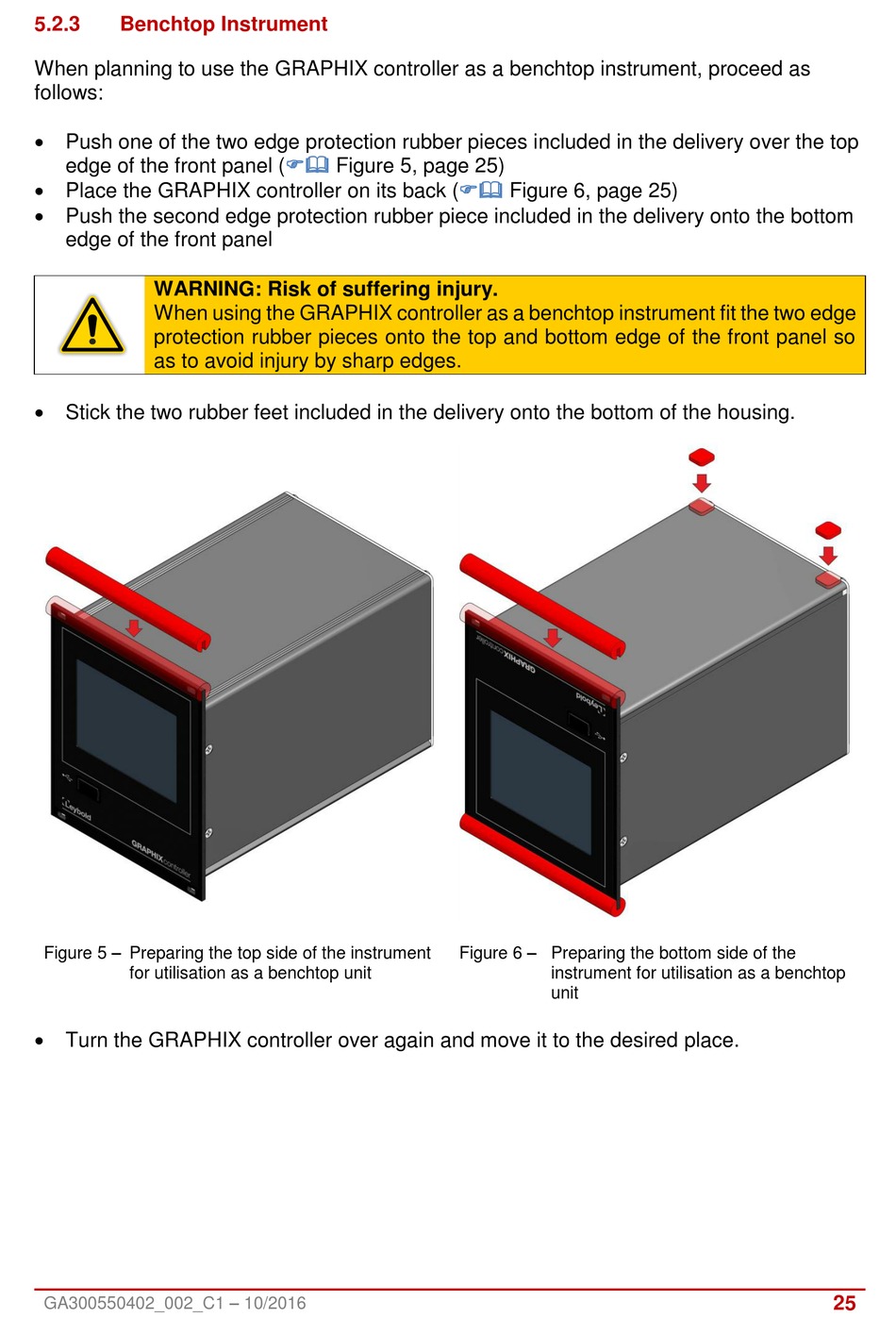

5.2.3

Benchtop Instrument

When planning to use the GRAPHIX controller as a benchtop instrument, proceed as
follows:
 Push one of the two edge protection rubber pieces included in the delivery over the top
edge of the front panel
 Place the GRAPHIX controller on its back
 Push the second edge protection rubber piece included in the delivery onto the bottom
edge of the front panel
WARNING: Risk of suffering injury.
When using the GRAPHIX controller as a benchtop instrument fit the two edge
protection rubber pieces onto the top and bottom edge of the front panel so
as to avoid injury by sharp edges.
 Stick the two rubber feet included in the delivery onto the bottom of the housing.
Figure 5 – Preparing the top side of the instrument
for utilisation as a benchtop unit
 Turn the GRAPHIX controller over again and move it to the desired place.
GA300550402_002_C1 – 10/2016
( Figure 5, page 25)
( Figure 6, page 25)
Figure 6 – Preparing the bottom side of the
instrument for utilisation as a benchtop
unit
