5.2.1

Rack Installation

The GRAPHIX controller has been designed for installation in a module rack in accordance
with DIN 41 494 (19-in., 3 HU)
4 collar screws and four plastic sleeves.
 Affix the module rack.
 Push the GRAPHIX controller into the module rack.
 Affix the instrument in the module rack with the collar screws and plastic sleeves included
in the delivery.
5.2.2

Front Panel Installation

Installation in a front panel requires a cut-out as given below
 Guide the GRAPHIX controller into the cut-out.
 Affix the instrument to the sub-rack with the neck collar screws and the plastic sleeves
included in the delivery.
24
( Figure 3, page 24). For this, the delivery scope includes

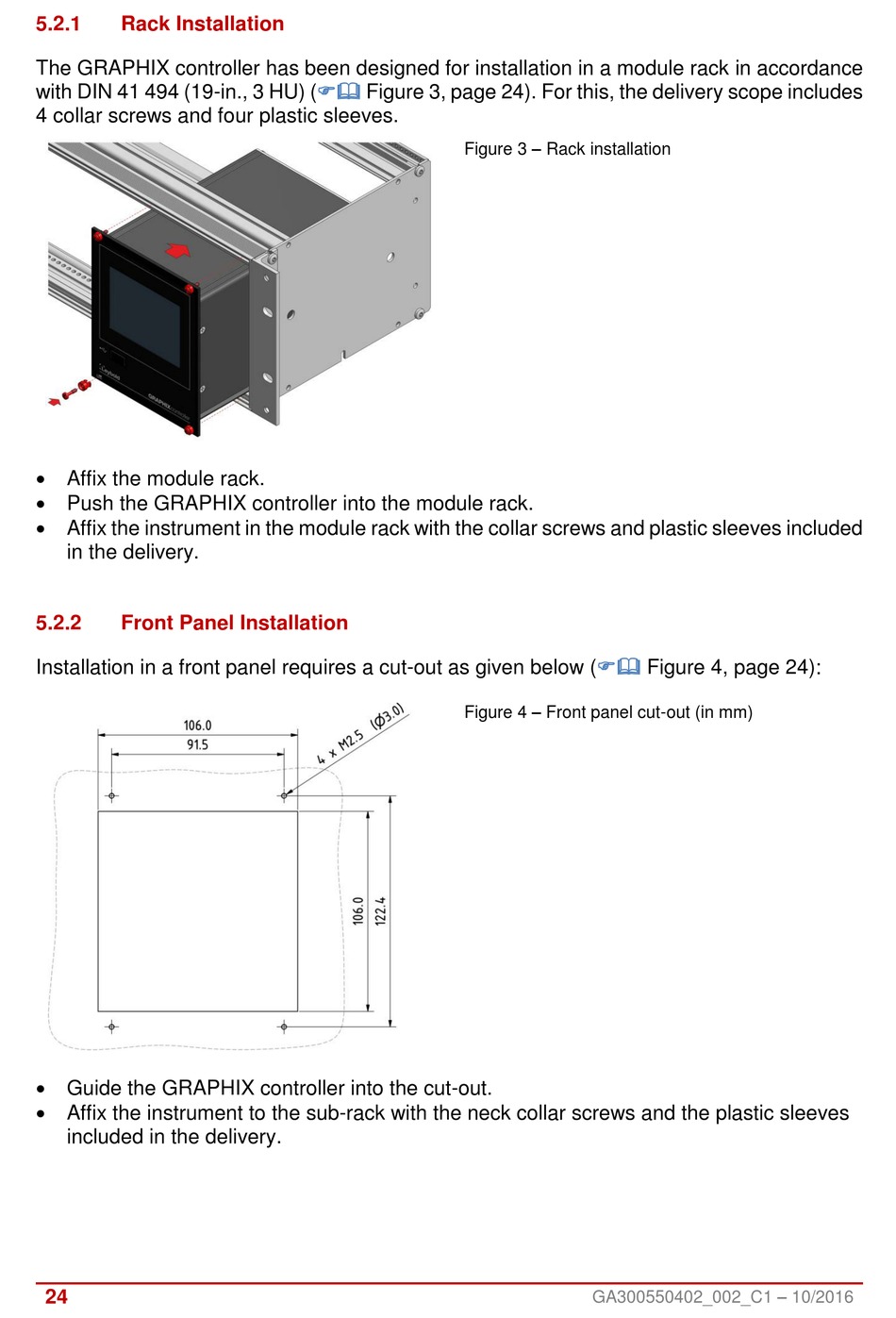

Figure 3 – Rack installation
Figure 4 – Front panel cut-out (in mm)
( Figure 4, page 24):
GA300550402_002_C1 – 10/2016
