Configuring The Switching Functions - LEYBOLD GRAPHIX ONE Instruction Manual

7.2.2

Configuring the Switching Functions

Proceed as follows to configure the switching thresholds:
 In the measurement mode, touch the touchscreen surface for approximately 1 second.
o You will now see the main menu with an overview of the parameter groups.
 Tap in the main menu on the parameter group Setpoints.
 Tap on the entry window on the right beside the parameter SP1 – SP6, in order to
assign the corresponding switching threshold to a channel.
o The selection list for the channel assignments opens.
 To select from the list, use the buttons
desired sensor.
o The in each case selected value is displayed with a green background..
 To save, tap the button
 The setup value is saved.
76

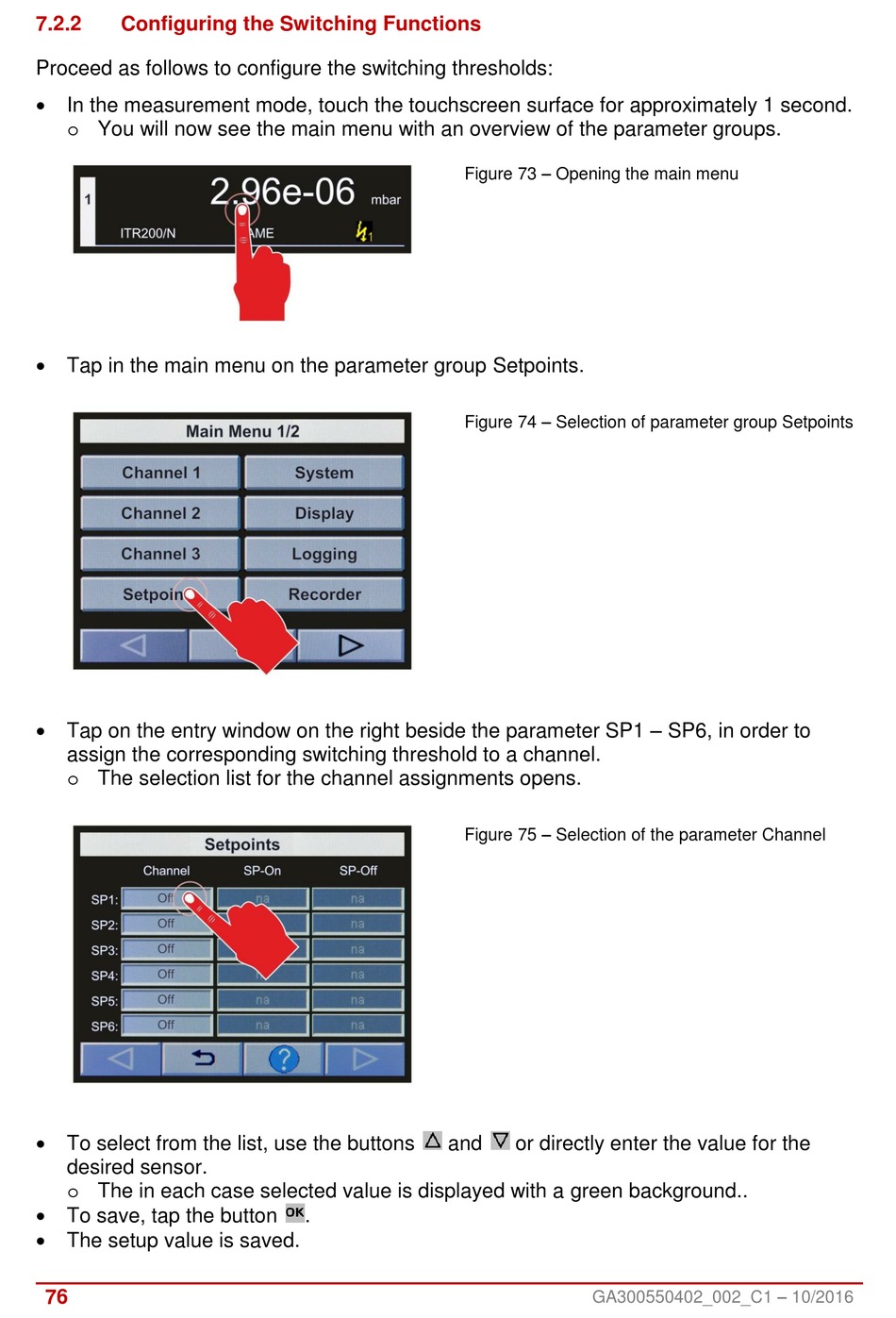

Figure 73 – Opening the main menu
Figure 74 – Selection of parameter group Setpoints
Figure 75 – Selection of the parameter Channel
and
.
or directly enter the value for the
