6.4.2.7

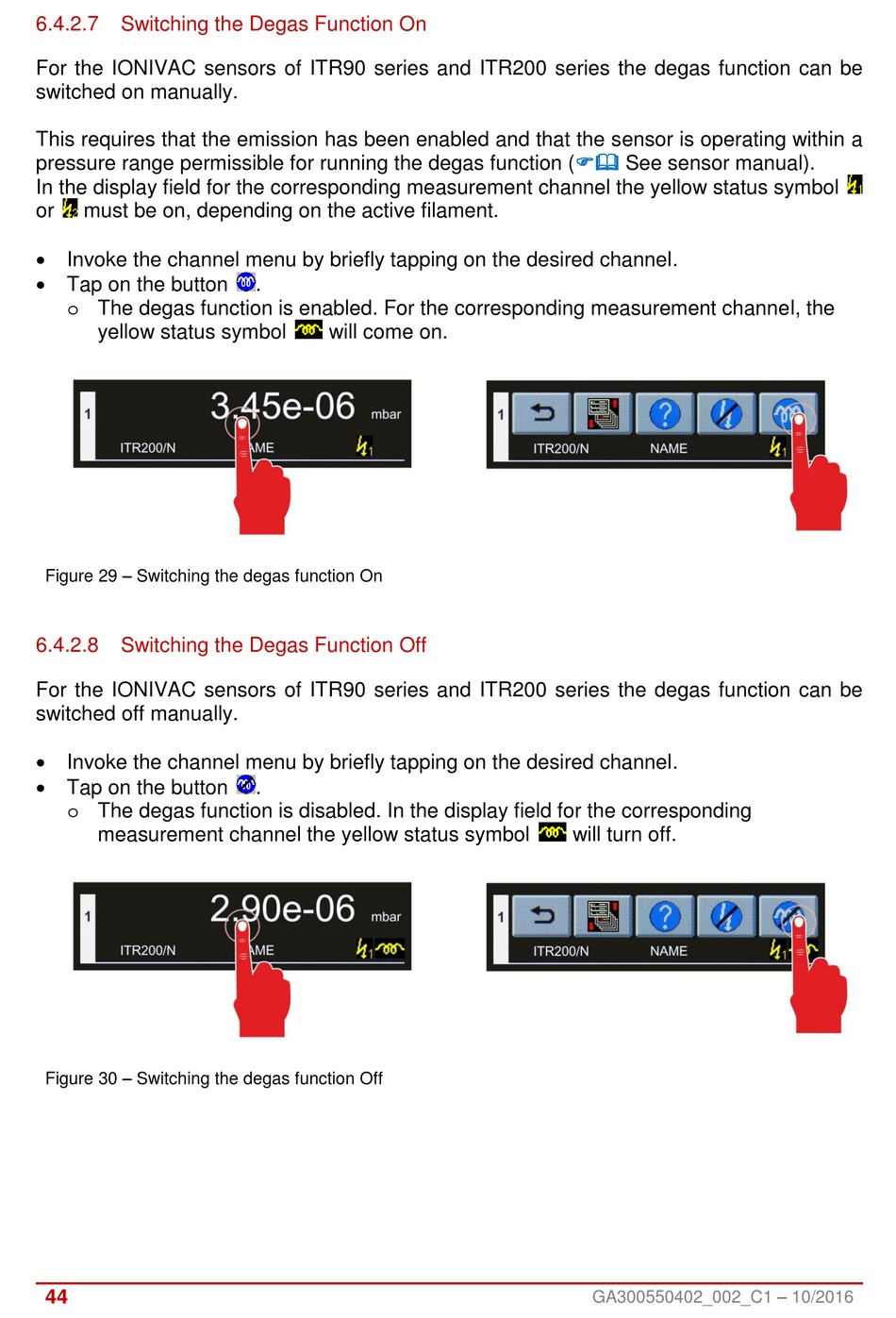

Switching the Degas Function On

For the IONIVAC sensors of ITR90 series and ITR200 series the degas function can be
switched on manually.
This requires that the emission has been enabled and that the sensor is operating within a
pressure range permissible for running the degas function
In the display field for the corresponding measurement channel the yellow status symbol
or must be on, depending on the active filament.
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The degas function is enabled. For the corresponding measurement channel, the
yellow status symbol
Figure 29 – Switching the degas function On
6.4.2.8

Switching the Degas Function Off

For the IONIVAC sensors of ITR90 series and ITR200 series the degas function can be
switched off manually.
 Invoke the channel menu by briefly tapping on the desired channel.
 Tap on the button
o The degas function is disabled. In the display field for the corresponding
measurement channel the yellow status symbol
Figure 30 – Switching the degas function Off
44
.
will come on.
.
( See sensor manual).
will turn off.
GA300550402_002_C1 – 10/2016
