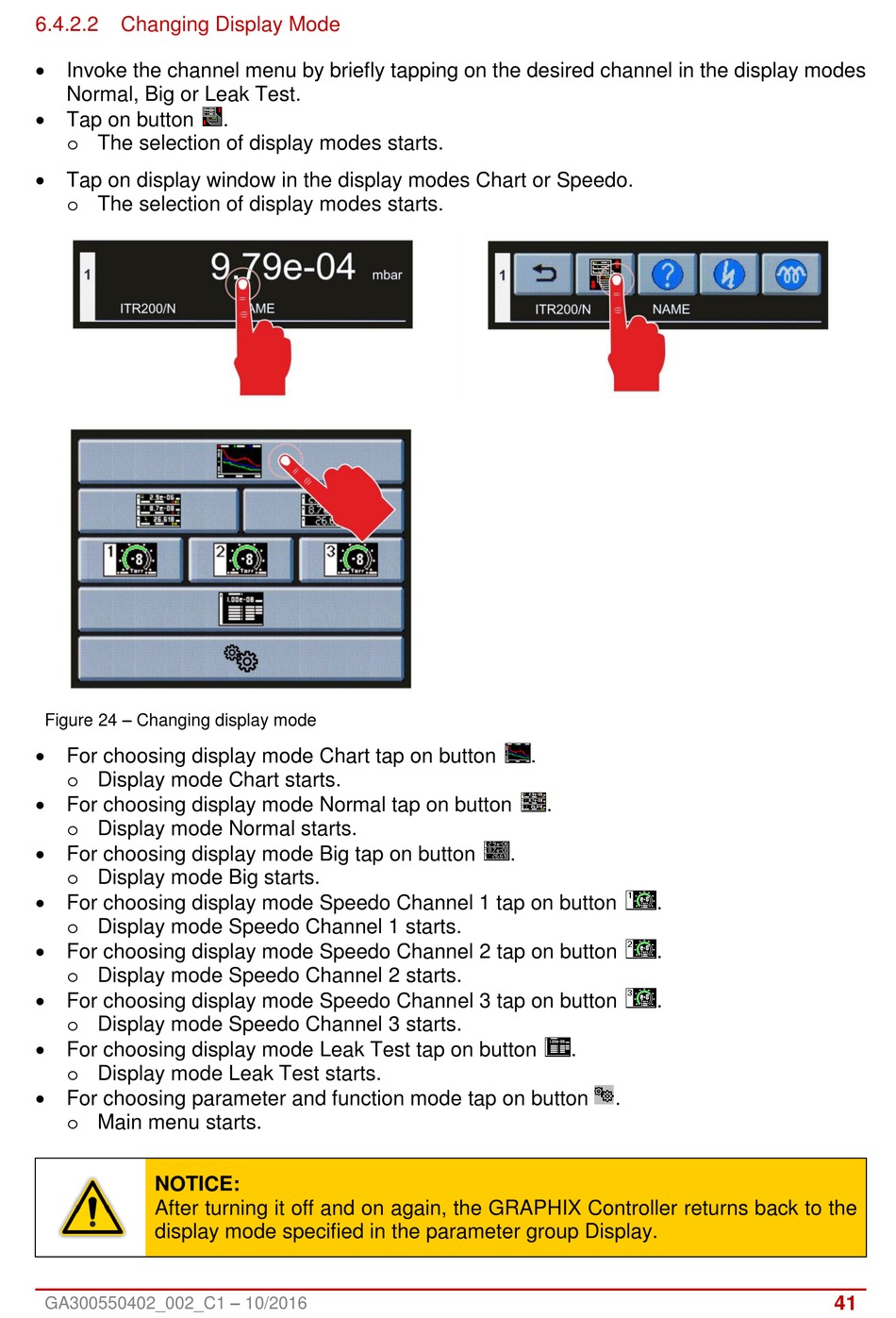

6.4.2.2

Changing Display Mode

 Invoke the channel menu by briefly tapping on the desired channel in the display modes
Normal, Big or Leak Test.
 Tap on button
o The selection of display modes starts.
 Tap on display window in the display modes Chart or Speedo.
o The selection of display modes starts.
Figure 24 – Changing display mode
 For choosing display mode Chart tap on button
o Display mode Chart starts.
 For choosing display mode Normal tap on button
o Display mode Normal starts.
 For choosing display mode Big tap on button
o Display mode Big starts.
 For choosing display mode Speedo Channel 1 tap on button
o Display mode Speedo Channel 1 starts.
 For choosing display mode Speedo Channel 2 tap on button
o Display mode Speedo Channel 2 starts.
 For choosing display mode Speedo Channel 3 tap on button
o Display mode Speedo Channel 3 starts.
 For choosing display mode Leak Test tap on button
o Display mode Leak Test starts.
 For choosing parameter and function mode tap on button
o Main menu starts.
NOTICE:
After turning it off and on again, the GRAPHIX Controller returns back to the
display mode specified in the parameter group Display.
GA300550402_002_C1 – 10/2016
.
.
.
.
.
.
.
.
.
41
