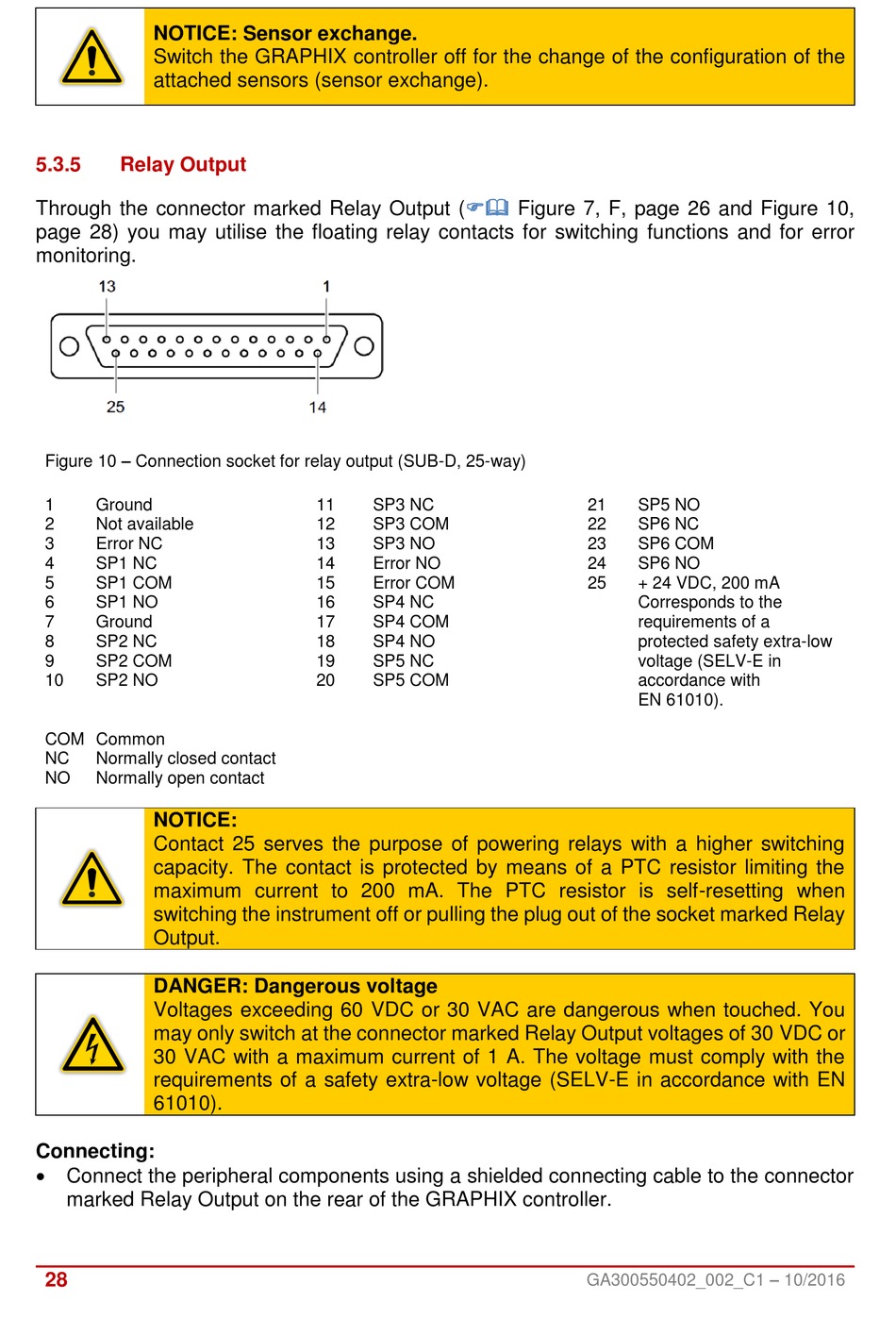

Relay Output - LEYBOLD GRAPHIX ONE Instruction Manual

NOTICE: Sensor exchange.
Switch the GRAPHIX controller off for the change of the configuration of the
attached sensors (sensor exchange).
5.3.5

Relay Output

Through the connector marked Relay Output
page 28) you may utilise the floating relay contacts for switching functions and for error
monitoring.
Figure 10 – Connection socket for relay output (SUB-D, 25-way)
1 Ground
2 Not available
3 Error NC
4 SP1 NC
5 SP1 COM
6 SP1 NO
7 Ground
8 SP2 NC
9 SP2 COM
10 SP2 NO
COM Common
NC Normally closed contact
NO Normally open contact
NOTICE:
Contact 25 serves the purpose of powering relays with a higher switching
capacity. The contact is protected by means of a PTC resistor limiting the
maximum current to 200 mA. The PTC resistor is self-resetting when
switching the instrument off or pulling the plug out of the socket marked Relay
Output.
DANGER: Dangerous voltage
Voltages exceeding 60 VDC or 30 VAC are dangerous when touched. You
may only switch at the connector marked Relay Output voltages of 30 VDC or
30 VAC with a maximum current of 1 A. The voltage must comply with the
requirements of a safety extra-low voltage (SELV-E in accordance with EN
61010).
Connecting:
 Connect the peripheral components using a shielded connecting cable to the connector
marked Relay Output on the rear of the GRAPHIX controller.
28
(
11 SP3 NC
12 SP3 COM
13 SP3 NO
14 Error NO
15 Error COM
16 SP4 NC
17 SP4 COM
18 SP4 NO
19 SP5 NC
20 SP5 COM
Figure 7, F, page 26 and Figure 10,
21 SP5 NO
22 SP6 NC
23 SP6 COM
24 SP6 NO
25 + 24 VDC, 200 mA
Corresponds to the
requirements of a
protected safety extra-low
voltage (SELV-E in
accordance with
EN 61010).
GA300550402_002_C1 – 10/2016
