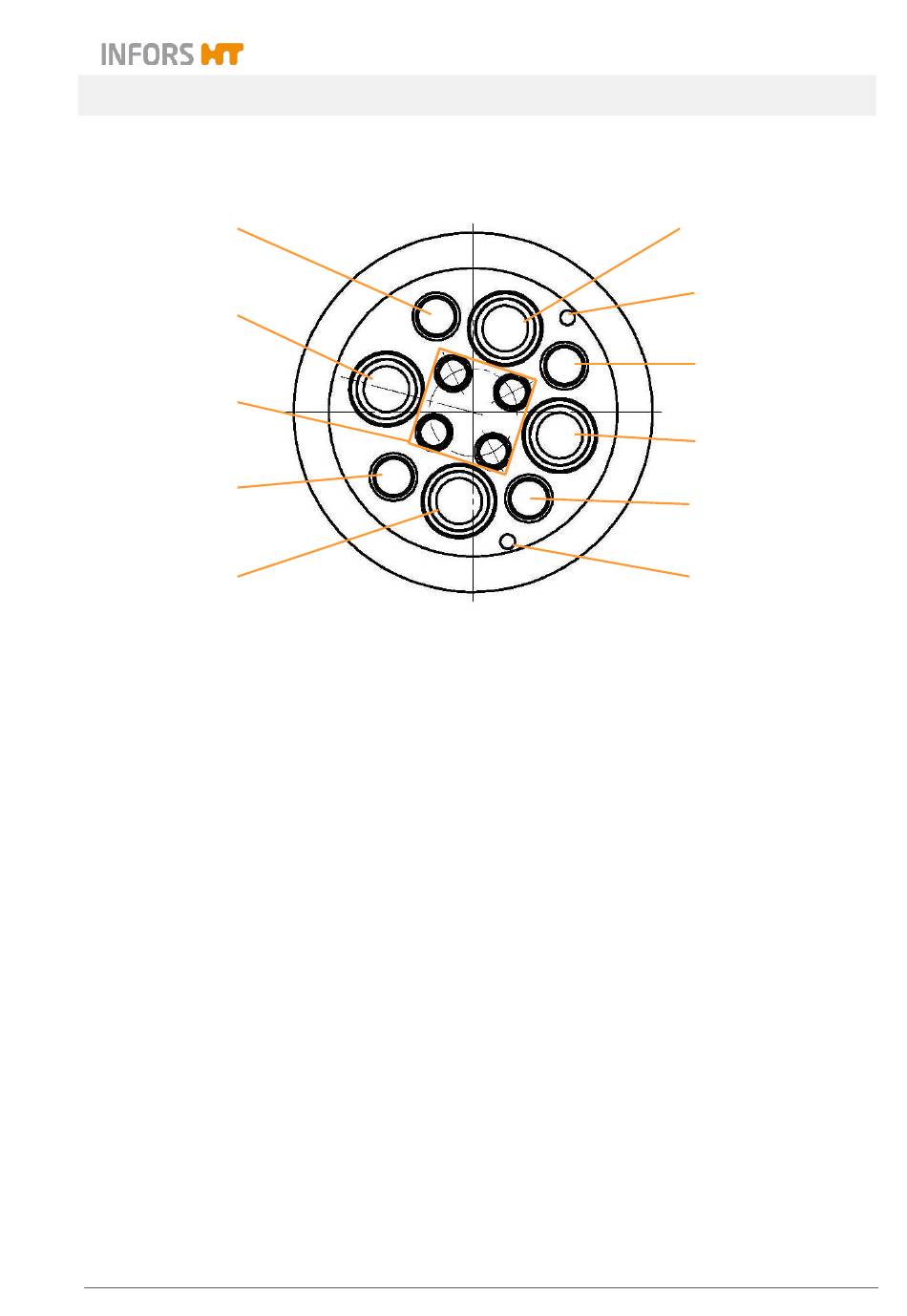

4.3.4.2 Vessel Top Plate with nominal Width 70

1
2
3
4
5
1 Ø 10 mm: Sparger
2 Ø 12 / Pg13.5 mm: Exit gas cooler
3 Ø 7 mm: Addition port adapter (4 pieces)
4 Ø 10 mm: Temperature sensor (Pt100)
5 Ø 12 / Pg 13.5 mm: Inoculation
6 12 mm / Pg13.5 : pO
28 March 2018
sensor
2
Multifors 2 - Parallel Bench-top Bioreactor
Setup and Function
7 Ground for antifoam sensor
8 Ø 10 mm: Antifoam sensor
9 12 / Pg 13.5 mm: pH sensor
10 Ø 10 mm: Dip tube for sampling
6
7
8
9
10
7
