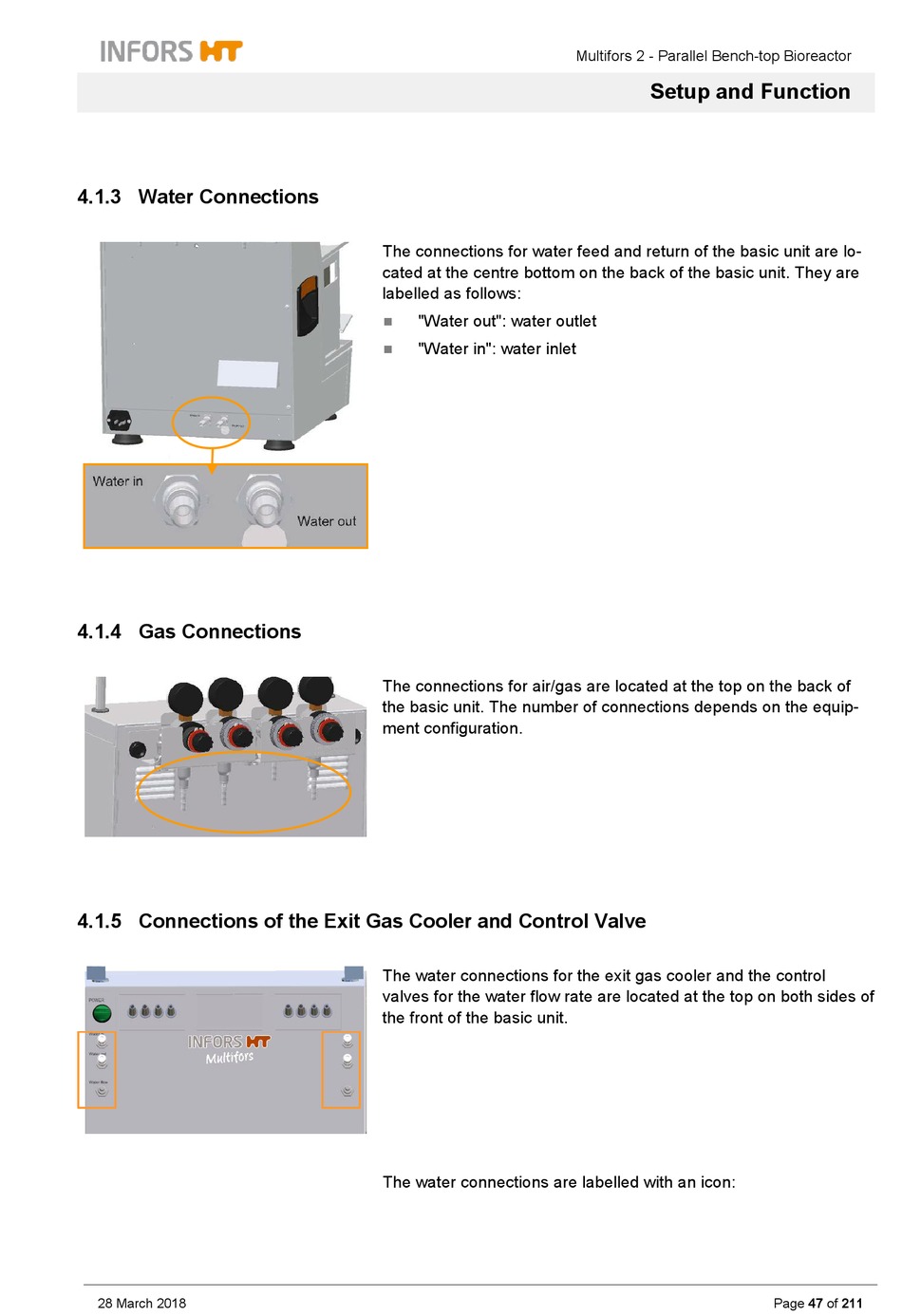

4.1.3 Water Connections

4.1.4 Gas Connections

4.1.5 Connections of the Exit Gas Cooler and Control Valve

28 March 2018
The connections for water feed and return of the basic unit are lo-
cated at the centre bottom on the back of the basic unit. They are
labelled as follows:
"Water out": water outlet

"Water in": water inlet

The connections for air/gas are located at the top on the back of
the basic unit. The number of connections depends on the equip-
ment configuration.
The water connections for the exit gas cooler and the control
valves for the water flow rate are located at the top on both sides of
the front of the basic unit.
The water connections are labelled with an icon:
