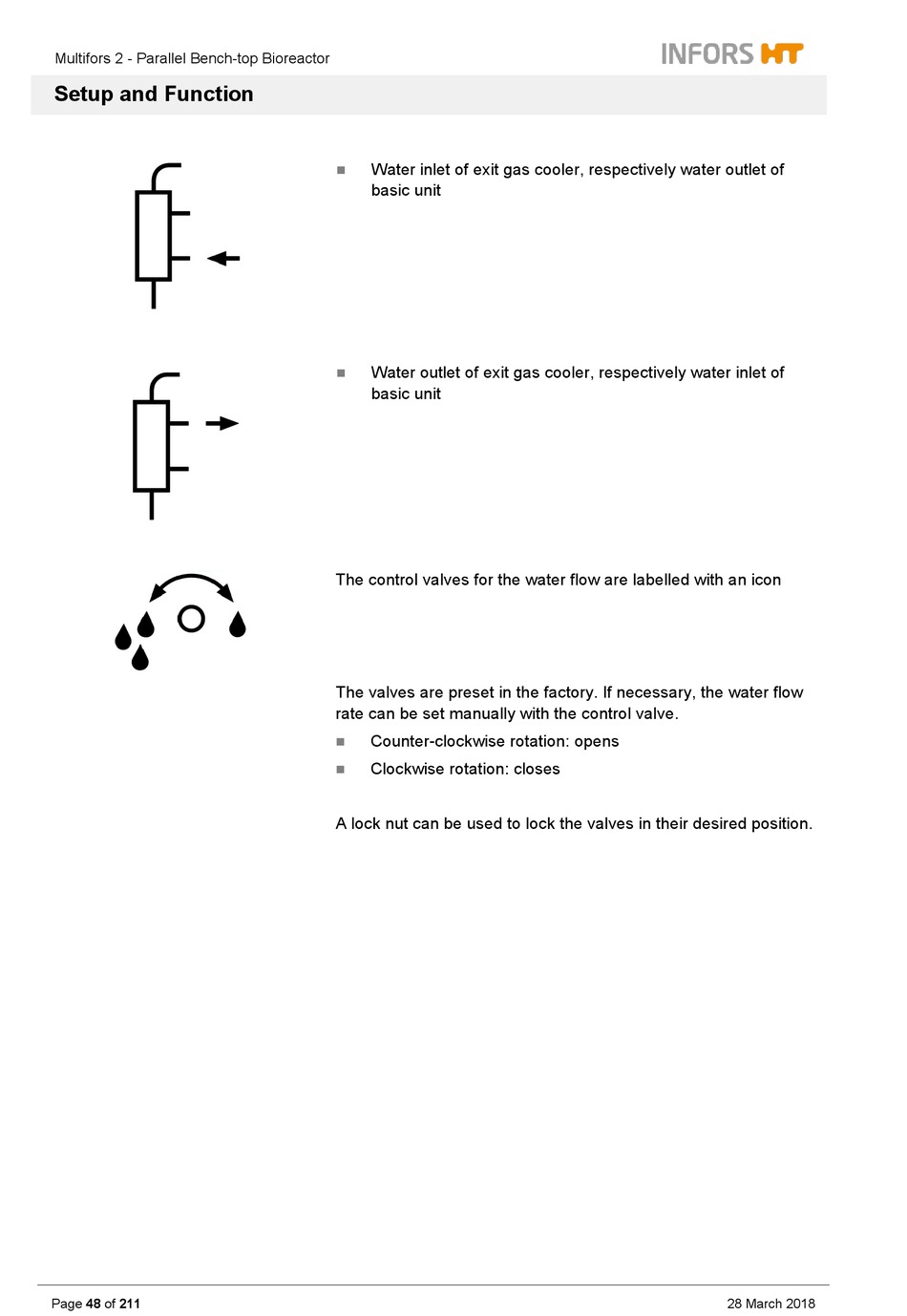

Multifors 2 - Parallel Bench-top Bioreactor
Setup and Function
Page 48 of 211
Water inlet of exit gas cooler, respectively water outlet of

basic unit
Water outlet of exit gas cooler, respectively water inlet of

basic unit
The control valves for the water flow are labelled with an icon
The valves are preset in the factory. If necessary, the water flow
rate can be set manually with the control valve.
Counter-clockwise rotation: opens

Clockwise rotation: closes

A lock nut can be used to lock the valves in their desired position.
28 March 2018
