Top Plate With Nominal Width 55/70 - Infors HT Multifors 2 Operating Manual

Multifors 2 - Parallel Bench-top Bioreactor
Setup and Function

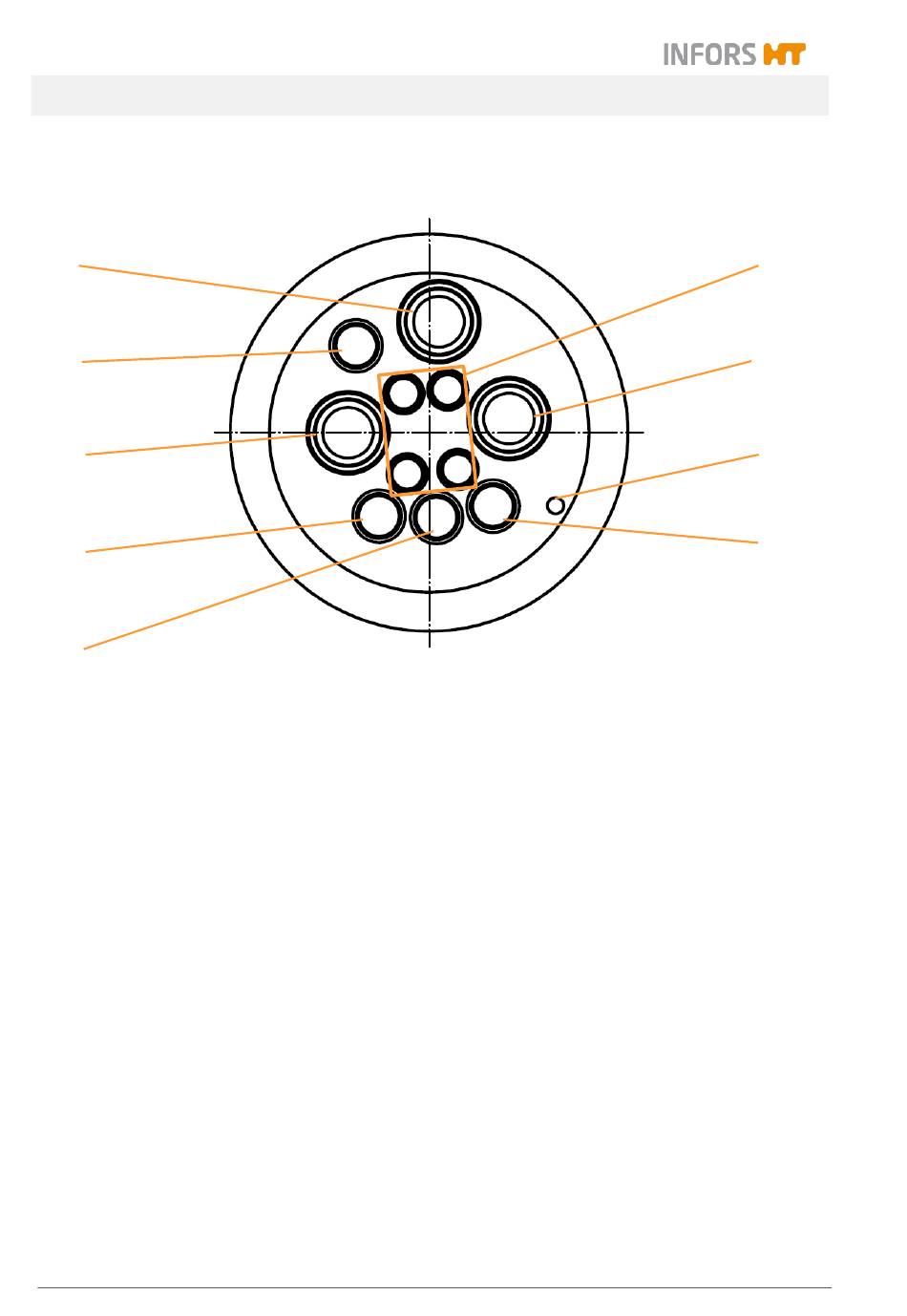

4.3.4.1 Top Plate with nominal Width 55/70

1
2
3
4
5
1 Ø 12 mm / Pg13.5: Exit gas cooler
2 Ø 12 mm / Pg 13.5: Sparger
3 Ø 12 mm / Pg 13.5: pH-Sensor
4 Ø 10 mm: Dip tube for sampling
5 Ø 10 mm: Temperature sensor (Pt100)
Page 64 of 211
6 Ø 7 mm: Addition port adapter (4 pieces
7 Ø 12 mm / Pg13.5: pO
8 Ground for antifoam sensor
9 Ø 10 mm: Antifoam sensor
6
7
8
9
sensor
2
