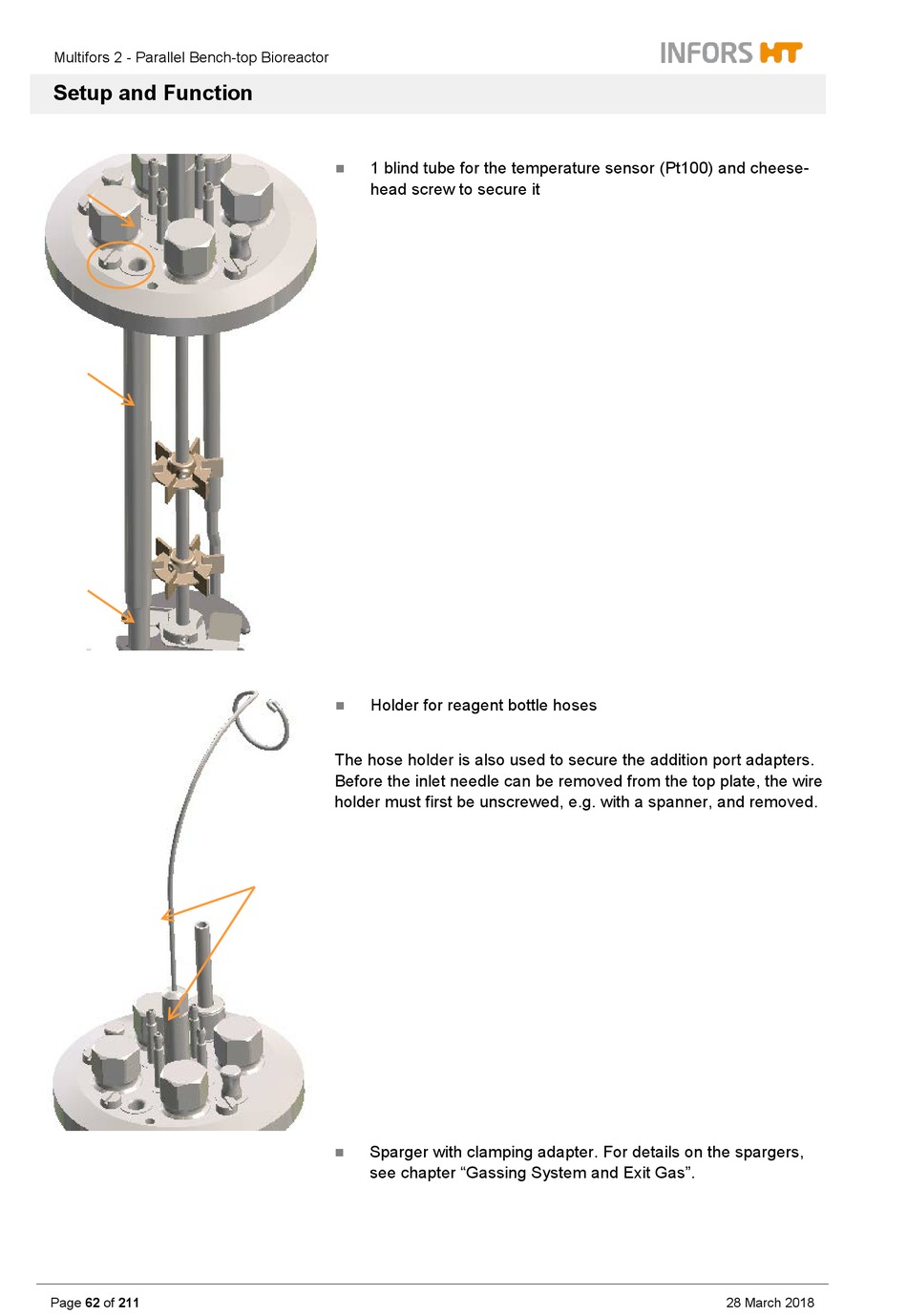

Infors HT Multifors 2 Operating Manual page 62

Multifors 2 - Parallel Bench-top Bioreactor
Setup and Function
Page 62 of 211
1 blind tube for the temperature sensor (Pt100) and cheese-

head screw to secure it
Holder for reagent bottle hoses

The hose holder is also used to secure the addition port adapters.
Before the inlet needle can be removed from the top plate, the wire
holder must first be unscrewed, e.g. with a spanner, and removed.
Sparger with clamping adapter. For details on the spargers,

see chapter "Gassing System and Exit Gas".
28 March 2018
