6.5.1 Mounting the Water Connection Set for 1 or 2 Satellite Units

5
1 Plate with push-in bulkhead connectors, la-
belled "Water in" / "Water out"
2 Hose nozzles for the water connectors
3 Pressure hose (black)
Page 102 of 211
The scope of supply includes a water connection set so that more
than 2 bioreactors (= 1 basic unit) can be operated at the same
time.

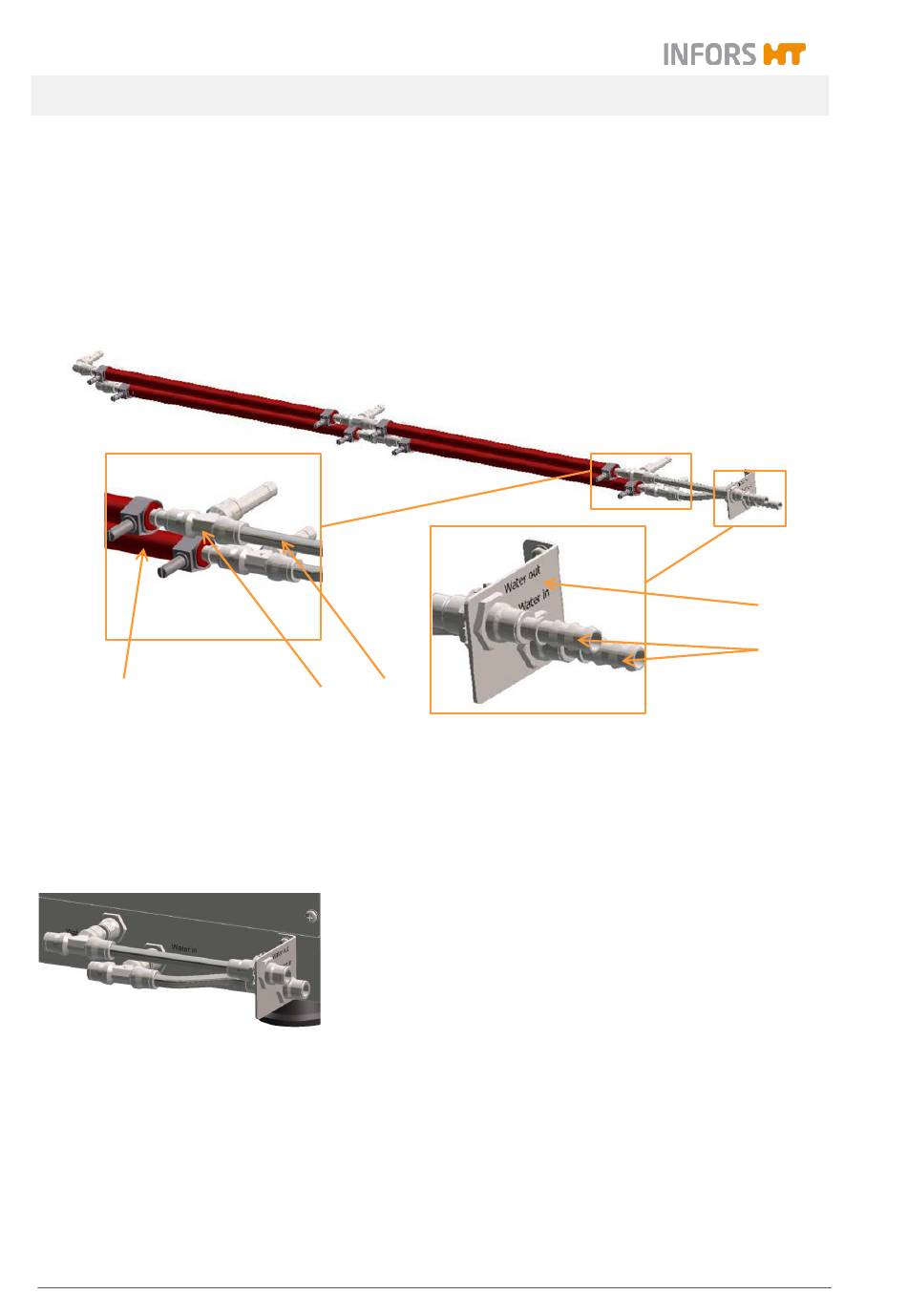

The illustration below shows a water connection set for a total of
three units = 1 master unit and 2 satellite units.
4
3
4
5
The set is delivered with the plate, black pressure hoses and push-
in T-connectors already attached to the master unit and with the
water connections connected.
The push-in hose nozzles as well as the pressure hoses with the
push-in T-connectors are delivered in separate packages
Push-in T-connector with push-in hose nozzle
Pressure hose (red) with hose clamp
1
2
