DataView™ LI55 Level Controller

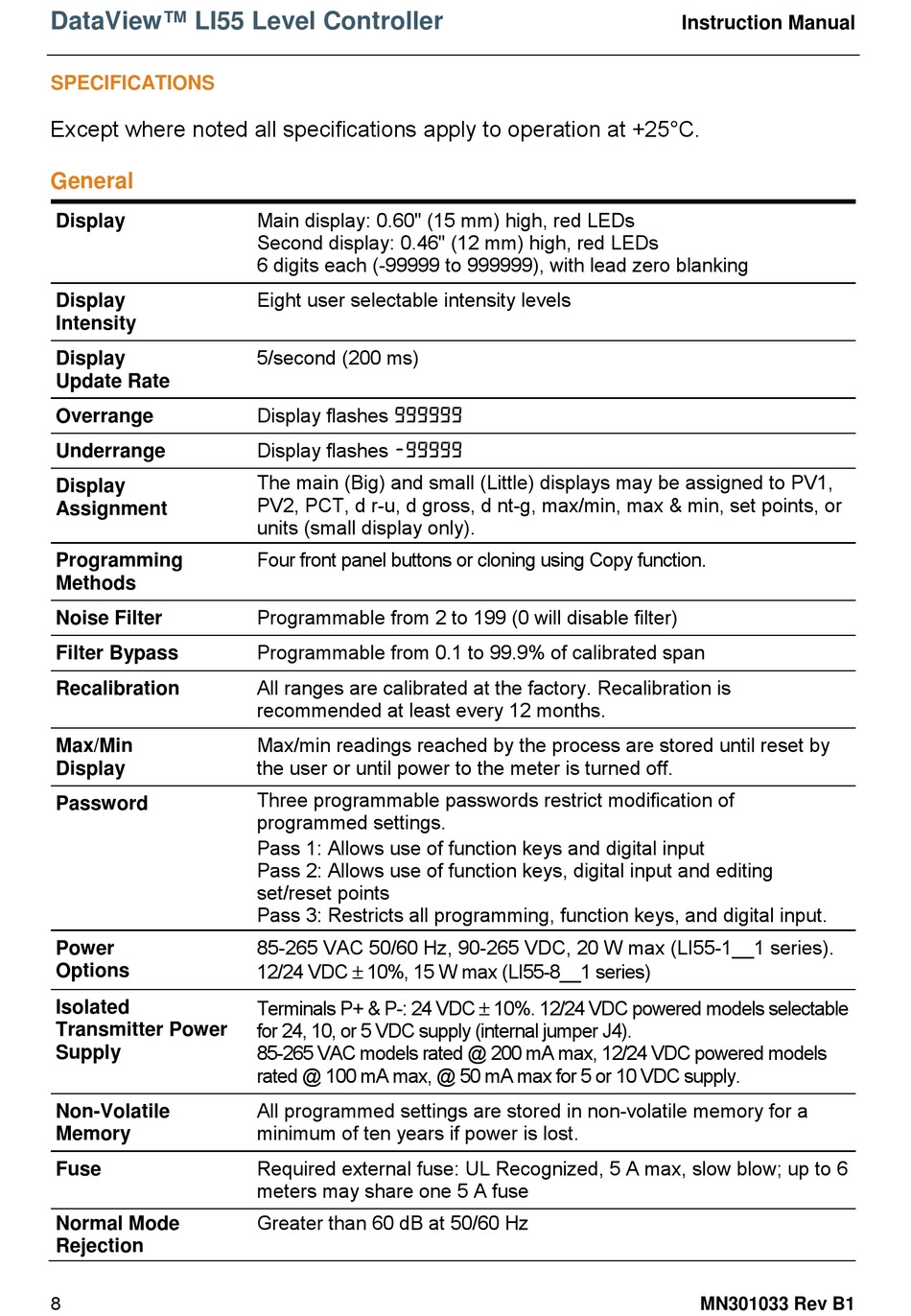

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

Display
Display
Intensity
Display
Update Rate
Overrange
Underrange
Display
Assignment
Programming
Methods
Noise Filter
Filter Bypass
Recalibration
Max/Min
Display
Password
Power
Options
Isolated
Transmitter Power
Supply
Non-Volatile
Memory
Fuse
Normal Mode
Rejection
8
Main display: 0.60" (15 mm) high, red LEDs
Second display: 0.46" (12 mm) high, red LEDs
6 digits each (-99999 to 999999), with lead zero blanking
Eight user selectable intensity levels
5/second (200 ms)
Display flashes 999999
Display flashes -99999
The main (Big) and small (Little) displays may be assigned to PV1,
PV2, PCT, d r-u, d gross, d nt-g, max/min, max & min, set points, or
units (small display only).
Four front panel buttons or cloning using Copy function.
Programmable from 2 to 199 (0 will disable filter)
Programmable from 0.1 to 99.9% of calibrated span
All ranges are calibrated at the factory. Recalibration is
recommended at least every 12 months.
Max/min readings reached by the process are stored until reset by
the user or until power to the meter is turned off.
Three programmable passwords restrict modification of
programmed settings.
Pass 1: Allows use of function keys and digital input
Pass 2: Allows use of function keys, digital input and editing
set/reset points
Pass 3: Restricts all programming, function keys, and digital input.
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max (LI55-1__1 series).
12/24 VDC  10%, 15 W max (LI55-8__1 series)
Terminals P+ & P-: 24 VDC  10%. 12/24 VDC powered models selectable
for 24, 10, or 5 VDC supply (internal jumper J4).
85-265 VAC models rated @ 200 mA max, 12/24 VDC powered models
rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.
All programmed settings are stored in non-volatile memory for a
minimum of ten years if power is lost.
Required external fuse: UL Recognized, 5 A max, slow blow; up to 6
meters may share one 5 A fuse
Greater than 60 dB at 50/60 Hz
