DataView™ LI55 Level Controller

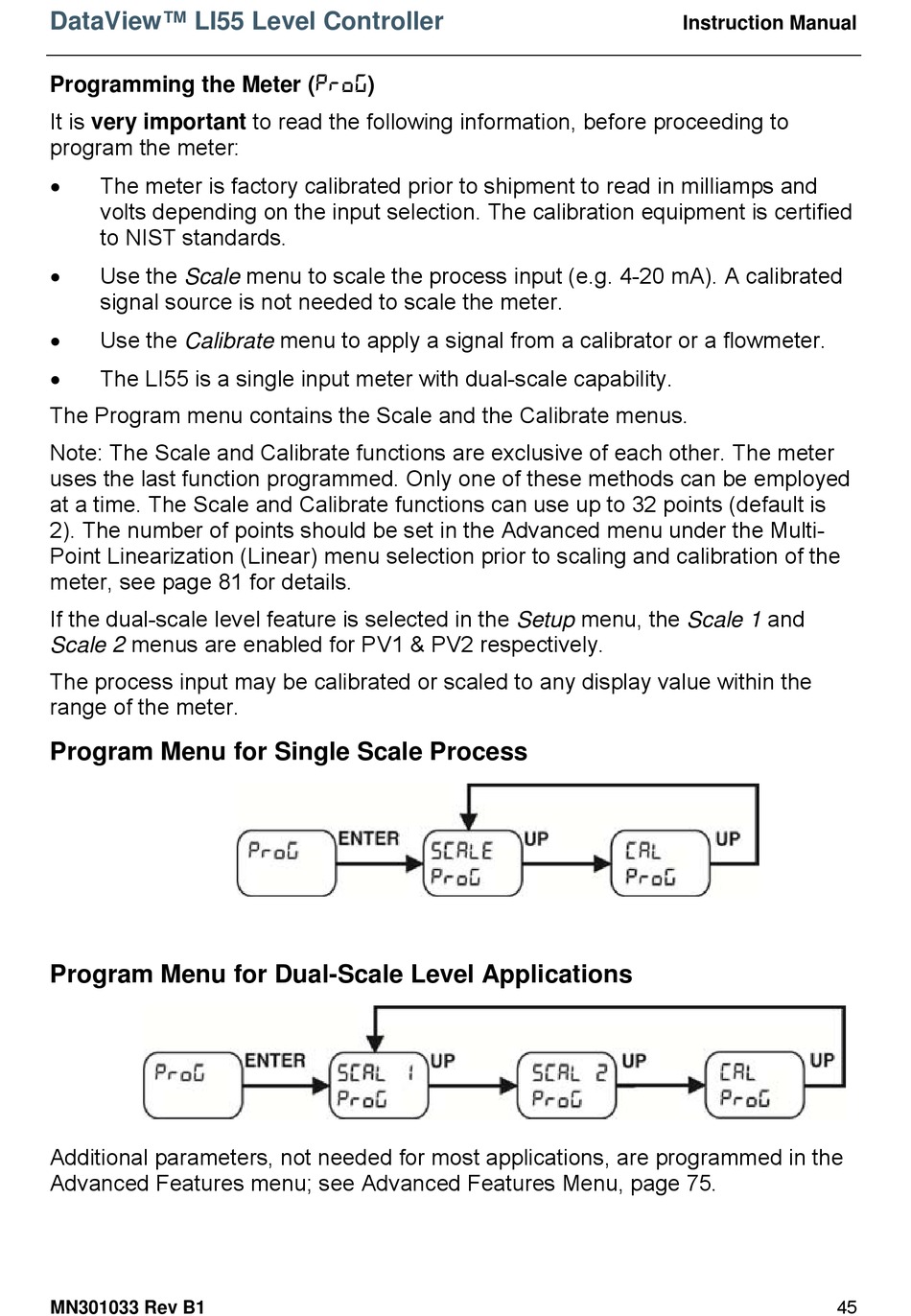

Programming the Meter (proG)

It is very important to read the following information, before proceeding to
program the meter:

The meter is factory calibrated prior to shipment to read in milliamps and
volts depending on the input selection. The calibration equipment is certified
to NIST standards.

Use the Scale menu to scale the process input (e.g. 4-20 mA). A calibrated
signal source is not needed to scale the meter.

Use the Calibrate menu to apply a signal from a calibrator or a flowmeter.

The LI55 is a single input meter with dual-scale capability.
The Program menu contains the Scale and the Calibrate menus.
Note: The Scale and Calibrate functions are exclusive of each other. The meter
uses the last function programmed. Only one of these methods can be employed
at a time. The Scale and Calibrate functions can use up to 32 points (default is
2). The number of points should be set in the Advanced menu under the Multi-
Point Linearization (Linear) menu selection prior to scaling and calibration of the
meter, see page 81 for details.
If the dual-scale level feature is selected in the Setup menu, the Scale 1 and
Scale 2 menus are enabled for PV1 & PV2 respectively.
The process input may be calibrated or scaled to any display value within the
range of the meter.

Program Menu for Single Scale Process

Program Menu for Dual-Scale Level Applications

Additional parameters, not needed for most applications, are programmed in the
Advanced Features menu; see Advanced Features Menu, page 75.
