DataView™ LI55 Level Controller

Connectors Labeling

The connectors' label, affixed to the meter, shows the location of all connectors
available with requested configuration.
Warning!

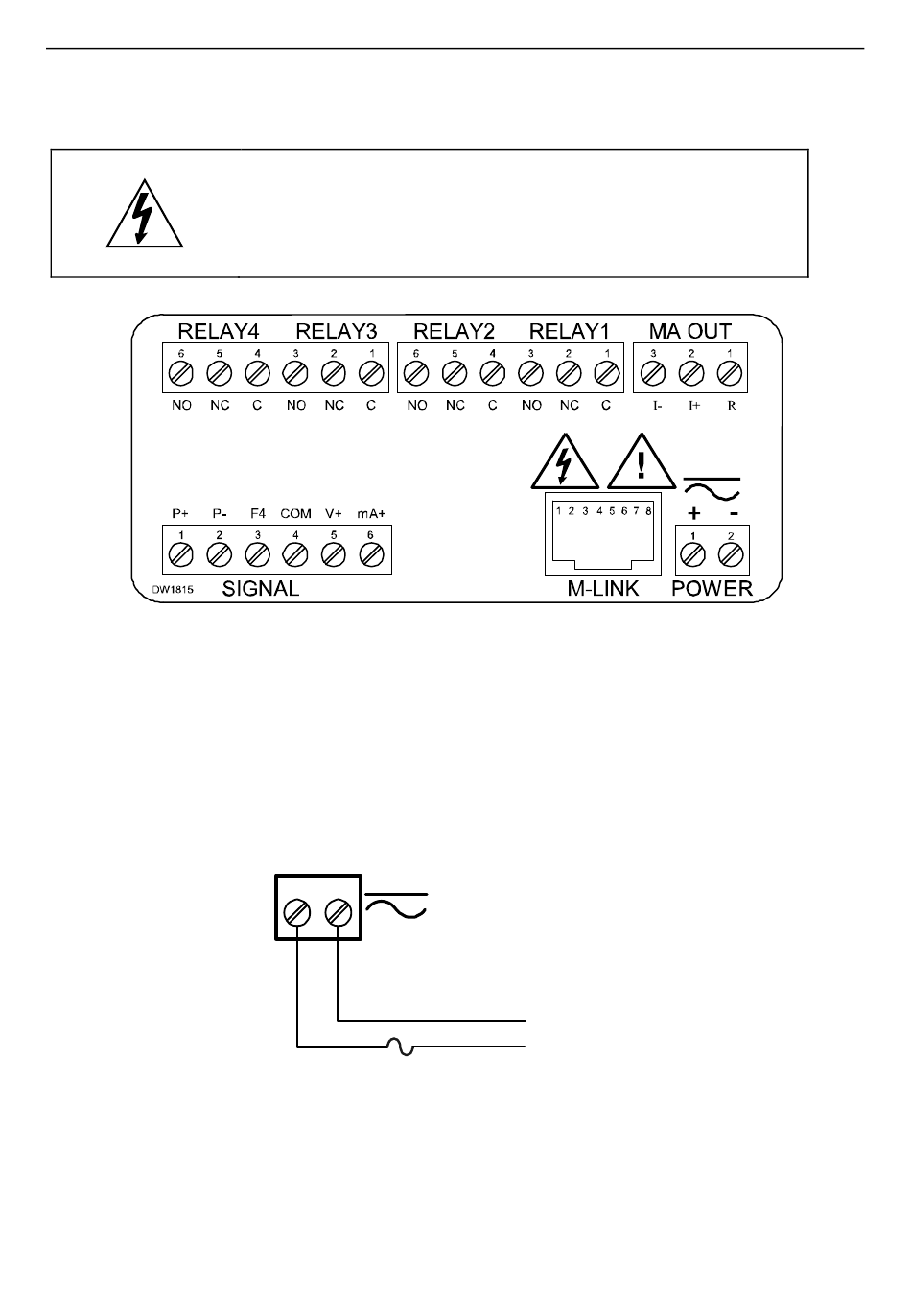

Figure 7. Connector Labeling for Fully Loaded LI55

Power Connections

The external power source to DataView is connected through a two-terminal
connector labeled
POWER on Figure 7 on page 20. The meter will operate regardless of DC polarity
connection. The + and - symbols are only a suggested wiring convention.
20
Do not connect any equipment other than
Flowline's expansion modules, cables, or meters
to the RJ45 M-LINK connector. Otherwise damage
will occur to the equipment and the meter.
POWER
+ -
Required External Fuse:
5 A max, 250 V Slow Blow
Figure 8. Power Connections 6000Power
Instruction Manual
AC or DC
POWER
MN301033 Rev B1
