DataView™ LI55 Level Controller
Round Horizontal Tank Linearization ( rHt )
This function automatically calculates the volume in a round horizontal tank with
flat ends.
Set the display for the desired decimal point and engineering units before
entering the round horizontal tank function. Select units, inches or cm for the tank
dimensions. Enter the diameter and the length in inches and the results are
calculated automatically in US gallons.
The meter can be scaled to display the volume in any engineering unit.
ENTER
Note: After Scale is displayed continue pressing the Enter button until the meter
completes the scaling of the input and display values.
Changing the Volume from Gallons to Liters

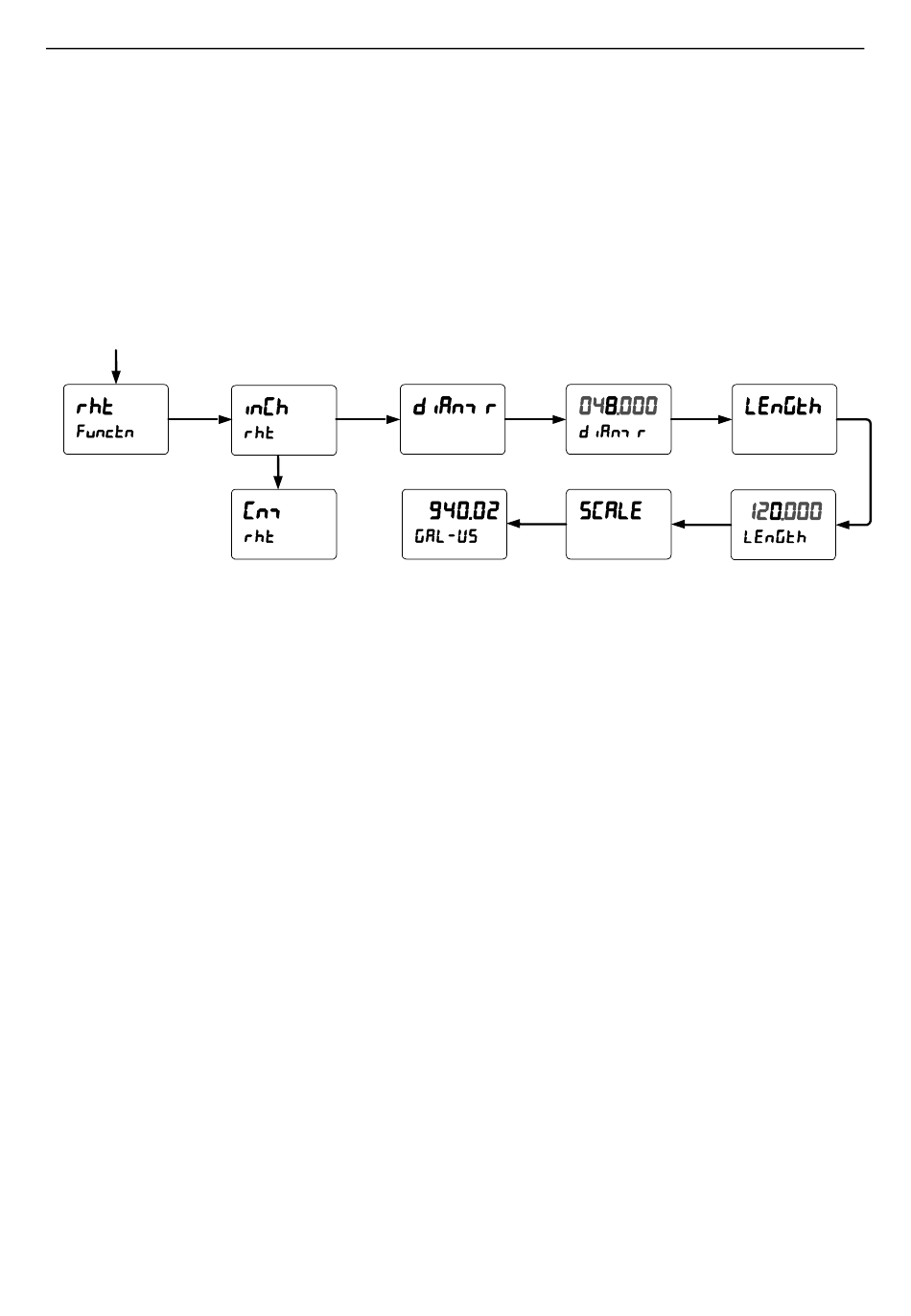

In the above graphic, entering the 48" for the diameter and 120" for the length of
the round horizontal tank, the meter automatically calculates that the volume of
the tank is 940.02 gallons.
1. Convert gallons to liters
1 US gallon = 3.7854 L
940.02 gal = 3558.4 L
2. Go to the Setup menu and change the decimal point to 1 decimal.
3. Go to the Program – Scale menu and press Enter until dis 2 is shown on
the main display.
4. Press Enter and change the display 2 value to 3558.4.
5. The meter is now displaying the volume in liters.
Note: The display can be scaled to display the volume in any engineering units.
82
rht
ENTER
UP
ENTER ENTER
rht
ENTER ENTER
Instruction Manual
rht
ENTER
MN301033 Rev B1
