Setting Custom Units or Tags (units)

Enter the input unit or custom tag that will be displayed if d unit is selected as the
little display parameter. See the flow chart on page 51 to access the display
menu to show the unit or tag on the lower display. The engineering units or

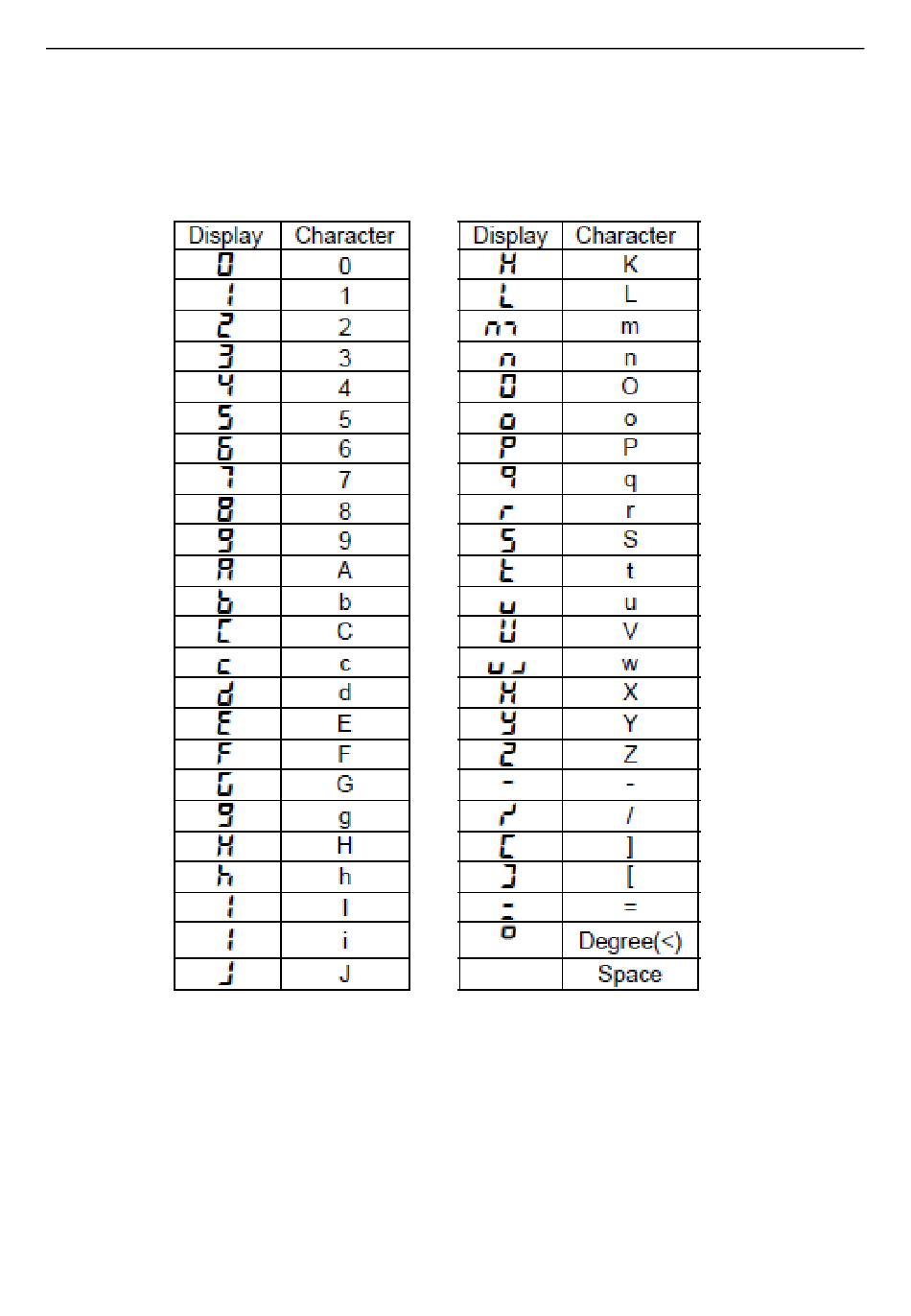

custom legends can be set using the following 7-segment character set:
Notes:
The letters "m" and "w" use two 7-segment LEDs each; when selected the characters
to the right are shifted one position.
Press and hold Up button to auto-scroll the characters in the display.
