DataView™ LI55 Level Controller

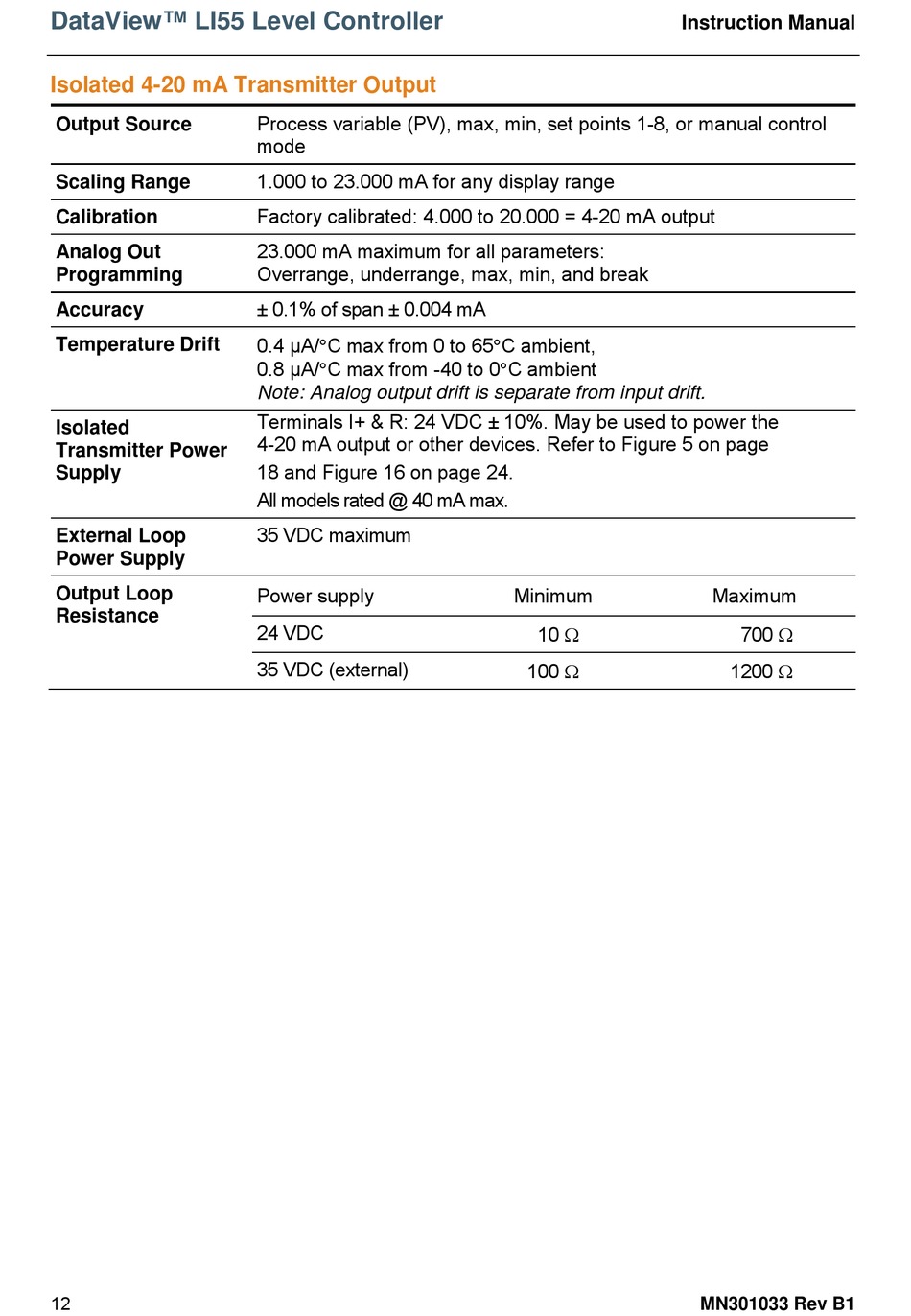

Isolated 4-20 mA Transmitter Output

Output Source
Scaling Range
Calibration
Analog Out
Programming
Accuracy
Temperature Drift
Isolated
Transmitter Power
Supply
External Loop
Power Supply
Output Loop
Resistance
12
Process variable (PV), max, min, set points 1-8, or manual control
mode
1.000 to 23.000 mA for any display range
Factory calibrated: 4.000 to 20.000 = 4-20 mA output
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and break
± 0.1% of span ± 0.004 mA
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from input drift.
Terminals I+ & R: 24 VDC ± 10%. May be used to power the
4-20 mA output or other devices. Refer to Figure 5 on page
18 and Figure 16 on page 24.
All models rated @ 40 mA max.
35 VDC maximum
Power supply
24 VDC
35 VDC (external)
Instruction Manual
Minimum
10 
100 
Maximum
700 
1200 
MN301033 Rev B1
