DataView™ LI55 Level Controller
Configuration for 12 or 24 VDC Power
Do not exceed voltage rating of the selected configuration.
Warning!
Meters equipped with the 12/24 VDC power option are shipped from the factory
ready to operate from 24 VDC.
To configure the meter for 12 VDC power:
1.
Remove all the connectors.
2.
Unscrew the back cover.
3.
Slide the back cover about 1 inch.
4.
Configure the J9 jumper, located behind the power connector, for 12 V
as shown below.
M-LINK
24 VDC
12 VDC
POWER

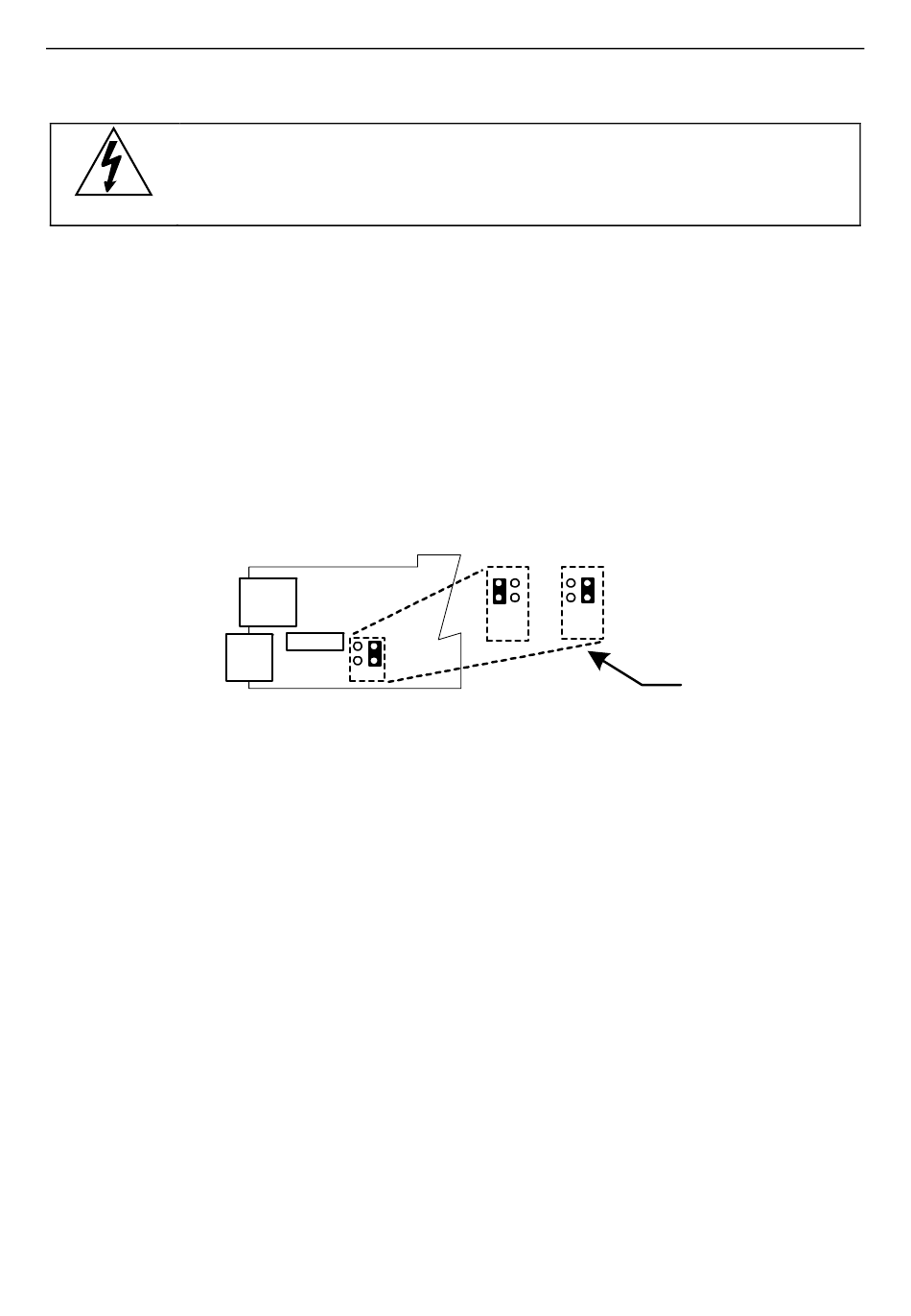

Figure 5. Jumper Configuration for 12/24 VDC Power
18
MAIN BOARD
+
J9
_
(APPLIES TO LI55-8__1 VERSION ONLY)
J9 CONFIGURATION
24 V
12 V
Instruction Manual
Factory
Default
MN301033 Rev B1
