DataView™ LI55 Level Controller
Interlock Relay Operation Example
Relay 1 is configured to energize (the front panel LED is off) when SW1 or SW2
switches (above) are closed. If either of the contacts set in series with the digital
input open, the corresponding front panel LED flashes indicating this condition.
The processes being controlled by the interlock relay will stop, and will re-start
only after the interlock relay is re-activated by the digital input (switches).
SCALING THE 4-20 MA ANALOG OUTPUT ( Aout )
The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any
display range selected.
No equipment is needed to scale the analog output; simply program the display
values to the corresponding mA output signal.

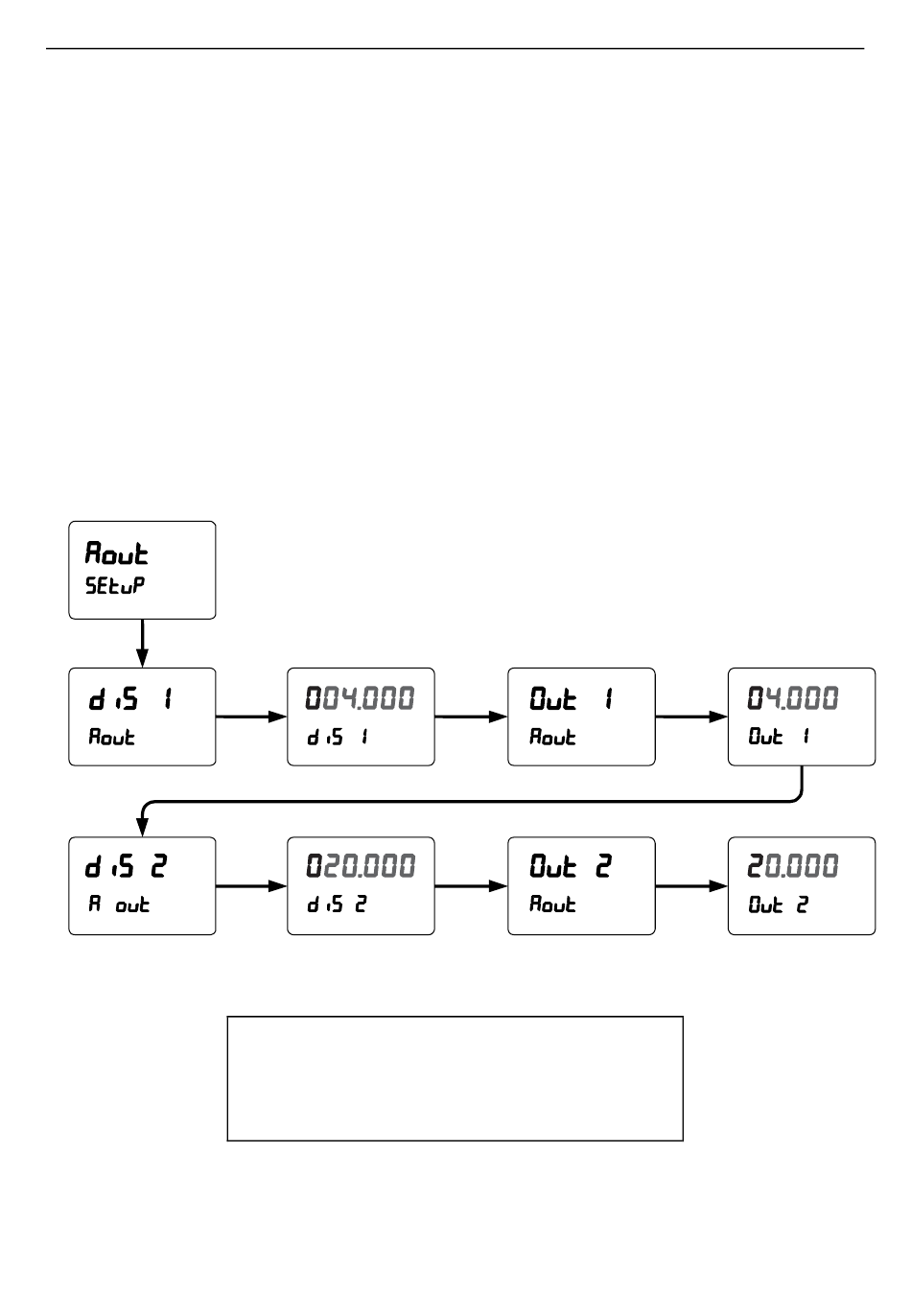

The Analog Output menu is used to program the 4-20 mA output based on
display values.
E N T E R
E N T ER
E N T ER
MN301033 Rev B1
ENTER
ENTER
For instructions on how to program
numeric values see
Setting Numeric Values, page 28.
Instruction Manual
ENTER
ENTER
ENTER
71
