DataView™ LI55 Level Controller
Multi-Point Calibration & Scaling
The meter is set up at the factory for 2-point linear calibration. The number of
points for multi-point calibration/scaling is set up in the Advanced Features menu.
Up to 32 linearization points may be selected for PV1 and up to 8 linearization
points may be selected for PV2. See page 81 for details.

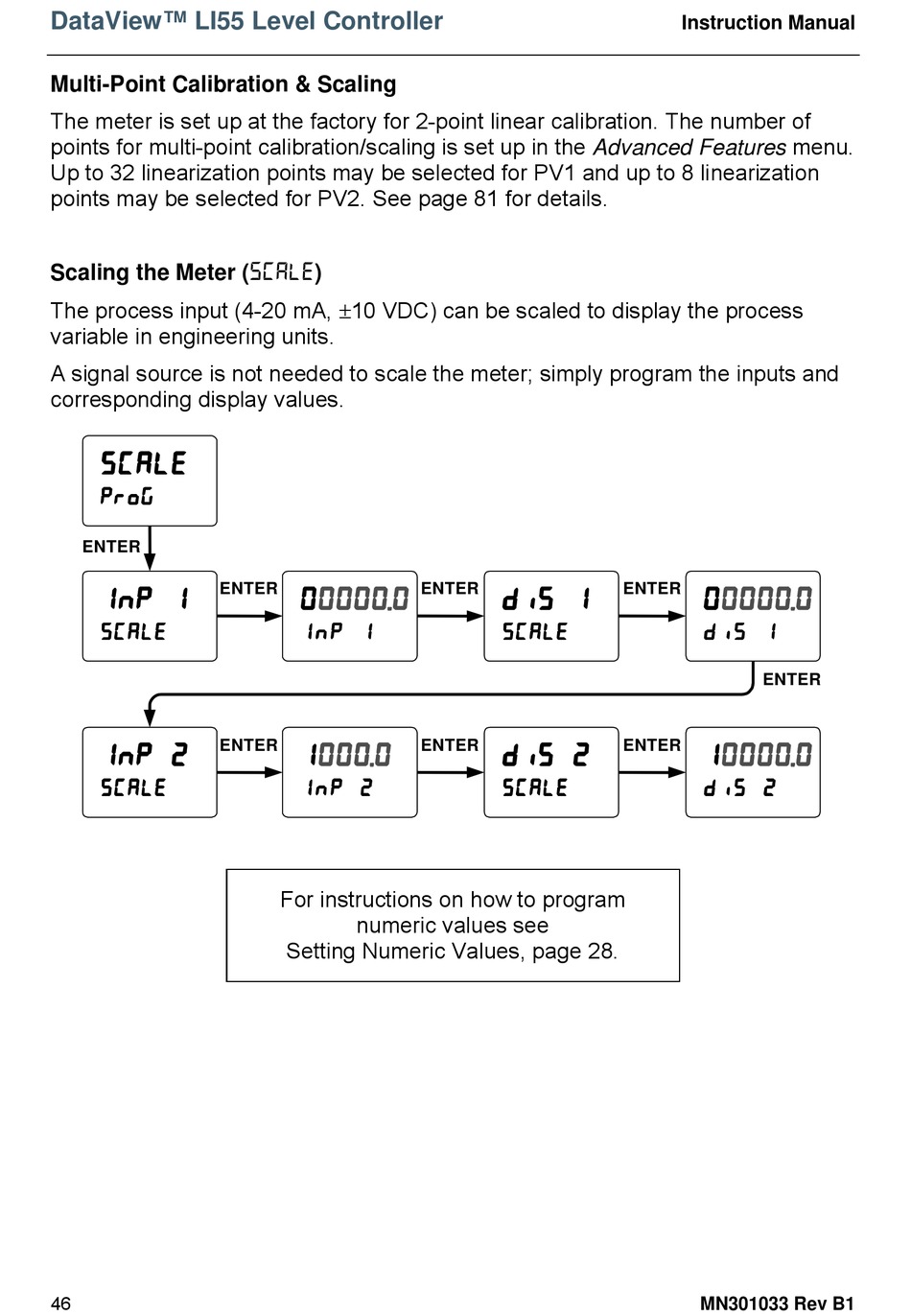

Scaling the Meter (SCALE)

The process input (4-20 mA, 10 VDC) can be scaled to display the process
variable in engineering units.
A signal source is not needed to scale the meter; simply program the inputs and
corresponding display values.
E N TE R
E NT E R
E NT E R
46
ENTER
ENTER
For instructions on how to program
numeric values see
Setting Numeric Values, page 28.
Instruction Manual
ENTER
ENTER
ENTER
MN301033 Rev B1
