Setting Up The Interlock Relay (Force On) Feature - FlowLine DataView LI55 Instruction Manual

DataView™ LI55 Level Controller
Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

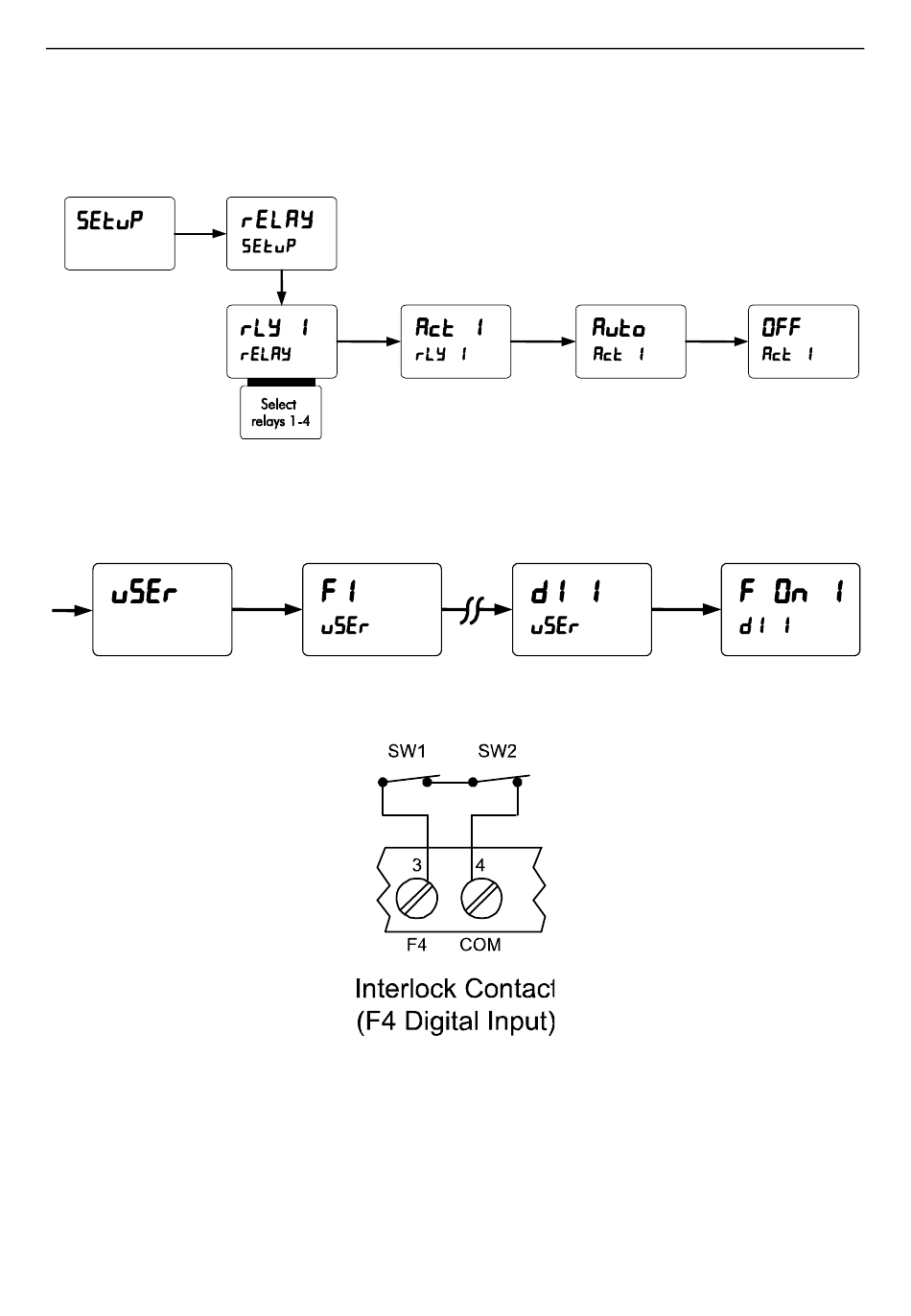

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock
feature:
1. Access the Setup – Relay – Action menu and set the action to off.
ENTER
ENTER
UP
ENTER ENTER ENTER
2. In the Advanced features – User menu program the digital input to Force On
any of the internal relays (1-4).
ENTER
ENTER UP UP
3. Connect a switch or dry contact between the F4 and the COM terminal.
70
MN301033 Rev B1
