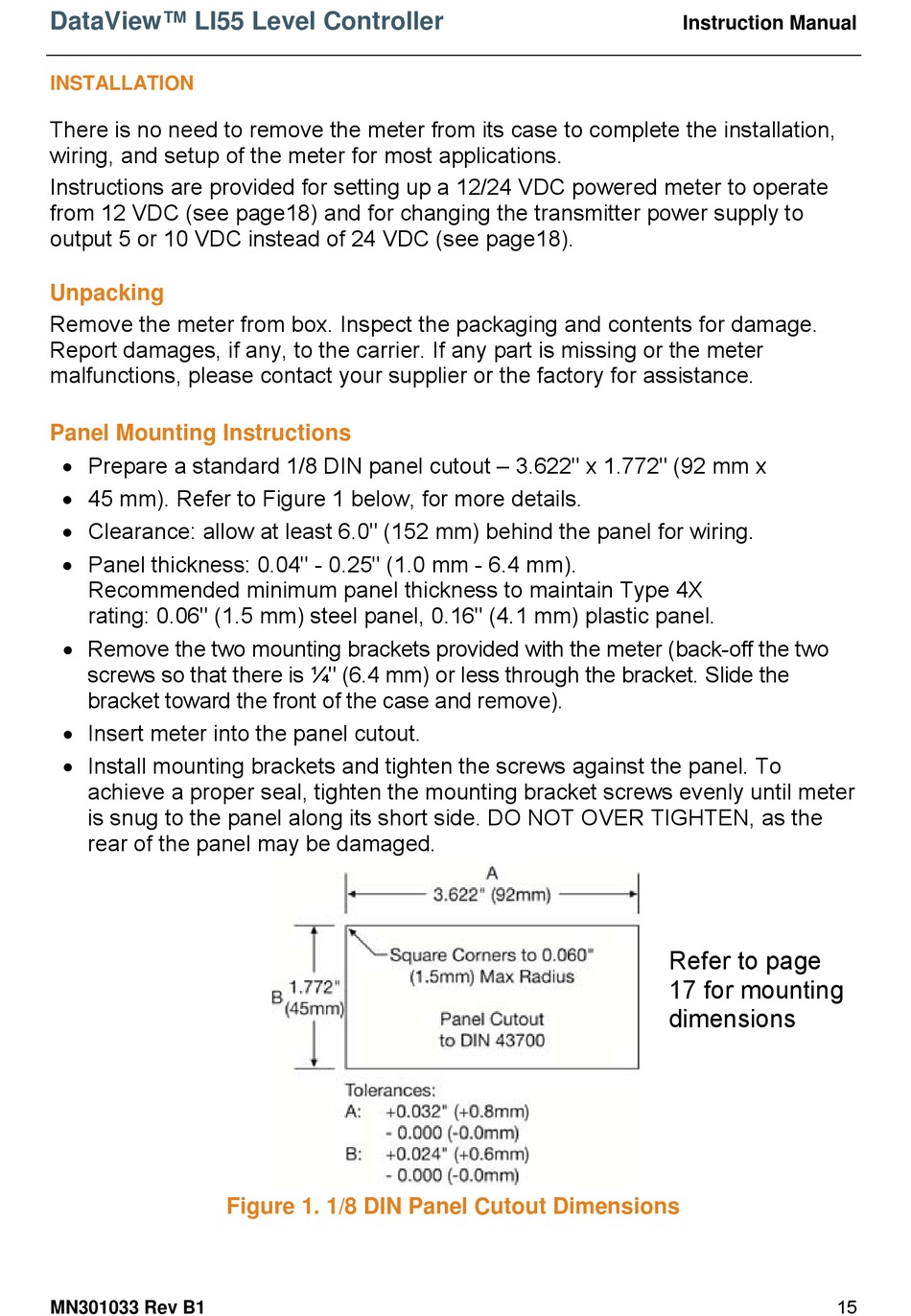

DataView™ LI55 Level Controller

INSTALLATION

There is no need to remove the meter from its case to complete the installation,
wiring, and setup of the meter for most applications.
Instructions are provided for setting up a 12/24 VDC powered meter to operate
from 12 VDC (see page18) and for changing the transmitter power supply to
output 5 or 10 VDC instead of 24 VDC (see page18).

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage.
Report damages, if any, to the carrier. If any part is missing or the meter
malfunctions, please contact your supplier or the factory for assistance.

Panel Mounting Instructions

 Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x
 45 mm). Refer to Figure 1 below, for more details.
 Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.
 Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
 Remove the two mounting brackets provided with the meter (back-off the two
screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
 Insert meter into the panel cutout.
 Install mounting brackets and tighten the screws against the panel. To
achieve a proper seal, tighten the mounting bracket screws evenly until meter
is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the
rear of the panel may be damaged.
MN301033 Rev B1

Figure 1. 1/8 DIN Panel Cutout Dimensions

Instruction Manual
Refer to page
17 for mounting
dimensions
15
