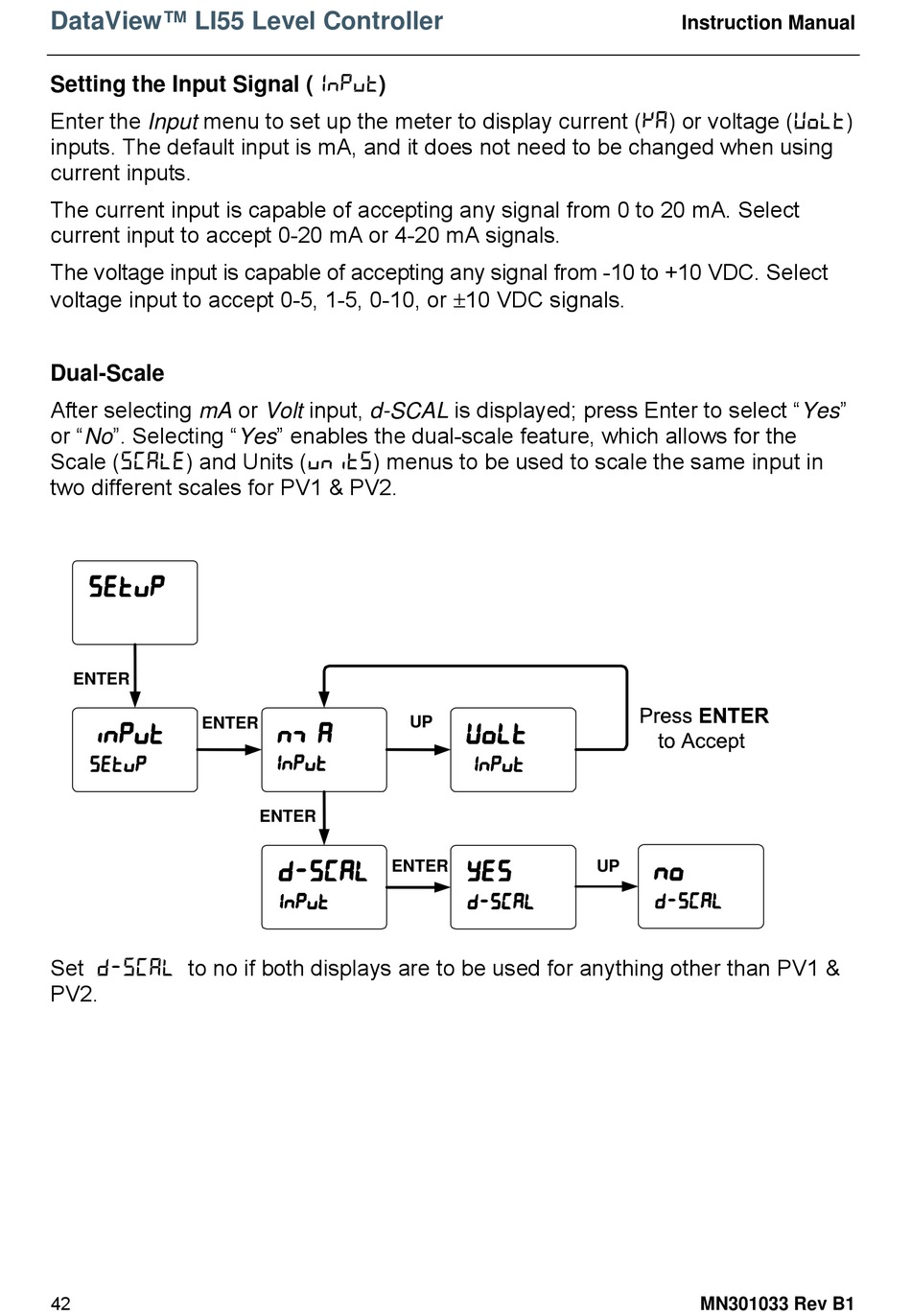

Setting the Input Signal (Input)

Enter the Input menu to set up the meter to display current (mA) or voltage (volt)
inputs. The default input is mA, and it does not need to be changed when using
current inputs.
The current input is capable of accepting any signal from 0 to 20 mA. Select
current input to accept 0-20 mA or 4-20 mA signals.
The voltage input is capable of accepting any signal from -10 to +10 VDC. Select
voltage input to accept 0-5, 1-5, 0-10, or 10 VDC signals.

Dual-Scale

After selecting mA or Volt input, d-SCAL is displayed; press Enter to select "Yes"
or "No". Selecting "Yes" enables the dual-scale feature, which allows for the
Scale (SCALE) and Units (units) menus to be used to scale the same input in
two different scales for PV1 & PV2.
ENTER
UP
ENTER
ENTER
ENTER UP
Set d-SCAL to no if both displays are to be used for anything other than PV1 &
PV2.
