DataView™ LI55 Level Controller

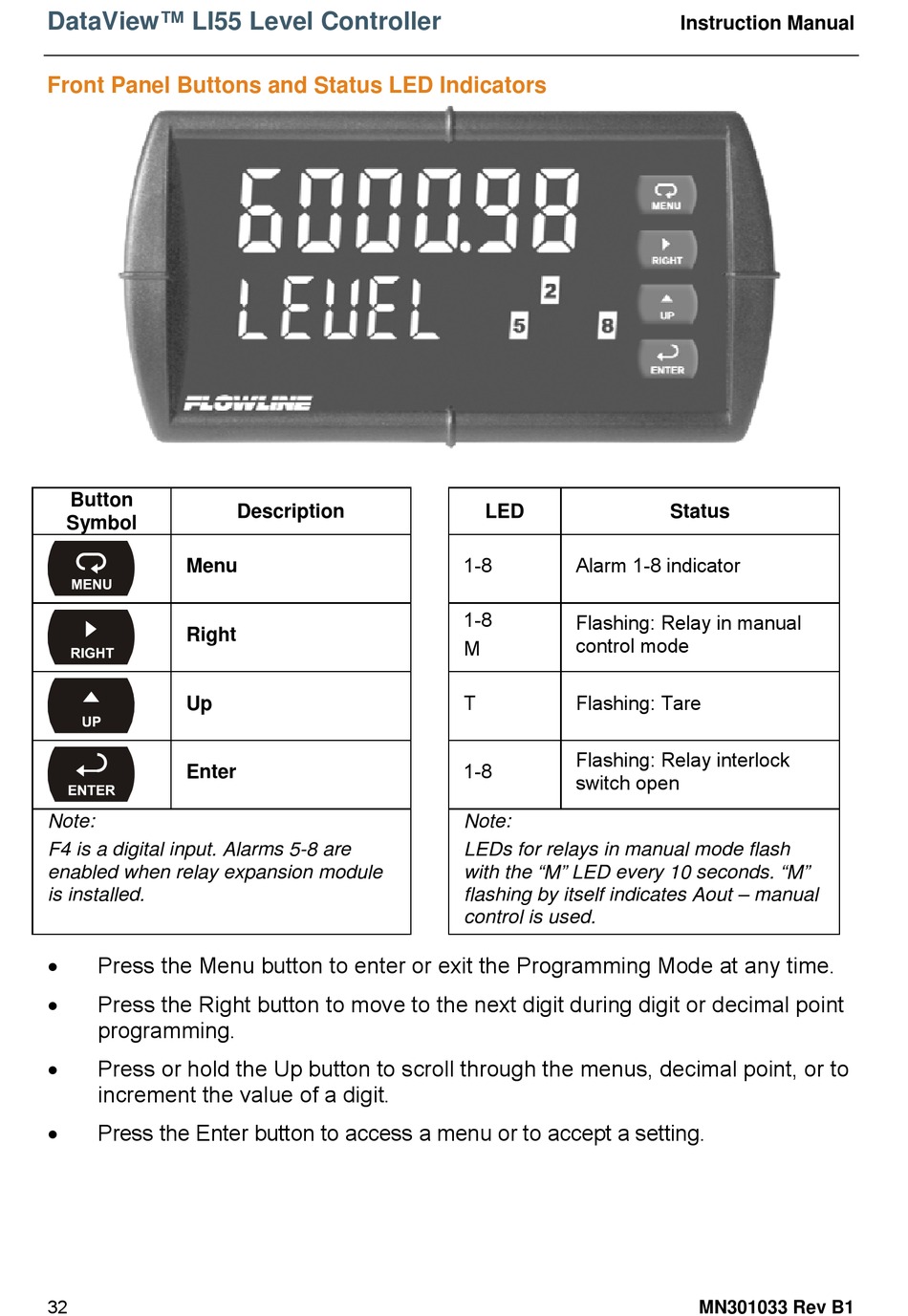

Front Panel Buttons and Status LED Indicators

Button
Symbol
Menu
Right
Up
Enter
Note:
F4 is a digital input. Alarms 5-8 are
enabled when relay expansion module
is installed.

Press the Menu button to enter or exit the Programming Mode at any time.

Press the Right button to move to the next digit during digit or decimal point
programming.

Press or hold the Up button to scroll through the menus, decimal point, or to
increment the value of a digit.

Press the Enter button to access a menu or to accept a setting.
32
Description LED
1-8 Alarm 1-8 indicator
1-8
Flashing: Relay in manual
control mode
M
T Flashing: Tare
Flashing: Relay interlock
1-8
switch open
Note:
LEDs for relays in manual mode flash
with the "M" LED every 10 seconds. "M"
flashing by itself indicates Aout – manual
control is used.
