DataView™ LI55 Level Controller

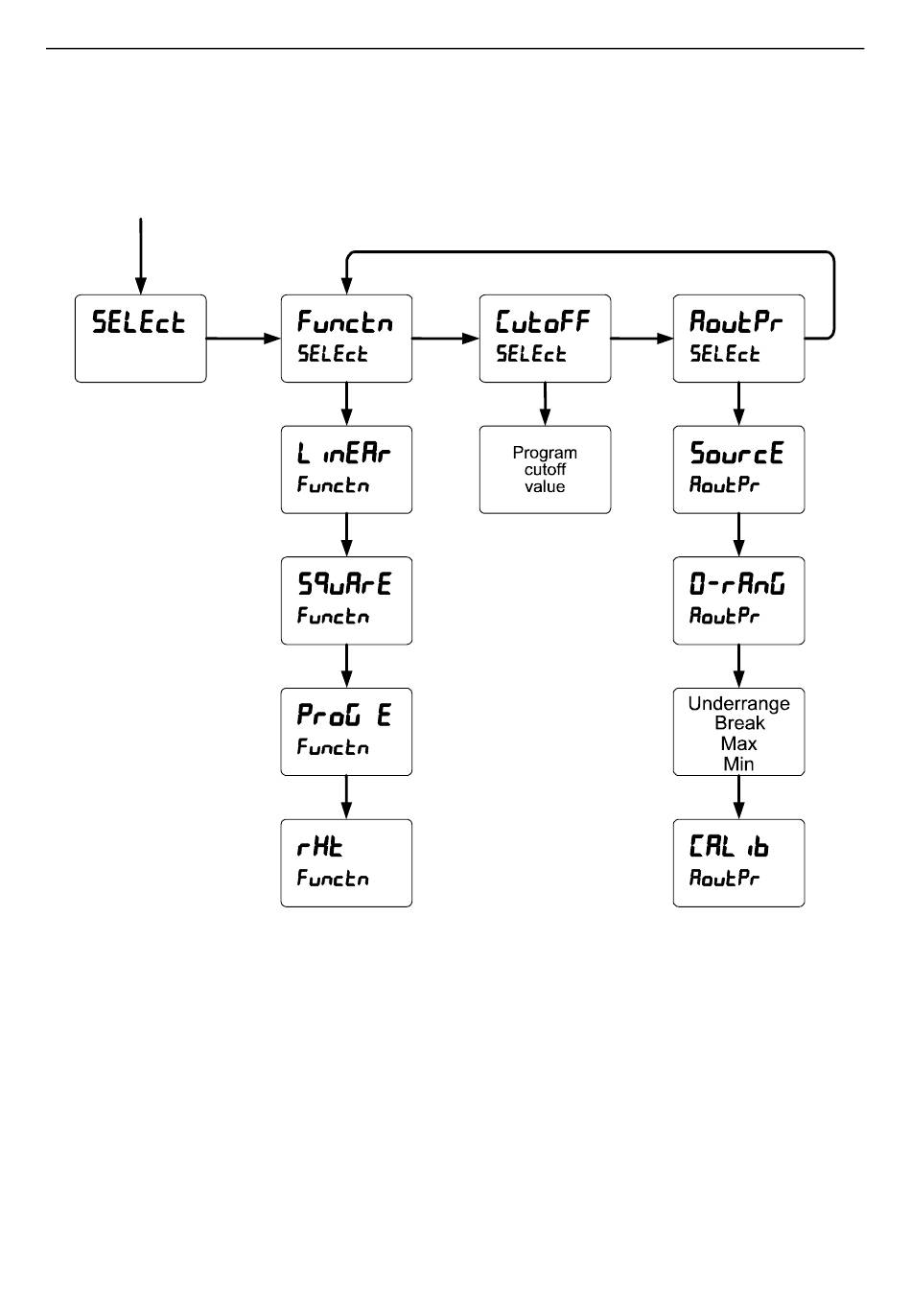

Select Menu ( SElEct )
The Select menu is used to select the signal input conditioner applied to the input
(linear, square root, programmable exponent, or round horizontal tank), low-flow
cutoff, and analog output programming. The multi-point linearization is part of the
linear function selection.
ENTER
Signal Input Conditioning ( Functn )
The Function menu is used to select the signal input conditioner
applied to the input: linear, square root, programmable exponent, or round
horizontal tank volume calculation. The multi-point linearization
is part of the linear function selection.
Meters are set up at the factory for linear function with 2-point linearization. The
linear function provides a display that is linear with respect to the input signal.
80
UP
ENTER
UP
UP
UP
Instruction Manual
UP
ENTER
UP
UP
UP
MN301033 Rev B1
UP
ENTER
